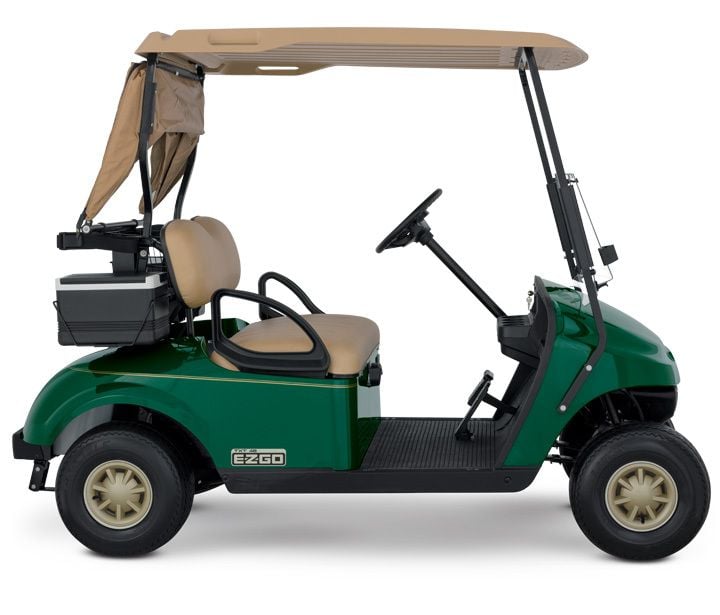

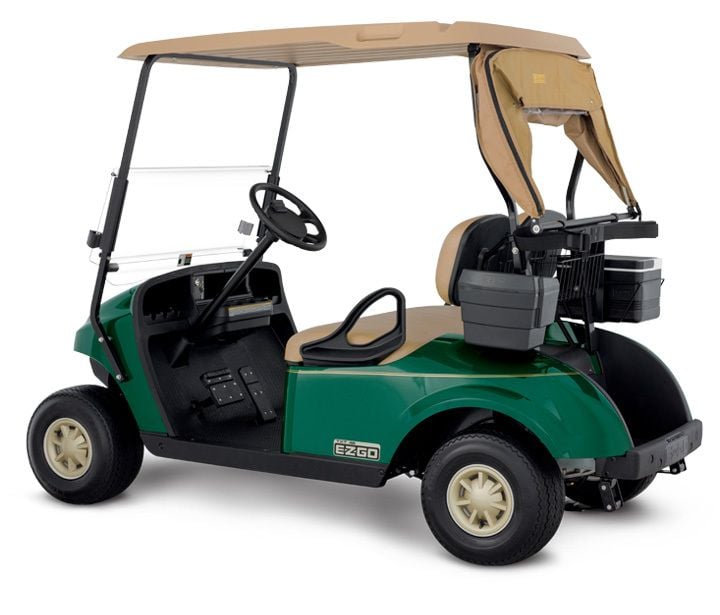

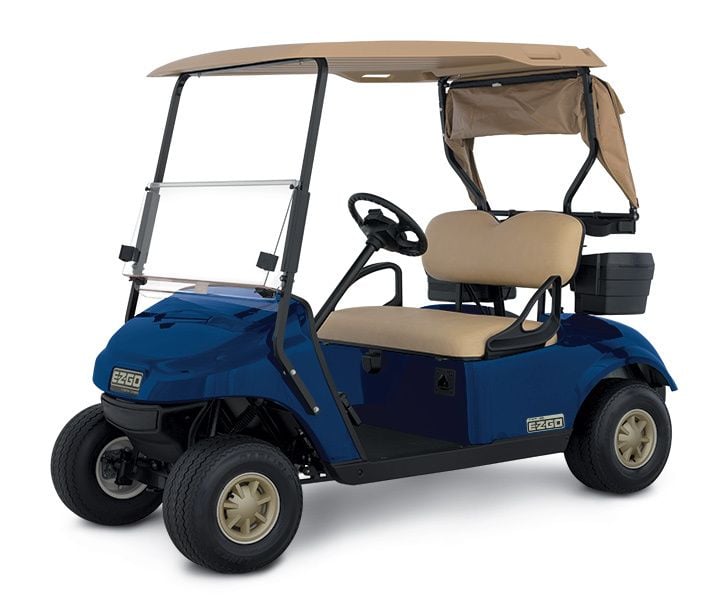

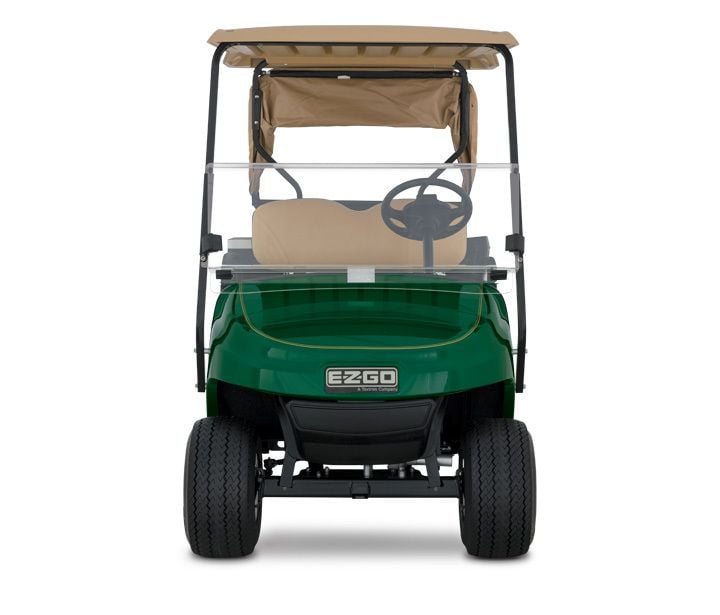

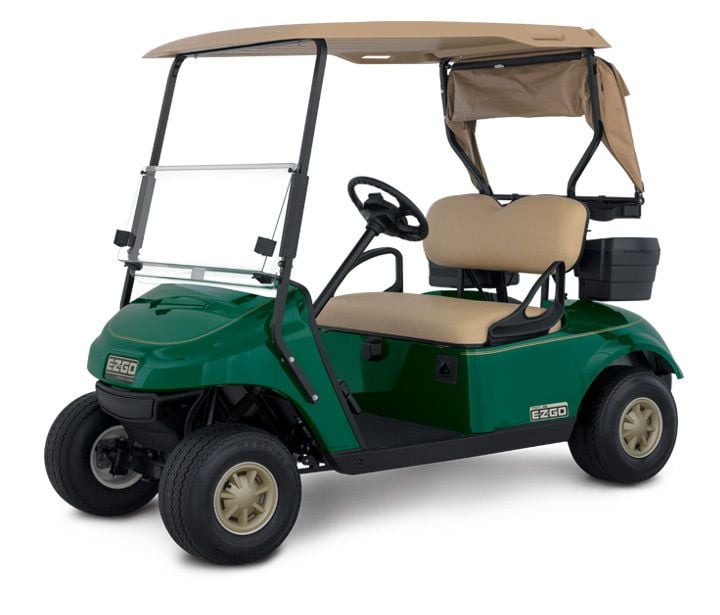

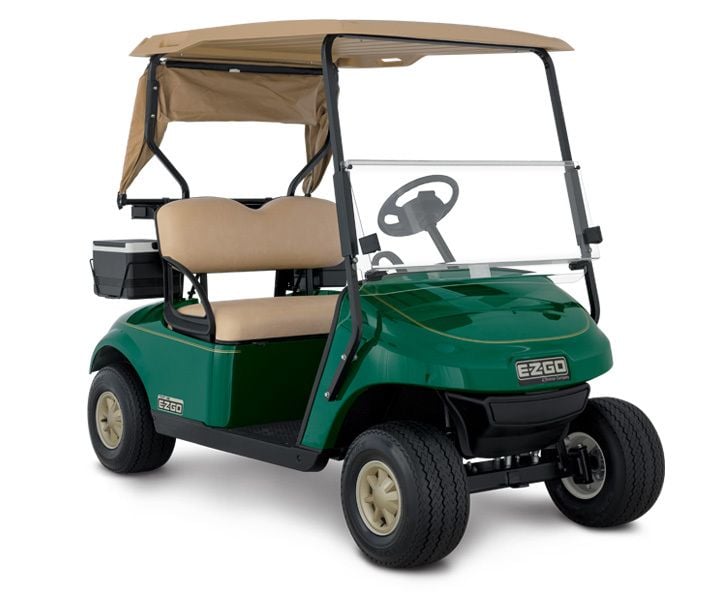

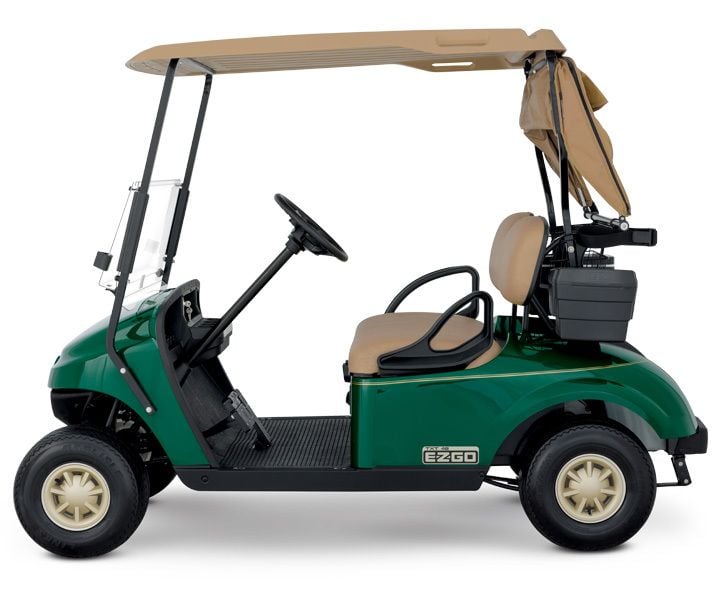

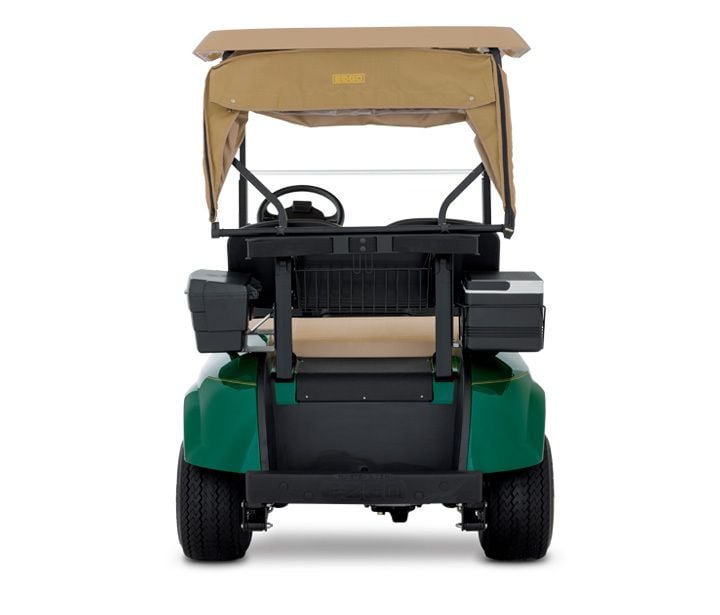

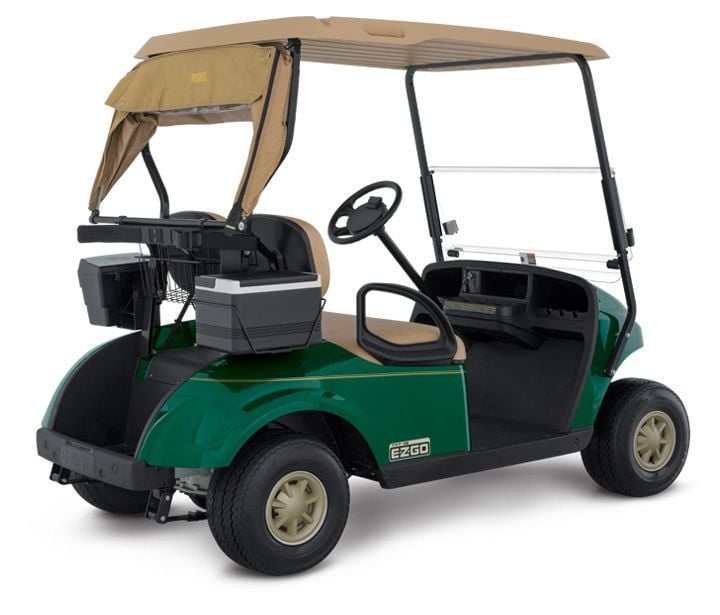

TXT Fleet - Petrol 13.5 hp
The E-Z-GO® TXT® golf car combines proven reliability with the industry's latest innovations to deliver a consistently smoother ride and greater energy efficiency. Featuring a 48-volt electric drivetrain and TruCourse Technology, it offers the perfect balance of performance and efficiency to your course.
Standard Features
- Kawasaki 13 hp Single Cylinder Petrol Engine,
- Top Assembly & Seating (Tan or Oyster)
- 1 x Sand Bottle
- Split Windshield
- Low Fuel/Oil Gauge
- Hour meter
- Scuff Guards
- Front Fascia
- Injection Moulded TPO Body finish
- Metallic Hubcaps ( Gold or Silver)
- Reverse Beeper
- Choice of Colour
Options/Accessories
- Club & ball washer
- Drinks Cooler Esky
- Message holder
- Rainbag Cover ( Tan or Oyster)
- Premium Mushroom Seats
- USB Port
Specifications
Dimensions
Overall Length: 236 cm
Overall Width: 119 cm
Overall Height (no canopy): 118 cm
Overall Height (with canopy): 171 cm
Wheel Base: 168 cm
Front Wheel Track: 86 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Power
Power Source: 4-Cycle 24.5 cu in (401cc) Low Emissions
Valve Train: Single-Cylinder OHV with Hemispheric Combustion Chamber
Horsepower: 13.5 hp (10.1kW) Exceeeds SAE J1940 Std
Electric System: Starter/Generator, Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Industrial Rated Dry Filter
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 20 Litre
Drive Train: Automatic, Continuously Variable Transmission (CVT)
Transaxle: Differential with helical gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: FWD - 11.42:1 REV -15.78:1
Battery Warranty: N/A
Key Switch: Unique Group, Unique Individual
Programmable Golf Modes: N/A
Altitude Settings: 3000 ft, 3000-6000 ft, 6000 - 10000 ft
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 344 Kg
Curb Weight: 354 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 29 kph ± 0.8 kph
Towing Capacity: 3 E-Z-GO Golf Cars with Approved permanent tow bar
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: Turf Tyres 18 x 8.5 - 8 (4 Ply Rated)
Body & Chassis
Frame: Welded steel with Durashield powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Ivory or Forest Green
Optional Colour: Almond, Black, Burgundy, Electric Blue, Flame Red,Inferno Red, Metallic Charcoal, Orange, Patriot Blue, Platinum, White
Standard Seat Colour: Oyster
Optional Seat Colours: Tan or Grey
Optional Seat Colours: Burgundy,Pewter, White, Black, Gold, Red
