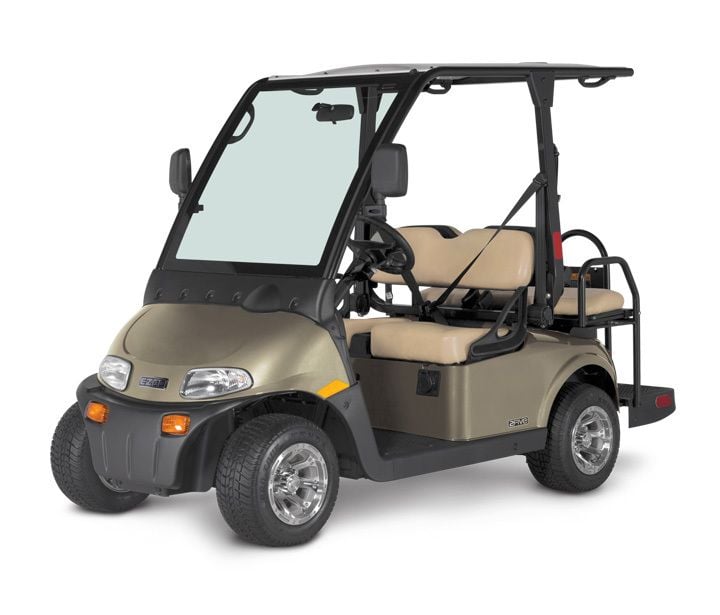

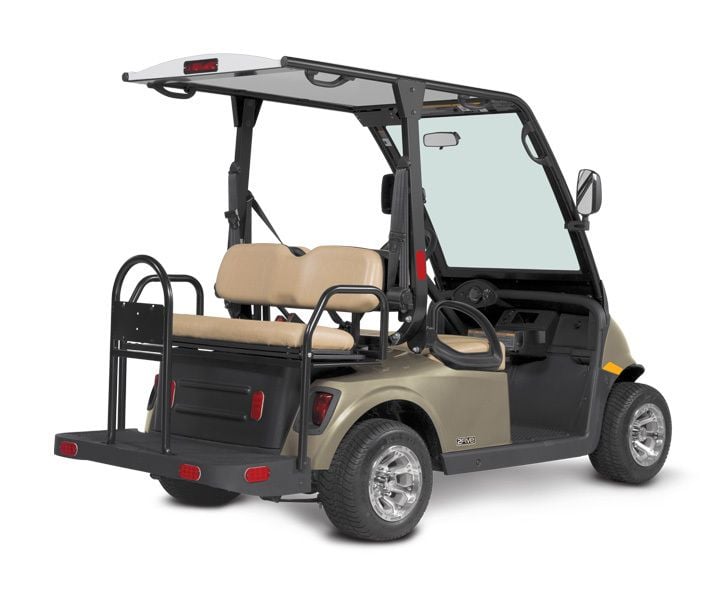

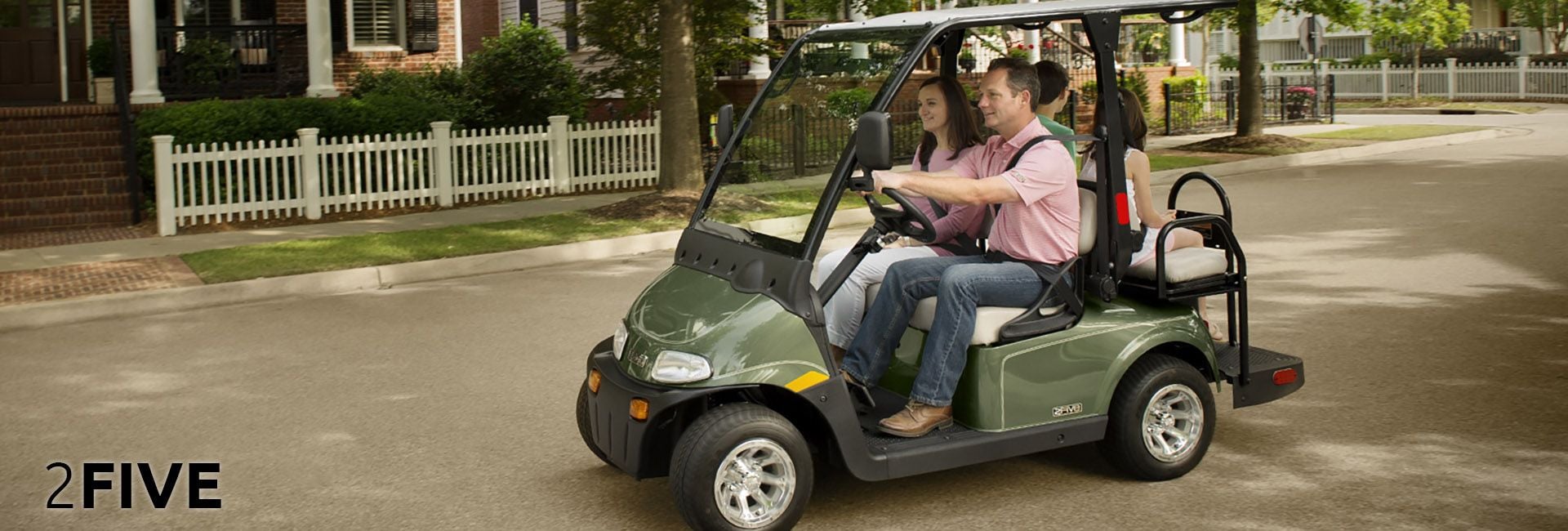

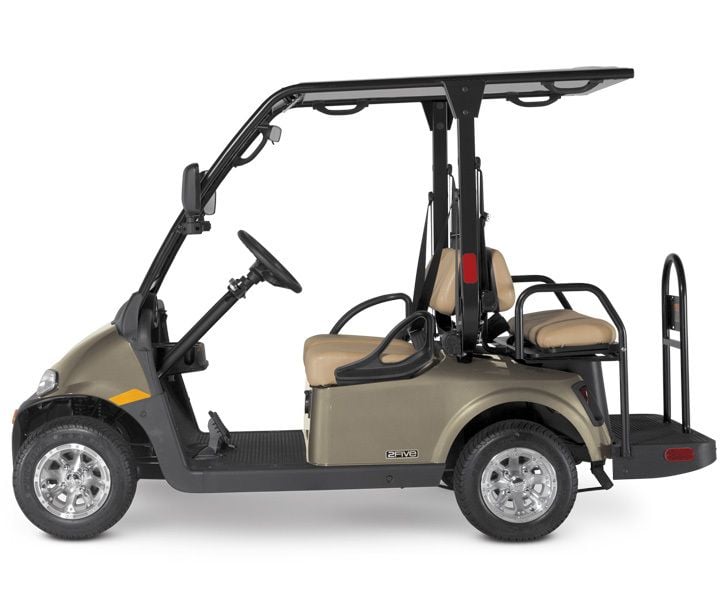

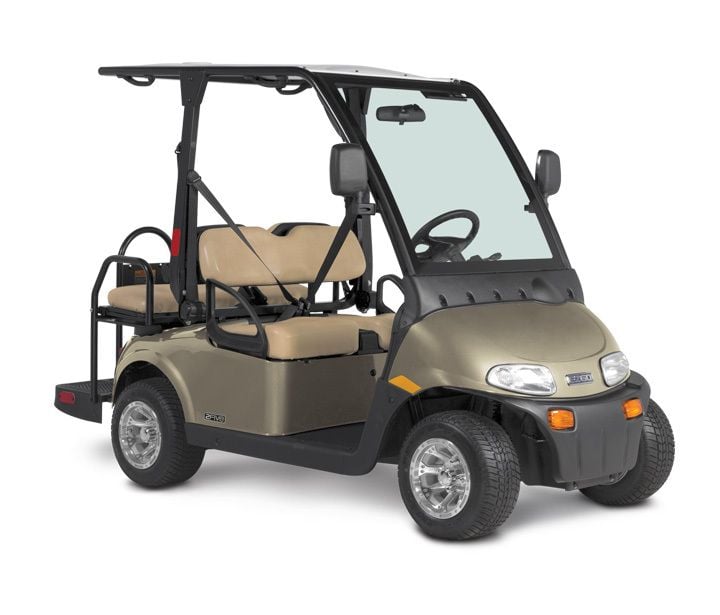

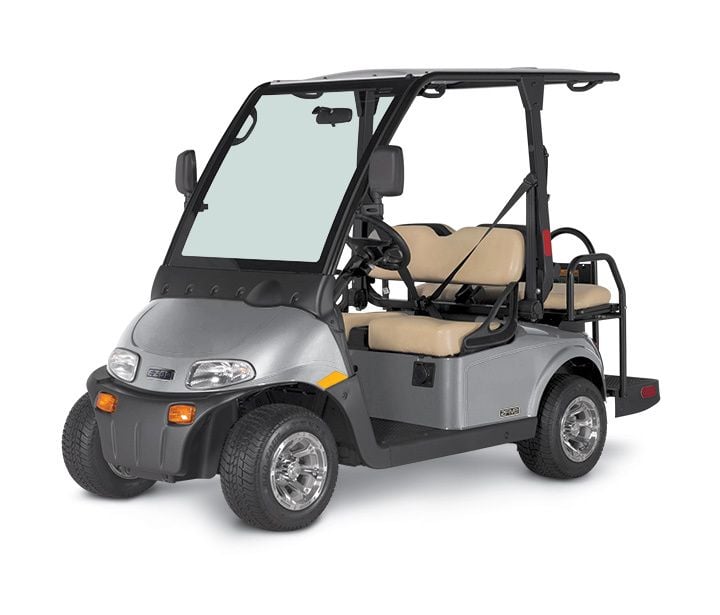

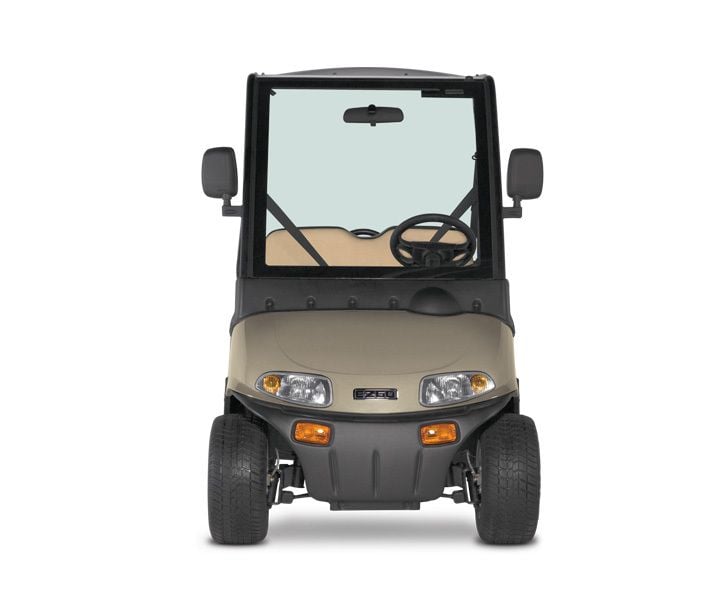

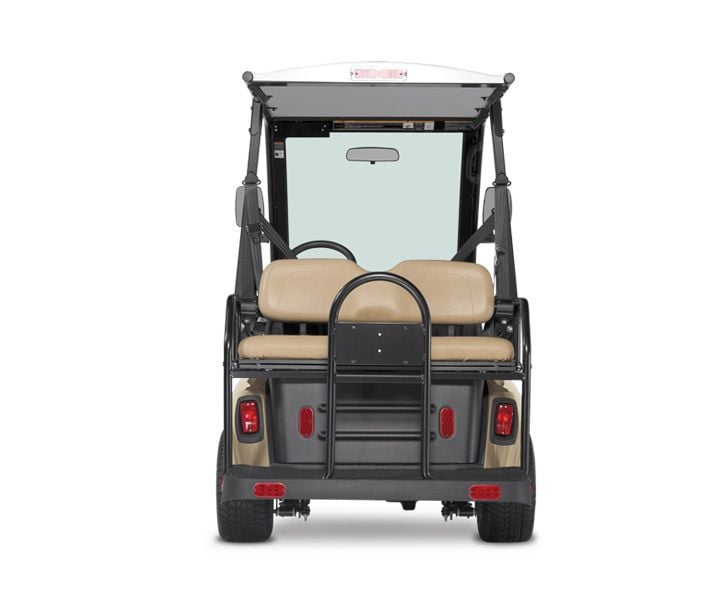

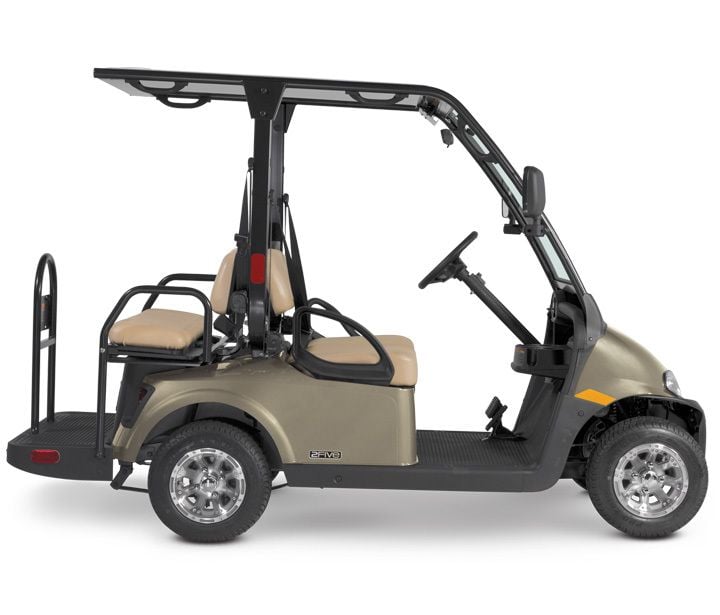

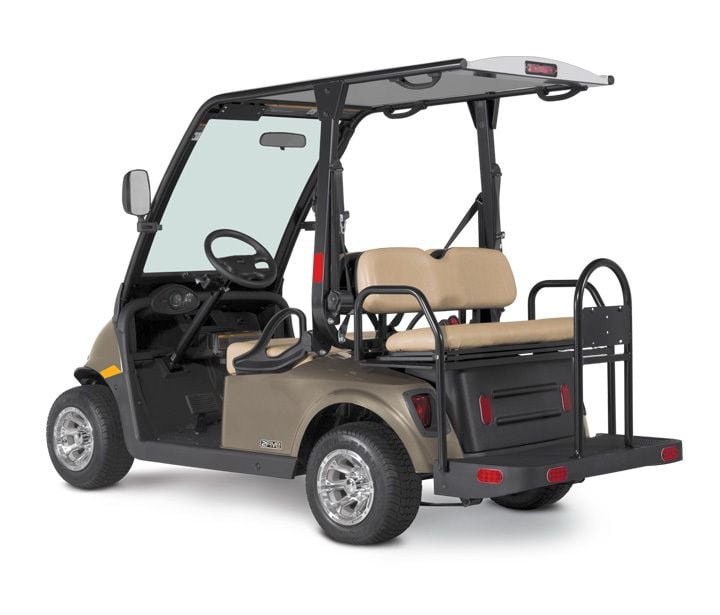

2FIVE - AC Electric 48v
Balance convenience, safety, and environmental responsibility in this LSV (low speed vehicle). Fully electric and featuring 3-point seat belts, a 12V adapter for your phone or mp3 player and plenty of storage, the 2Five® makes getting from school to practice and back home more efficient and more fun.
Standard Features
- 6 x Trojan T875 8v Deep Cycle Lead Acid Batteries
- 48v DC On-board Charger
- AC Motor
- White OPS (Operator Protective Structure) Rated Canopy
- Oyster or Stone Beige Bucket Seats
- Oyster or Stone Beige Fixed Rear Seat Kit
- Automotive Safety Glass Windshield (AS1)
- Dash-Mounted Speedometer, Odometer & State of Charge Meter
- Front Bumper/ Brush Guard
- Four-wheel Hydraulic Disc Brakes w/ Full-time Regenerative Braking
- Injection Moulded TPO Body finish
- DOT Street Legal 205-50-10 Radial Tires
- Three-point Seat Belts
- DC Converter
- Automatic Parking Brake
- Passenger Side Locking Glove Box
- Head, Tail & Brake Lights (With High Centre Mount Brake Light)
- Turn Signals
- USB/12 Volt Outlet
- Pin Stripping
- Driver Side Lockable Glove Box
- Integrated Rearview Mirror with Backup Camera
- Horn and Reverse Beeper
- Lighted License Plate Holder
- Backup Light Kit
- Rubber Floor Mat
- Two-speed Windshield Wiper Kit
- Choice of Colour
Options/Accessories
- Trunk Kit (Keyed to Match Glove Boxes)
- Battery Filling System with Nozzle
- Amber Strobe Light
- Lighted License Plate Holder
- Heater/Defroster
- All Weather Enclosures
- Stereo Sound System with Speakers,
- Amplifier and MP3 Player Connectivity
- Sweater Basket/Golf Bag Rack
- 2 Bag Golf attachment and Sand Bottle
Specifications
Dimensions
Overall Length: 272 cm
Overall Width: 120 cm
Overall Height (with canopy): 181 cm
Overall Height (with canopy and Strobe): 191 cm
Wheel Base: 167 cm
Front Wheel Track: 93 cm
Rear Wheel Track: 101 cm
Ground Clearance (at differential): 11 cm
Power
Power Source: 48 Volts DC
Motor Type: 48 Volts AC
Horsepower: 4.4 hp (3.3kW) Continuous
Electric System: 48 Volt
Battery (qty/type): Six, 8 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: Onboard 48 VDC
Speed Controller: 235 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Helical gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Speed Selection: Dash Mounted High - Low Switch
DC-DC Converter: 30 Amp Integrated into On-board Charger
Performance
Seating Capacity: 4 Person
Dry Weight (without battery): 396 Kg
Curb Weight: 544 Kg
Vehicle Load Capacity: 363 Kg
Outside Clearance Circle: 6m
High Speed (level ground): 40.2 kph ± 0.8 kph
Low Speed (level ground): 22.5 kph ± 0.8 kph
Steering & Suspension
Steering: Double-ended Rack and Pinion
Front Suspension: Independent A-arm with Coil Over Shock
Rear Suspension: Mono Leaf Springs with hydraulic Shock
Service Brake: 4 Wheel Hydraulic Disc Brakes with Full Time Regenerative Braking
Parking Brake: Spring Applied Electro magnetic
Tyres: DOT Street Legal 205 - 50 - 10 Radial
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded with Automotive Paint
Rear Body & Finish: Injection Moulded with Automotive Paint
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Patriot Blue, Platinum, White
Standard Seat Colour: Stone Beige or Oyster
