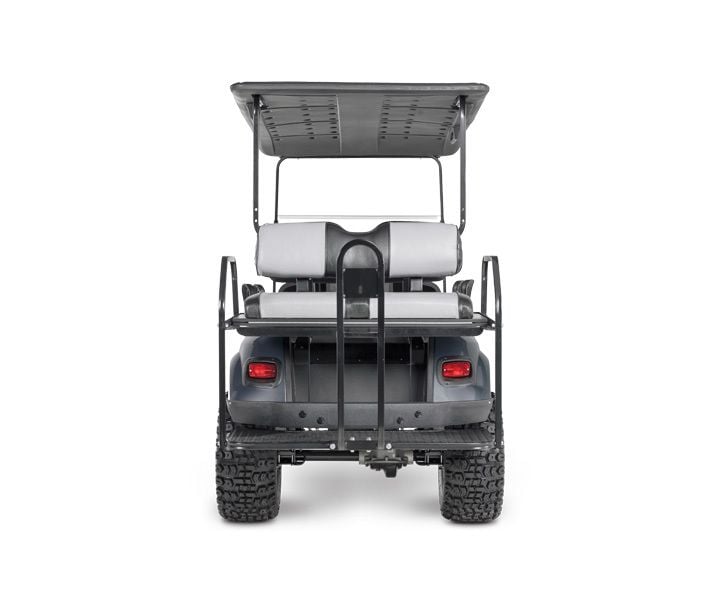

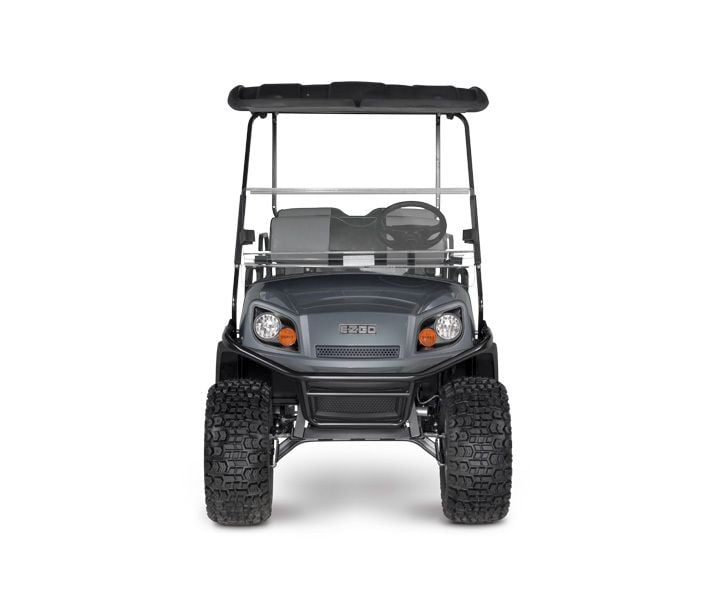

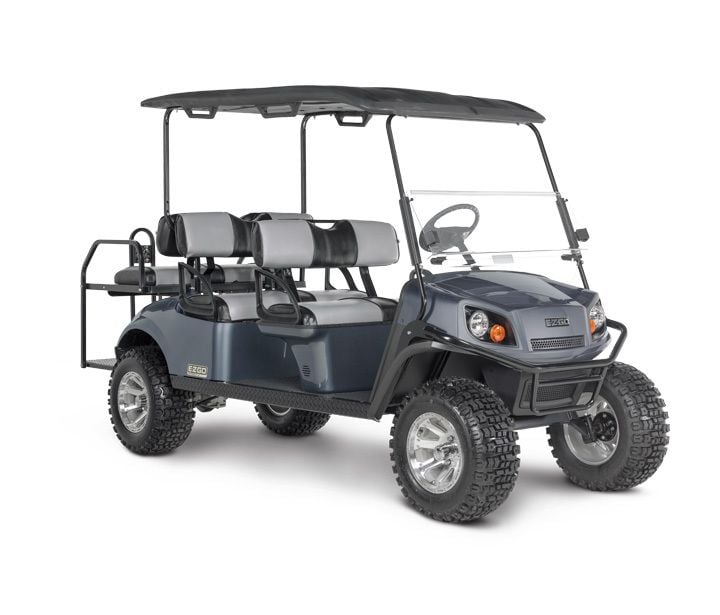

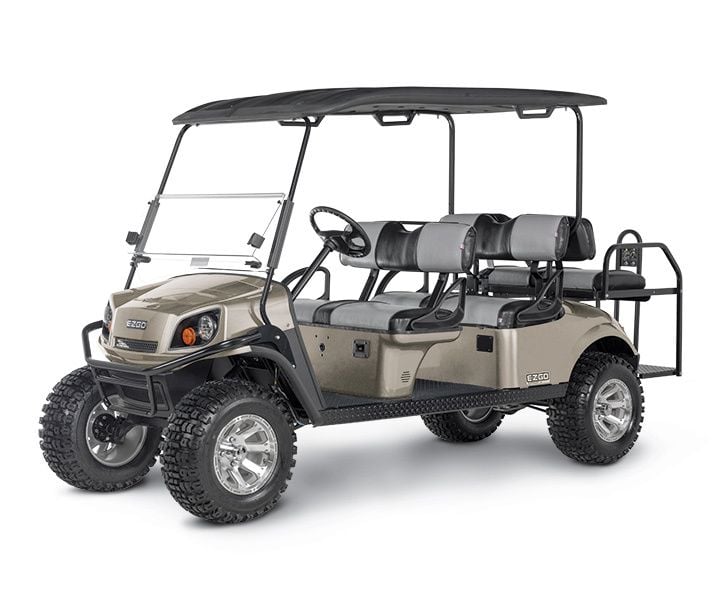

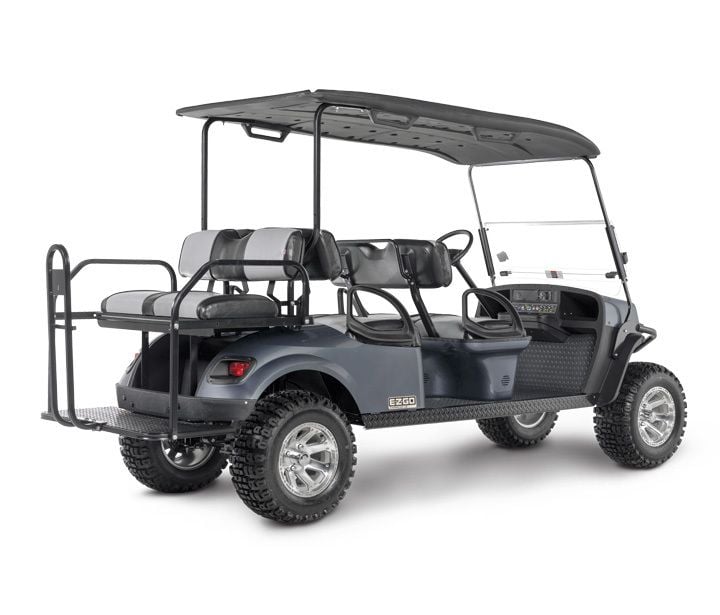

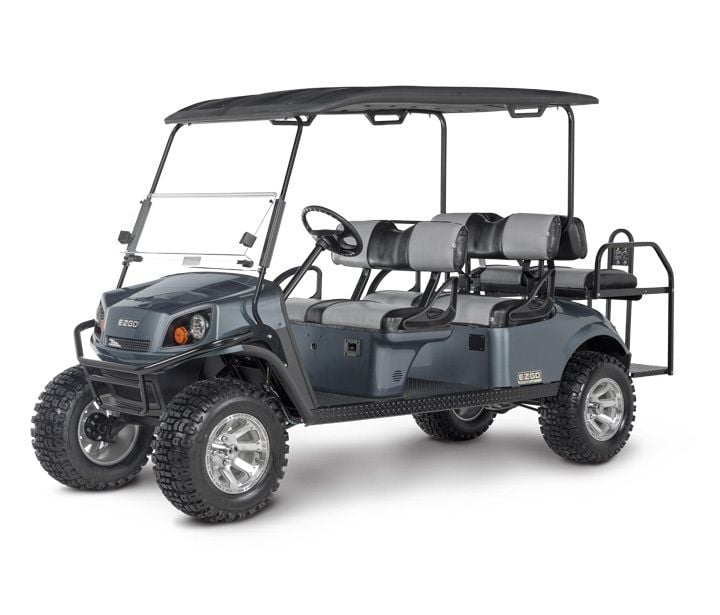

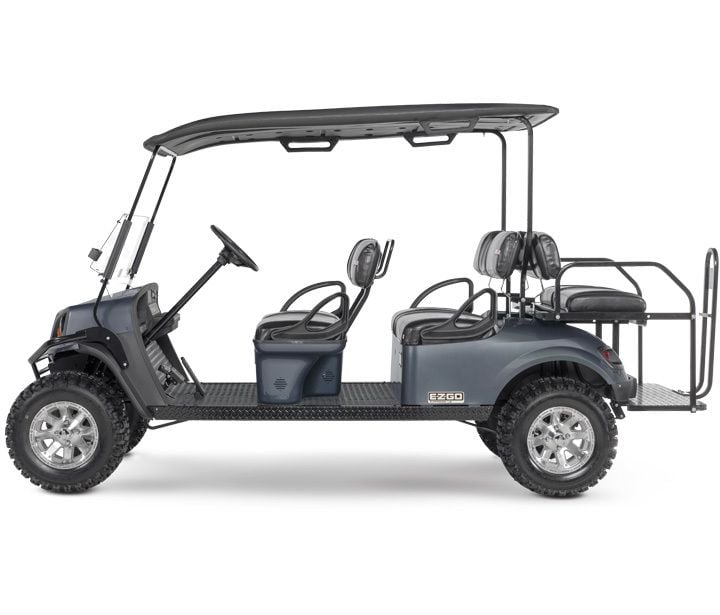

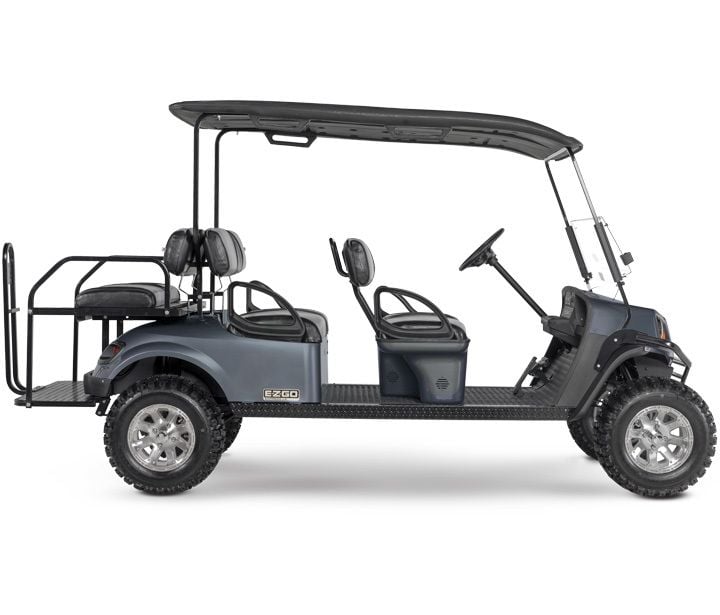

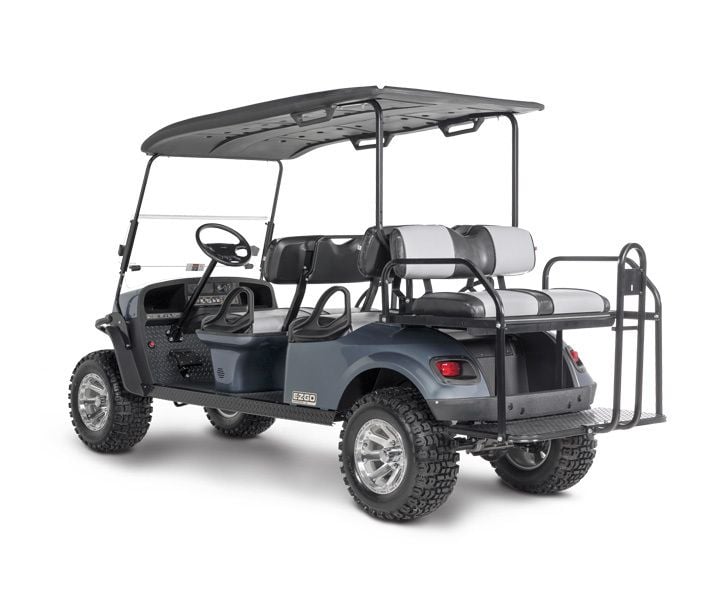

Express L6 - Electric 72v

It's time to get away, time to explore and see what adventures you can find along the next path. With eco-friendly powertrain options, rugged tires, and higher ground clearance, the Express L6 gives you a smooth and stylish ride. The new 72-volt AC powertrain offers enhanced power and efficiency, whether it's camping with the family or exploring a new trail with friends, let the Express L6 take you there

Standard Features

  • 6 x Trojan T1275 12v Deep Cycle Lead Acid Batteries
  • 72 V Delta Q DC Onboard 1500 Watt Charger
  • AC Motor
  • Raised Suspension
  • Oyster, Black or Tan Extended Top Assembly
  • Oyster, Black, Tan or Two-toned Seats with 4 Caddi Flip Flop Rear Seat Kit
  • Split Windshield
  • State of Charge Meter
  • Hour Meter
  • Front Bumper/ Brush Guard
  • Injection Moulded TPO Body finish
  • Desert Eagle 23 x 10 - 14 on Spartan Wheel
  • Unique Key switch
  • Tail & Brake Lights
  • Turn Signals
  • USB/12 Volt Outlet
  • Rabbit/Turtle Speed Switch
  • DC Converter
  • Limited Slip Differential
  • Comfort Grip Steering Wheel
  • High Output LED Headlights
  • Horn and Reverse Beeper
  • Choice of Colour

Options/Accessories

  • All Weather enclosures ( Clear or Tinted)
  • Woodside Stake Cargo Bed ( Replaces rear facing seat)
  • Roto-molded plastic bed (replaces rear-facing seat)
  • (BFS) Battery Watering System
  • 2 Inch (5cm) Front Hitch Receiver
  • Trail Tyres

Specifications

Dimensions

Overall Length: 334 cm
Overall Width: 125 cm
Overall Height (no canopy): 133 cm
Overall Height (with canopy): 197 cm
Wheel Base: 245 cm
Front Wheel Track: 98 cm
Rear Wheel Track: 99 cm
Ground Clearance (at differential): 18 cm

Power

Power Source: 72 Volts AC
Motor Type: AC Induction
Horsepower (kW): 22.4 HP (16.7kW)
Electric System: 72 Volt
Battery (qty/type): Six, 12 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 72 V DC Delta Q, 120/230 VAC, UL & CSA
Speed Controller: 350 Amp AC
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1

Performance

Seating Capacity: 4/6 Person
Dry Weight (without battery): 485 Kg
Curb Weight: 708 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 7.8 m
High Speed (level ground): 26 kph ± 0.8 kph
Low Speed (level ground): 19.3 kph ± 0.8 kph

Steering & Suspension

Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Tyres: Desert Eagle 23 x 10 - 14 on Alloy Wheel

Body & Chassis

Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal,Patriot Blue, Platinum, White, Jacobsen Orange
Standard Seat Colour: Red on Black
Optional Seat Colours: Black, Tan, Oyster, Grey on Black, White on Blue, White on Red
