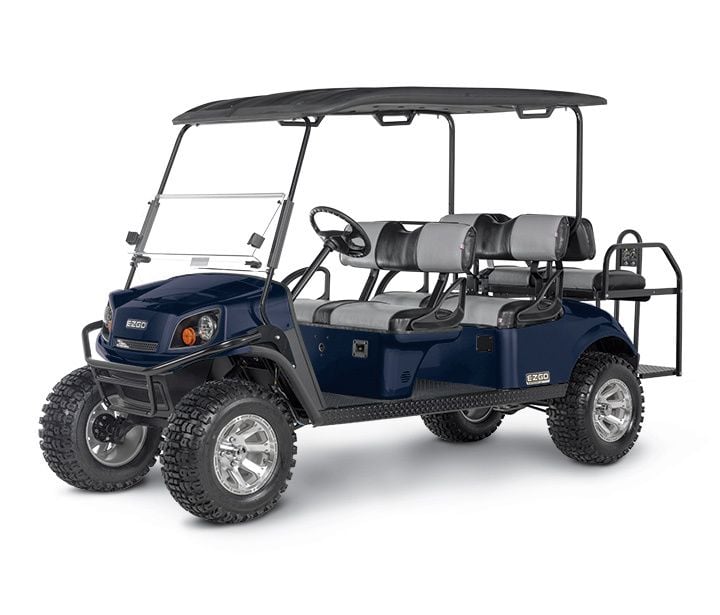

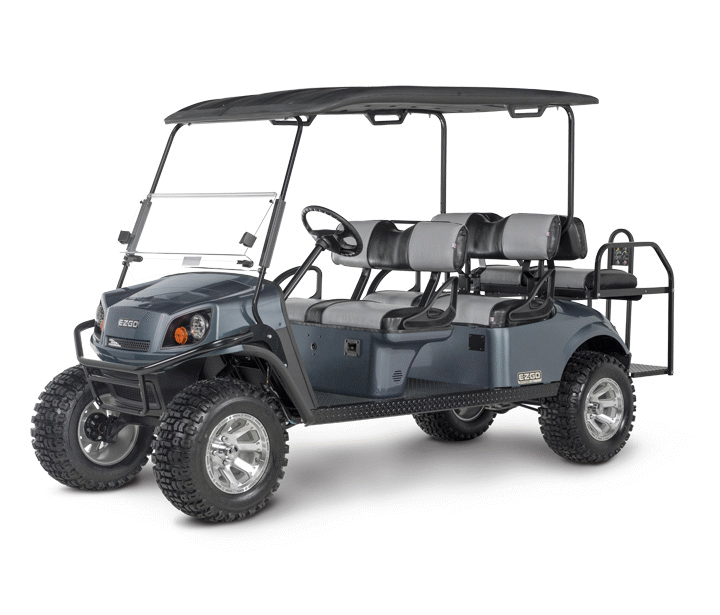

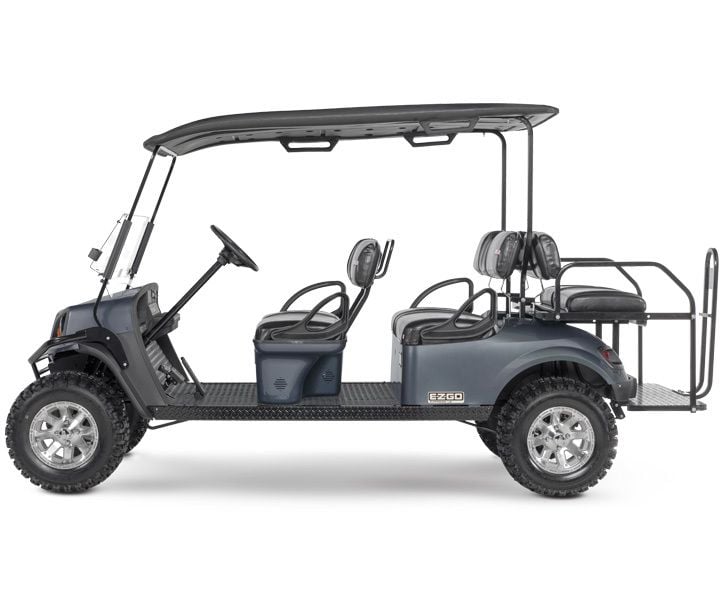

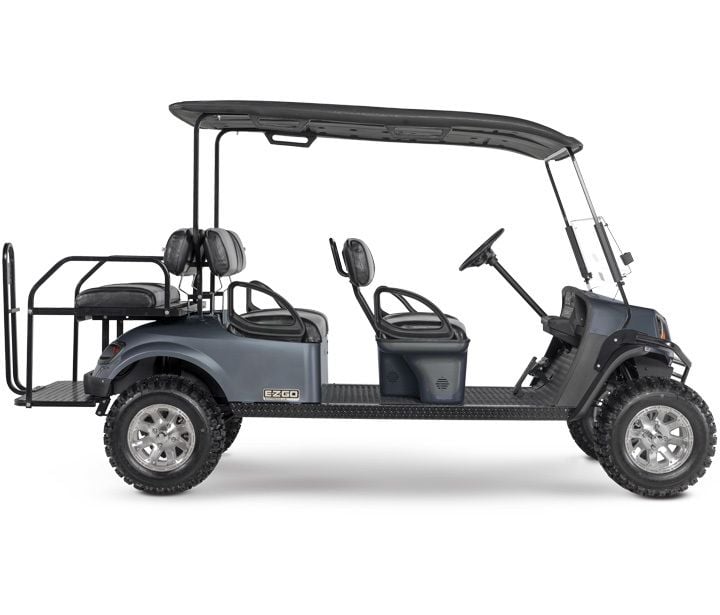

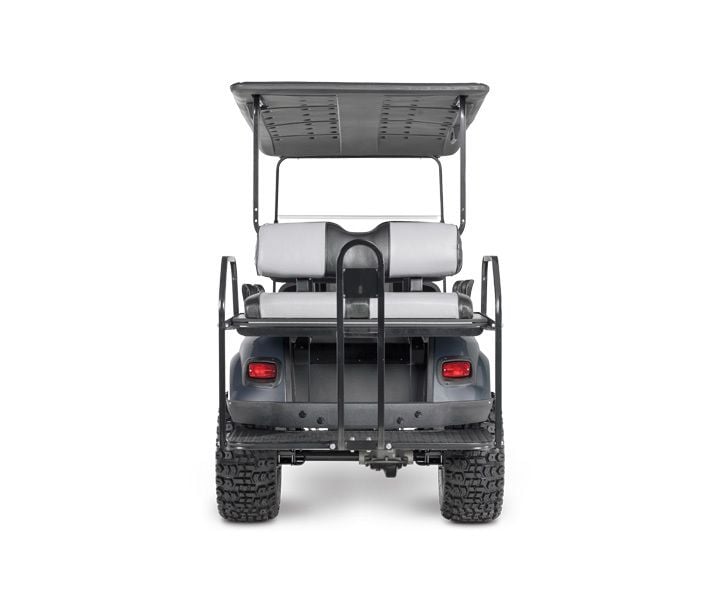

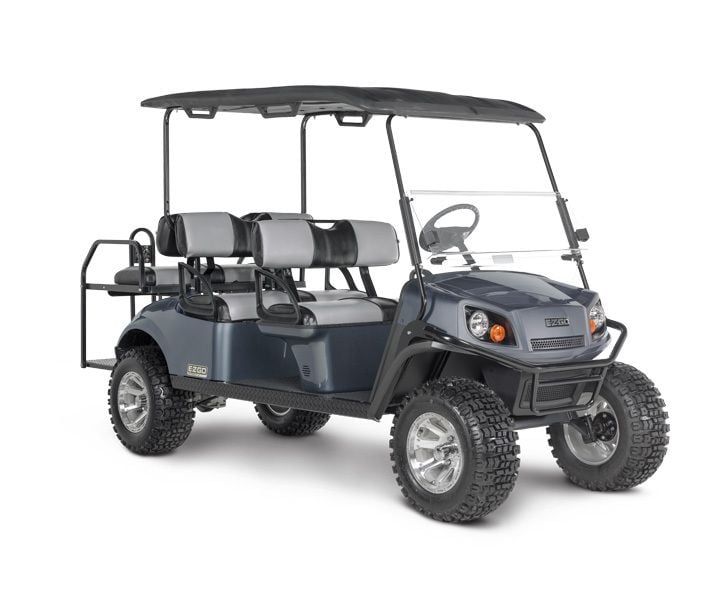

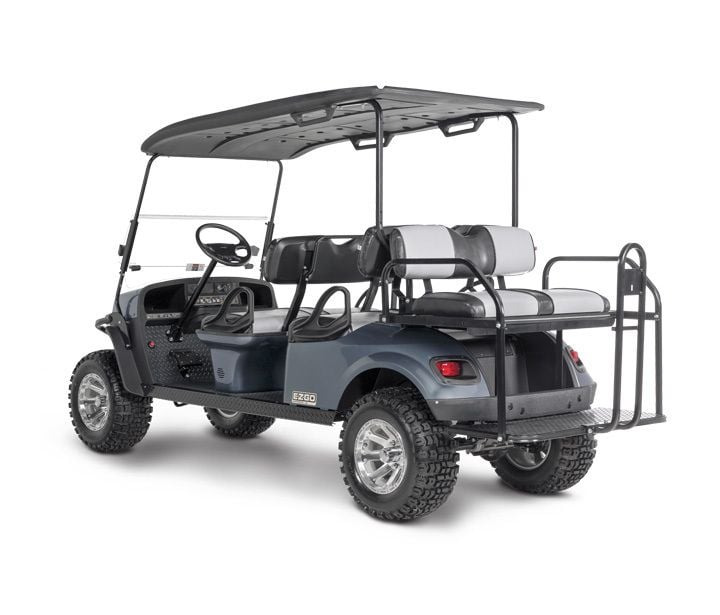

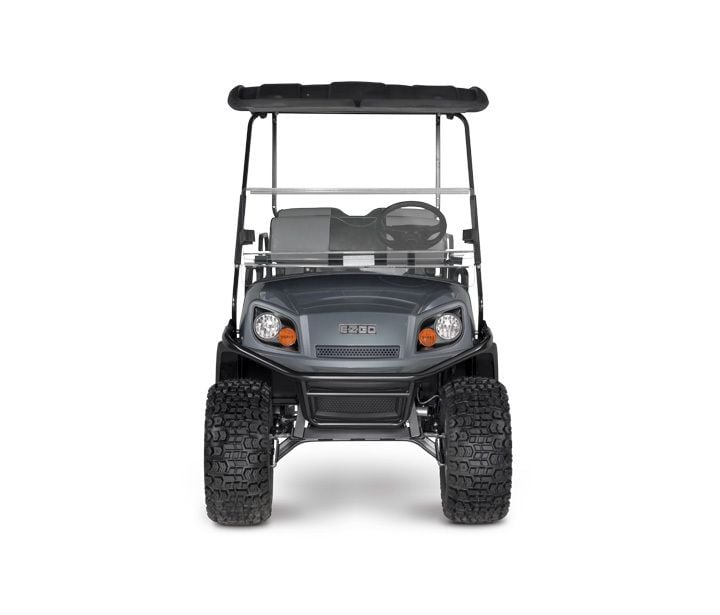

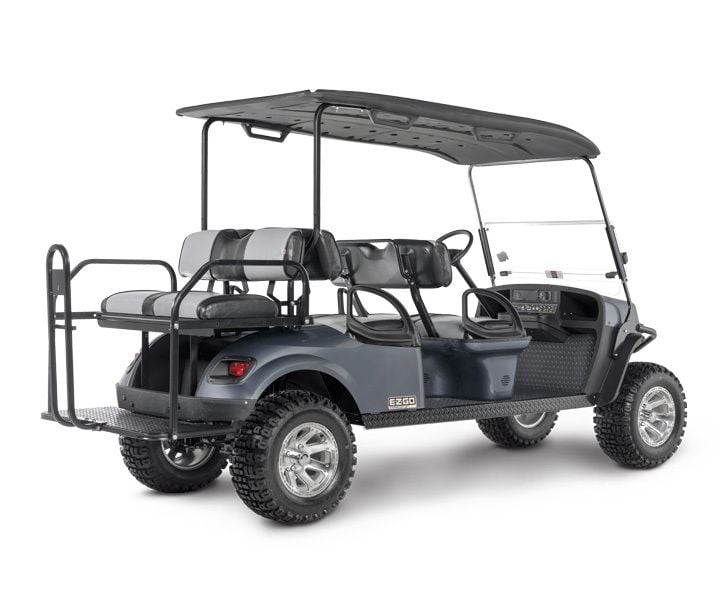

Express L6 - Petrol 13.5 hp
It's time to get away, time to explore and see what adventures you can find along the next path. With eco-friendly powertrain options, rugged tires, and higher ground clearance, the Express L6 gives you a smooth and stylish ride. The new 72-volt AC powertrain offers enhanced power and efficiency, whether it's camping with the family or exploring a new trail with friends, let the Express L6 take you there
Standard Features
- Kawasaki 13 hp Single Cylinder Petrol Engine
- Raised Suspension
- Oyster, Black or Tan Extended Top Assembly
- Oyster, Black, Tan or Two-toned Seats with 4 Caddi Flip Flop Rear Seat Kit
- Split Windshield
- Low Fuel/Oil Guage
- Hour Meter
- Front Bumper/ Brush Guard
- Injection Moulded TPO Body finish
- Desert Eagle 23 x 10 - 14 on Spartan Wheel
- Unique Key switch
- Tail & Brake Lights
- Turn Signals
- USB/12 Volt Outlet
- Limited Slip Differential
- Comfort Grip Steering Wheel
- High Output LED Headlights
- Horn and Reverse Beeper
- Choice of Colour
Options/Accessories
- All Weather enclosures ( Clear or Tinted)
- Woodside Stake Cargo Bed ( Replaces rear facing seat)
- Roto-molded plastic bed (replaces rear-facing seat)
- 2 Inch (5cm) Front Hitch Receiver
- Trail Tyres
Specifications
Dimensions
Overall Length: 364 cm
Overall Width: 125 cm
Overall Height (no canopy): 136 cm
Overall Height (with canopy): 200cm
Wheel Base: 240 cm
Front Wheel Track: 98 cm
Rear Wheel Track: 99 cm
Ground Clearance (at differential): 15 cm
Power
Power Source: 4 Cylce 24.5 cu in (401 cc). Low Emissions
Valve Train: Single Cylinder OHV
Horsepower (kW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std
Electric System: Starter/Generator. Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner : Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22 Litre Tank
Drive Train : Continuously Variable Transmission (CVT)
Transaxle : Differential with helical Gears
Gear Selection: Forward - Reverse
Rear Axle Ratio: 11.42:1 ( Forward) 15.78:1 ( Reverse)
Performance
Seating Capacity: 4/6 Person
Dry Weight (without battery): 482 Kg
Curb Weight: 504 Kg
Vehicle Load Capacity: 540 Kg
Outside Clearance Circle: 7.8 m
High Speed (level ground): 26 kph ± 0.8 kph
Low Speed (level ground): N/A
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Tyres: All-Terrain 23 x 10 - 12 , On Alloy Wheel
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal,Patriot Blue, Platinum, White, Jacobsen Orange
Standard Seat Colour: Red on Black
Optional Seat Colours: Black, Tan, Oyster, Grey on Black, White on Blue, White on Red
Overall Length: 364 cm
Overall Width: 125 cm
Overall Height (no canopy): 136 cm
Overall Height (with canopy): 200cm
Wheel Base: 240 cm
Front Wheel Track: 98 cm
Rear Wheel Track: 99 cm
Ground Clearance (at differential): 15 cm
Power
Power Source: 4 Cylce 24.5 cu in (401 cc). Low Emissions
Valve Train: Single Cylinder OHV
Horsepower (kW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std
Electric System: Starter/Generator. Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner : Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22 Litre Tank
Drive Train : Continuously Variable Transmission (CVT)
Transaxle : Differential with helical Gears
Gear Selection: Forward - Reverse
Rear Axle Ratio: 11.42:1 ( Forward) 15.78:1 ( Reverse)
Performance
Seating Capacity: 4/6 Person
Dry Weight (without battery): 482 Kg
Curb Weight: 504 Kg
Vehicle Load Capacity: 540 Kg
Outside Clearance Circle: 7.8 m
High Speed (level ground): 26 kph ± 0.8 kph
Low Speed (level ground): N/A
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Tyres: All-Terrain 23 x 10 - 12 , On Alloy Wheel
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal,Patriot Blue, Platinum, White, Jacobsen Orange
Standard Seat Colour: Red on Black
Optional Seat Colours: Black, Tan, Oyster, Grey on Black, White on Blue, White on Red
