Dimensions

Overall Length: 236 cm
Overall Width: 119 cm
Overall Height (no canopy): 119 cm
Overall Height (with canopy): 174 cm
Wheel Base: 168 cm
Front Wheel Track: 88 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 8 cm

Power

Power Source: 4-Cycle 24.5 cu in (401cc) Low Emissions
Valve Train: Single-Cylinder OHV with Hemispheric Combustion Chamber
Horsepower: 13.5 hp (10.1kW) Exceeeds SAE J1940 Std
Electric System: Starter/Generator, Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Industrial Rated Dry Filter
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 20 Litre
Drive Train: Automatic, Continuously Variable Transmission (CVT)
Transaxle: Differential with helical gears
Gear Selection: Forward-Reverse
Rear Axle Ratio:  FWD - 11.42:1    REV -15.78:1
Programmable Golf Modes: N/A


Performance

Seating Capacity: 2 Person
Dry Weight (without battery): 320 Kg
Curb Weight: 340 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 31 kph ± 0.8 kph
Towing Capacity: 3 E-Z-GO Golf Cars with Approved permanent tow bar

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: Turf Tyres 18 x 8.5 - 8 (4 Ply Rated)

Body & Chassis

Frame: Welded steel with Durashield powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO

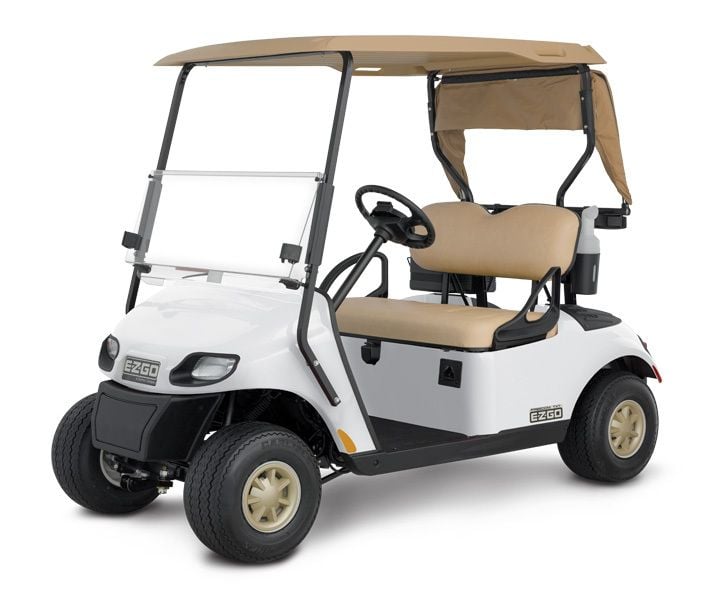

Optional Colour: Almond, Black, Burgundy, Electric Blue, Flame Red,Inferno Red, Metallic Charcoal, Orange, Patriot Blue, Platinum, White
Available Seat Colours: Oyster, Tan or Grey
