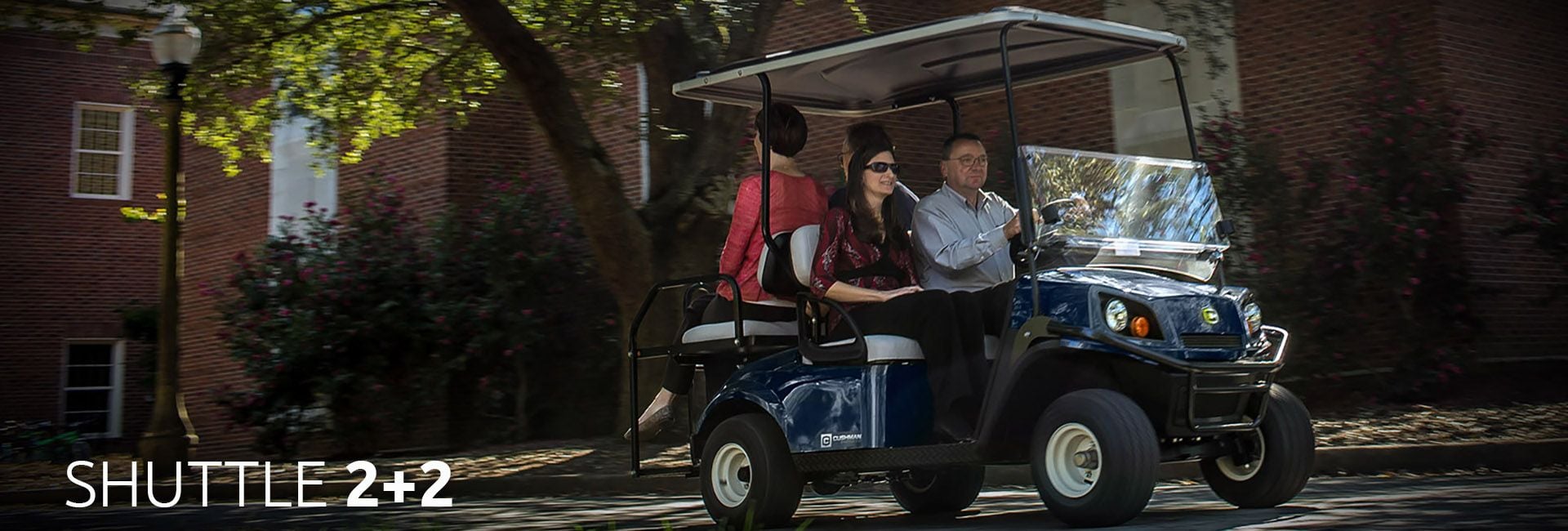

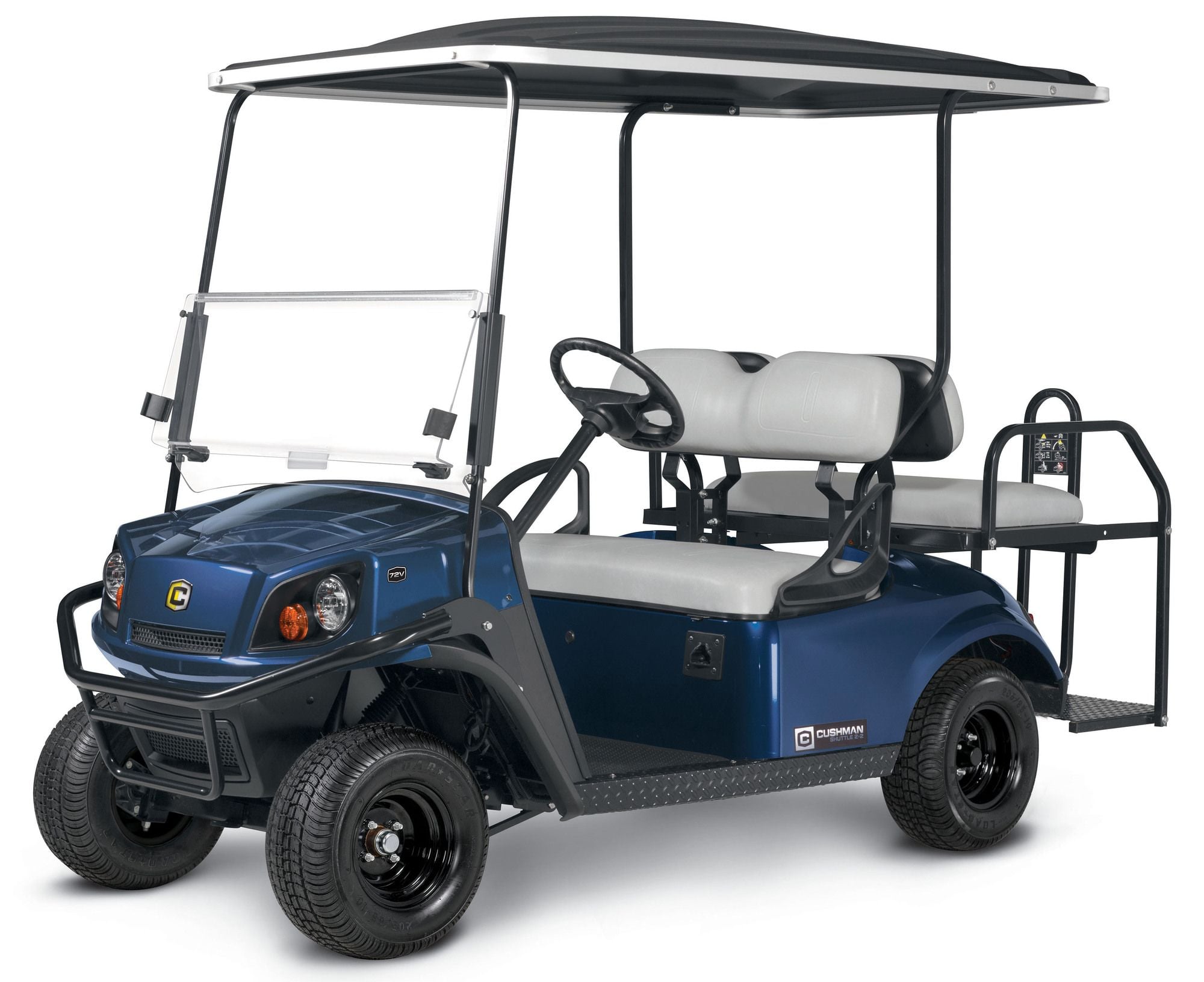

Shuttle 2+2 - 72v AC Electric

Versatility rules the day with the Shuttle 2+2 personnel carrier. With a rear seat that converts to a flat cargo area, you can haul guests, gear and everything in between. Standard headlights and brush guard keep you prepared for whatever the day holds.

Standard Features

  • 6x 12v Trojan T1275 Deep Cycle Lead Acid Batteries
  • 72V DC Delta Q 1500 Watt Lightweight Portable Charger
  • AC Motor
  • 4 Seater vehicle with Rear Flip Flop Seat ( Tan, Oyster or Black)
  • Top Assembly ( Black, Tan or Oyster)
  • State of Charge Meter
  • LED Headlights, Tail & Brake Lights
  • Turn Signals
  • Hour Meter
  • DC Converter
  • Limited Slip Differential
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • Split Windshield
  • Front Bumper/Brush Guard
  • Rabbit/ Turtle Speed Switch
  • USB Outlet
  • Comfort Grip Steering Wheel
  • Choice of Colours

Options/Accessories

  • All Weather Enclosure
  • 12 Volt Outlet
  • Rotating Strobe Light
  • Locking Glove Box Door
  • Rear view Mirrors
  • Maintenance Free Gel Batteries
  • BFS Battery Filling System
  • Mag Wheels

Specifications

Dimensions

Overall Length: 275.6 cm
Overall Width: 125.7 cm
Overall Height (with canopy): 196.9 cm
Wheel Base: 237 cm
Front Wheel Track: 87.6 cm
Rear Wheel Track: 97.8 cm
Ground Clearance (at differential): 14.6 cm
Load Deck Width: 101.6 cm
Load Deck Length: 81.3 cm


Power

Powertrain: 72 Volts DC
Motor Type: AC Induction
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 72 Volt
Battery (qty/type): Six, 12 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Speed Controller: 350 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Key Operated Forward-Neutral-Reverse
Rear Axle Ratio: 17:1



Performance


Seating Capacity: 4 Person
Dry Weight (without battery): 360.2 Kg
Curb Weight: 575.2 Kg
Vehicle Load Capacity: 362.9Kg
Bed Load Capacity: 113.4 Kg
Outside Clearance Circle: 5.8 m
Speed (level ground):  22.5 kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 20 - 8 - 10 (6 Ply Rated)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded TPO
Standard Colour: Patriot Blue
Optional Colour: Almond, Black, Electric Blue, Flame Red, Ivory, White, Safety Yellow, Forest Green, Platinum, Metallic Charcoal, Sunburst Orange
Available Seat Colours: Grey
