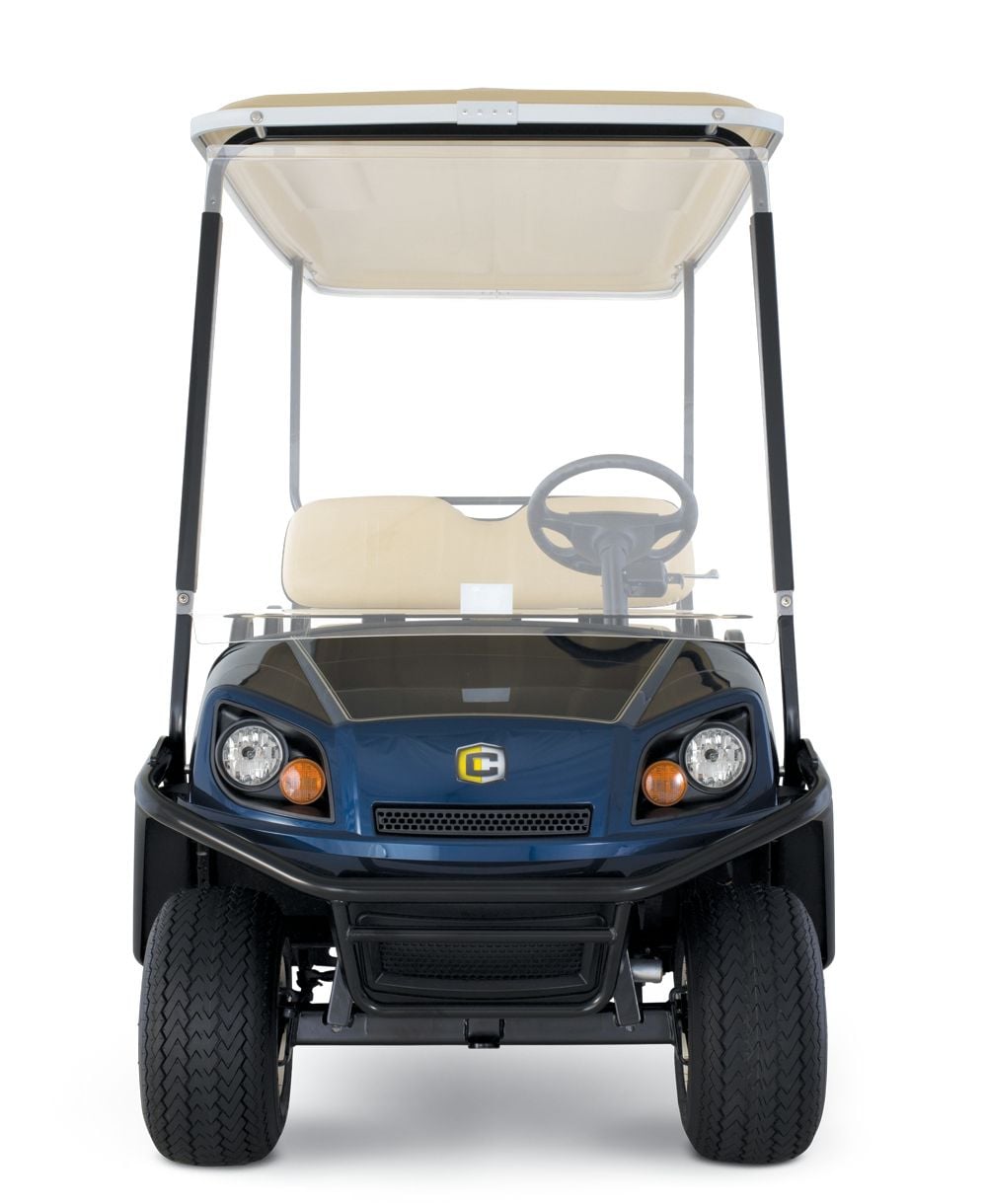

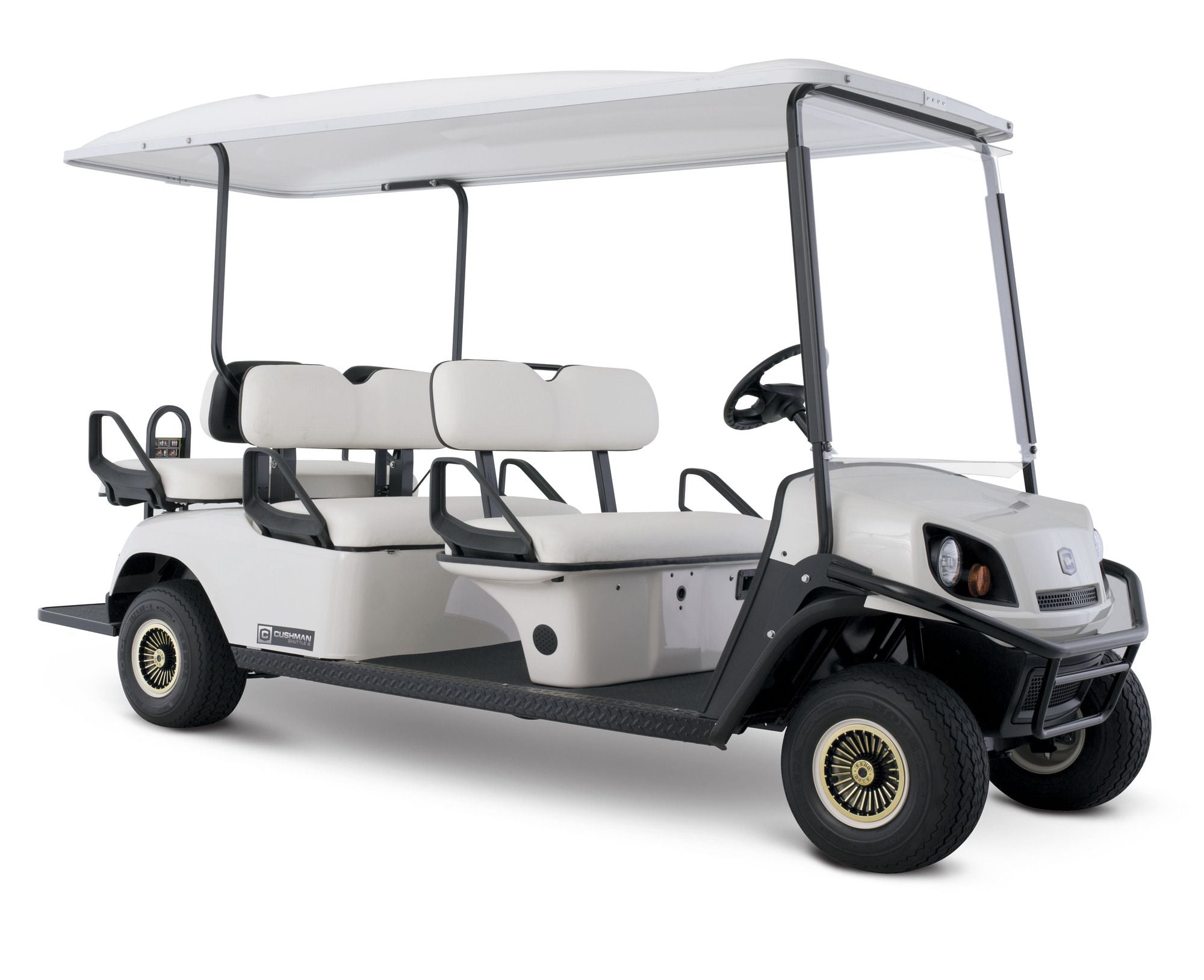

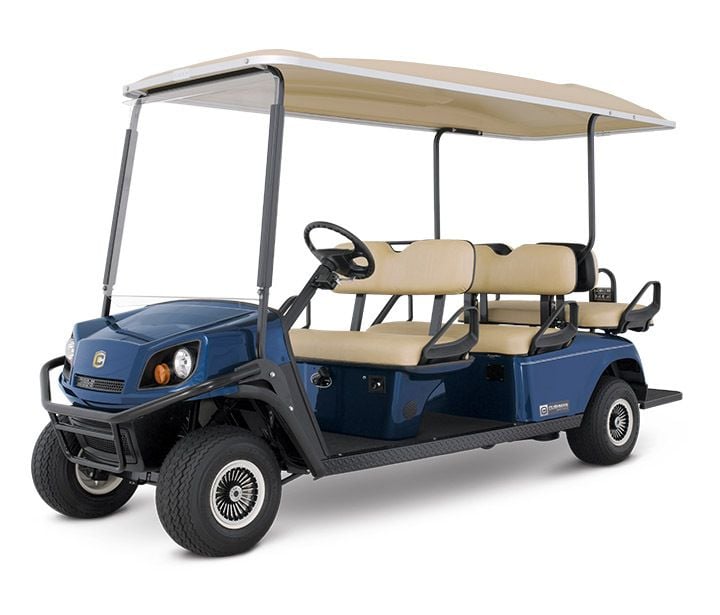

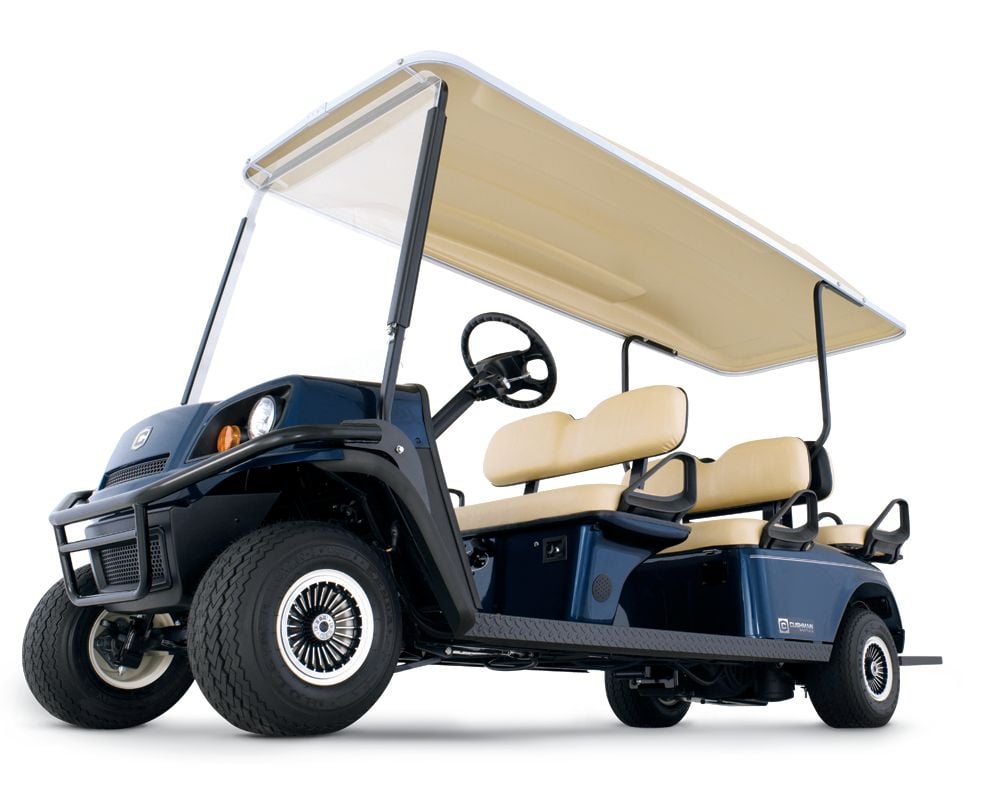

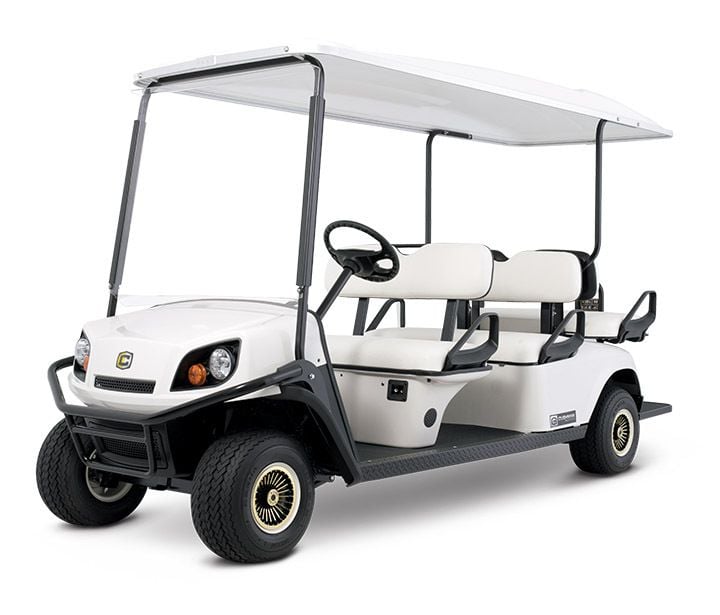

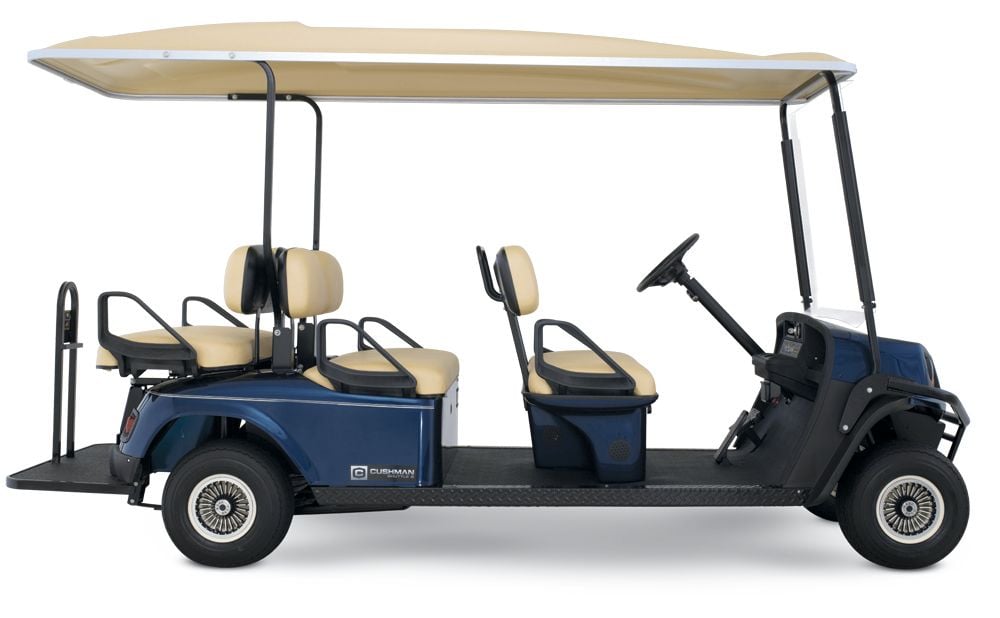

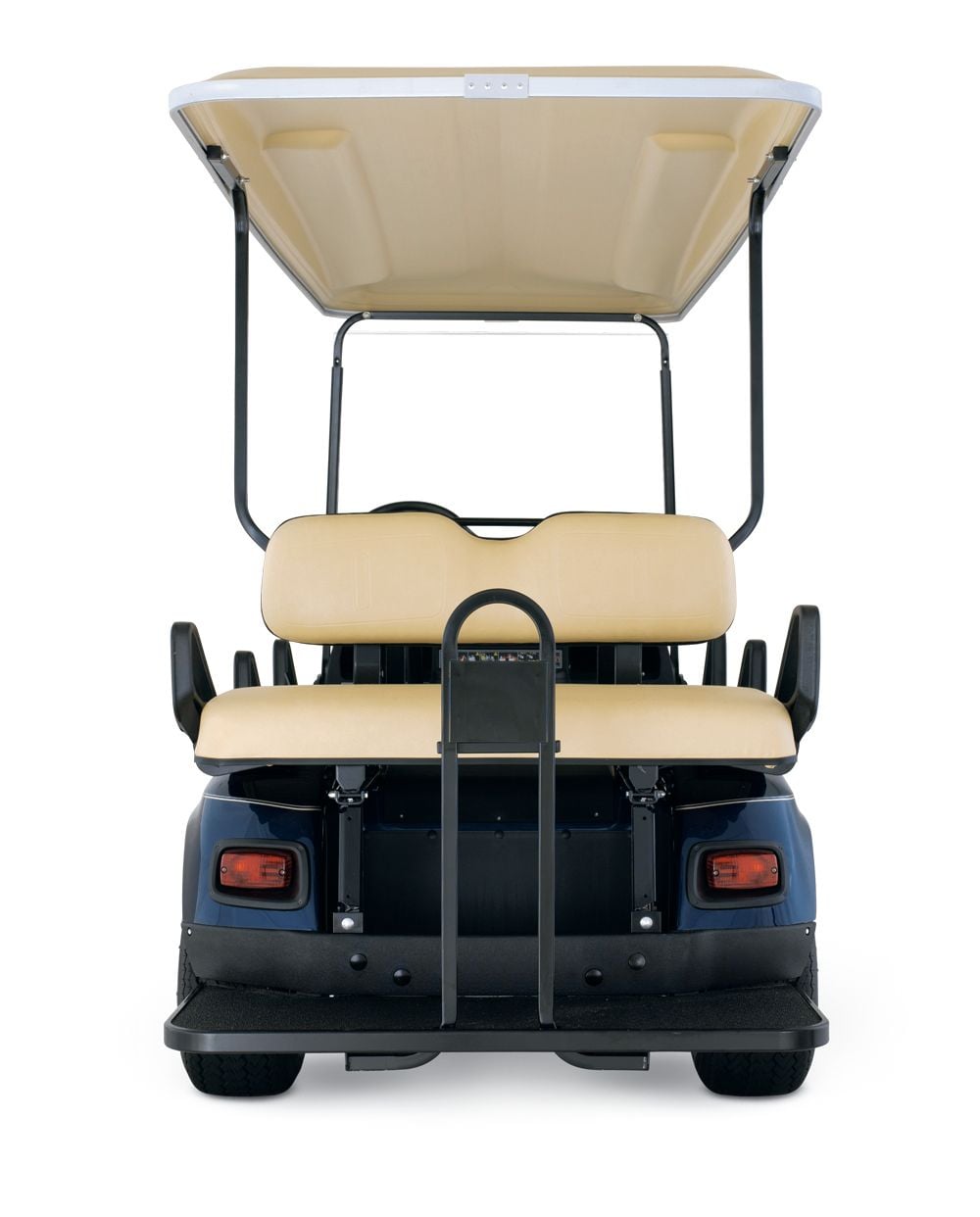

Shuttle 6 - 72v AC Electric

Take your people-moving power to the next level with the six-passenger Shuttle 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.

Standard Features

  • 6 x 12v Trojan T1275 Deep Cycle Lead Acid Batteries
  • 72 V Delta Q DC Onboard 1500 Watt Charger
  • 6 Seater with Rear Flip Flop Seat ( Grey Seating)
  • Extended Top Assembly ( Black, Tan or Oyster)
  • State of Charge Meter
  • Tail & Brake Lights,
  • Turn Signals
  • Hour Meter
  • DC Converter
  • Front Hydraulic Disc Brakes
  • USA Trail Tyres 18x8.50 - 8 (Load Range C)
  • Limited Slip Differential
  • Unique Group Key Switch
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • Split Windshield
  • Rabbit/ Turtle Speed Switch
  • Round Convex Mirror
  • Front Bumper/Brush Guard
  • Dual USB Port
  • High Output LED Headlights
  • Horn and Reverse Beeper
  • Rear View Mirrors
  • Choice of Colour


  • Lockable Glove Box
  • All Weather Enclosures
  • Maintenance Free Gel Batteries
  • (BFS) Battery Watering System
  • Retractable Seatbelts
  • Rotating Strobe Light



Overall Length: 345 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm
Front Wheel Track: 87 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm



Powertrain: 72 Volts
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 72 Volt
Battery (qty/type): Six, 12 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 1000 Watt, 72V, 120/230V VAC UL Listed
Speed Controller: 350 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1


Seating Capacity: 6 Person
Dry Weight (without battery): 437 Kg
Curb Weight: 660 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground):  Rabbit Mode - 26.4 kph ± 0.8 kph / Turtle Mode - 19.3 kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: Hole -N - One 18 - 8.5 - 8 (4 Ply Rated)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded TPO
Standard Colour: Ivory
Optional Colour: Almond, Black, Electric Blue, Flame Red, Patriot Blue, White, Safety Yellow, Forest Green, Platinum, Metallic Charcoal, Sunburst Orange
Available Seat Colours: Tan, Oyster, Grey
