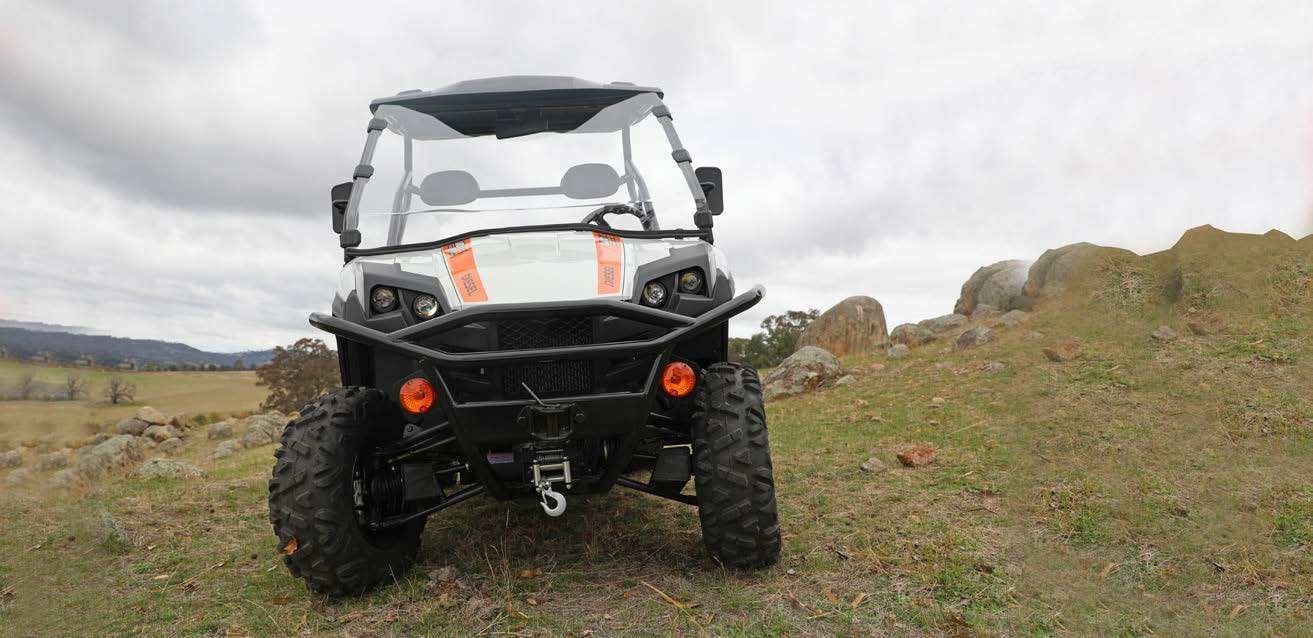

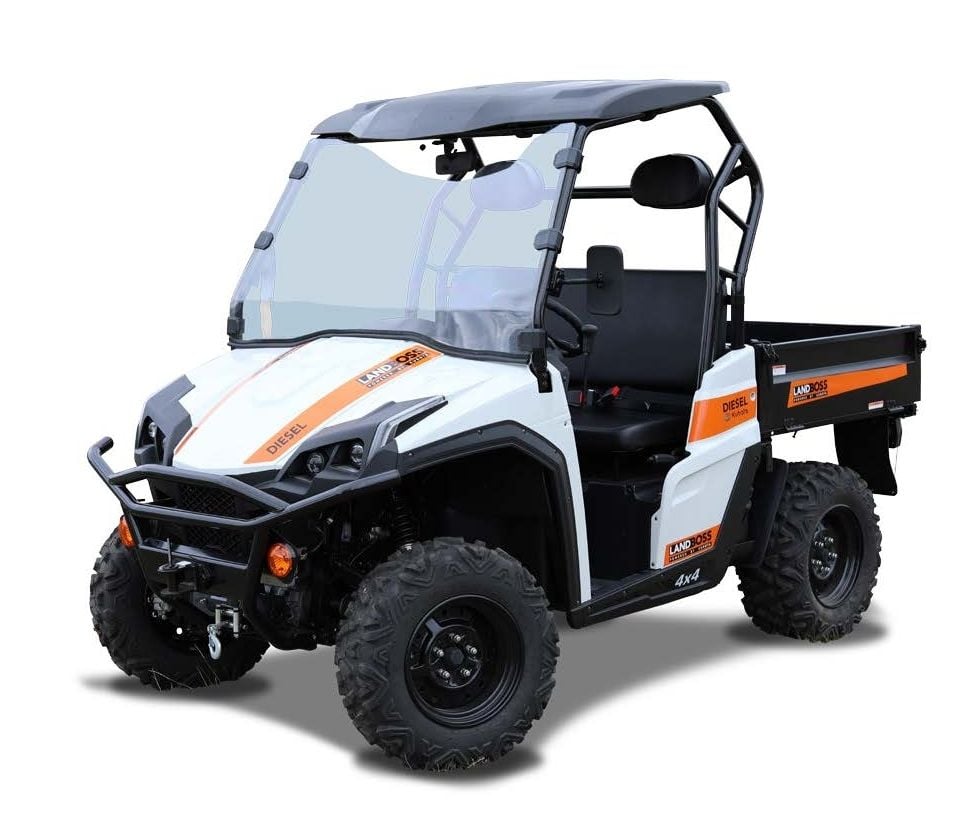

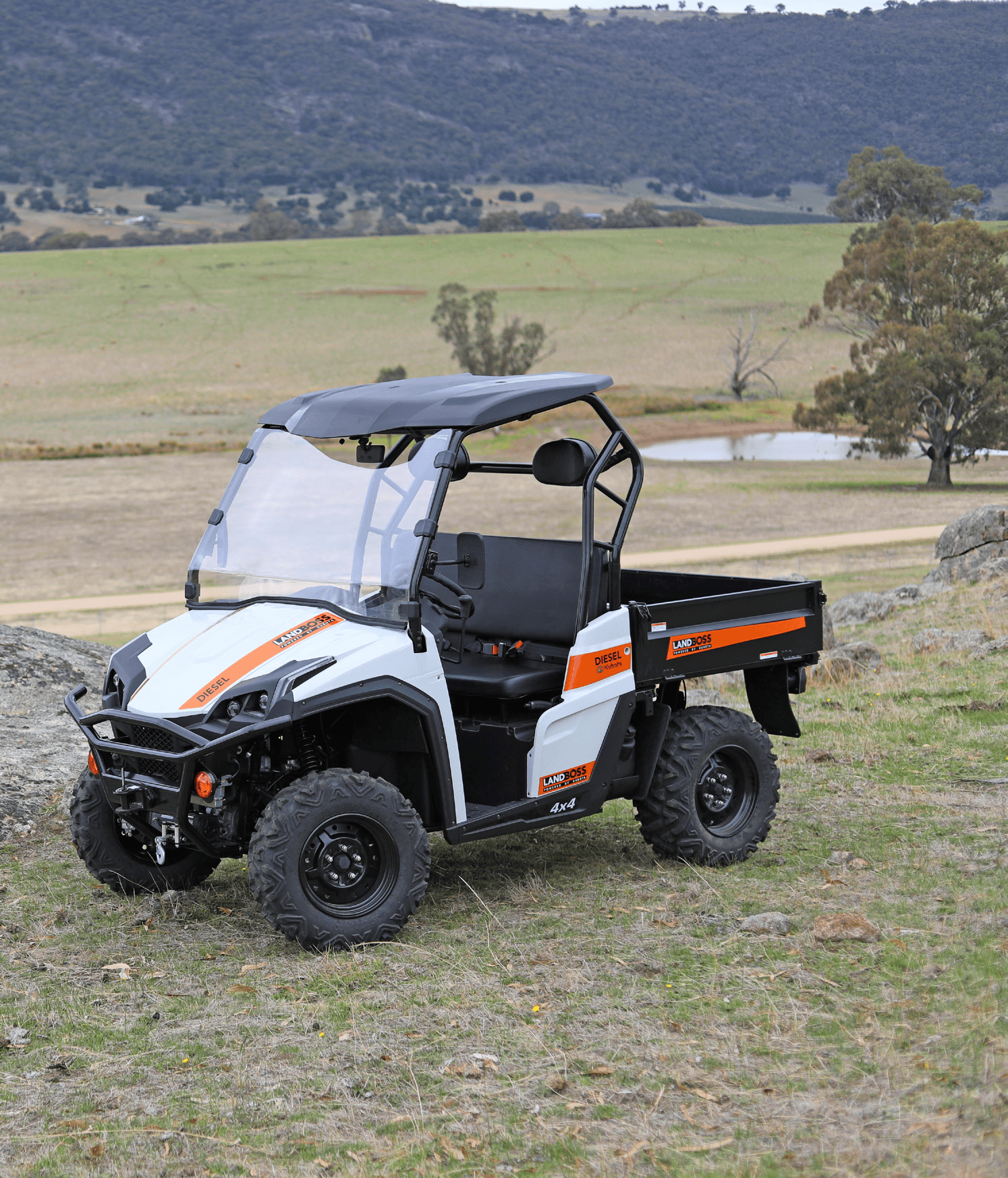

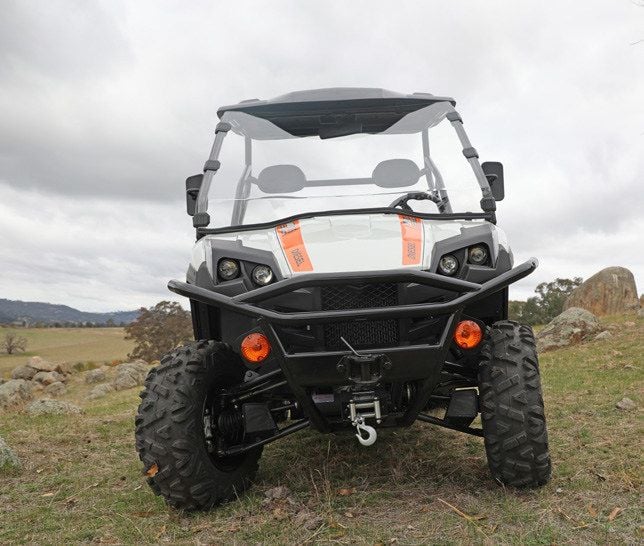

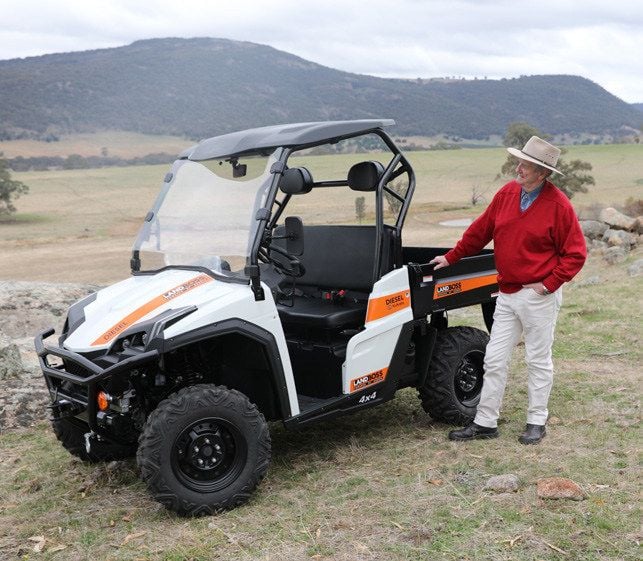

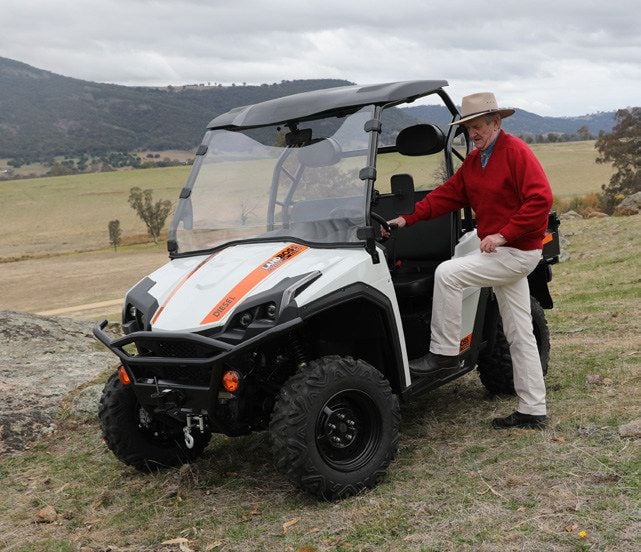

Landboss 1100D - Kubota

The Landboss 1100D LE Kubota is built on the same durable  Landboss platform however is powered by a larger Japanese built Kubota diesel engine, which can reach a much greater top speed of 60km/hr, as well as greater towing and carrying capacities.

Standard Features

  • Kubota 3 cylinder liquid cooled diesel engine
  • Canadian CVTech transmission
  • Selectable 2WD/4WD with front and rear differential lock and turf mode
  • Electronic Power Steering (EPS)
  • Reverse beeper, a bench seat and seatbelts for added safety
  • Independent dual, A-Arm suspension

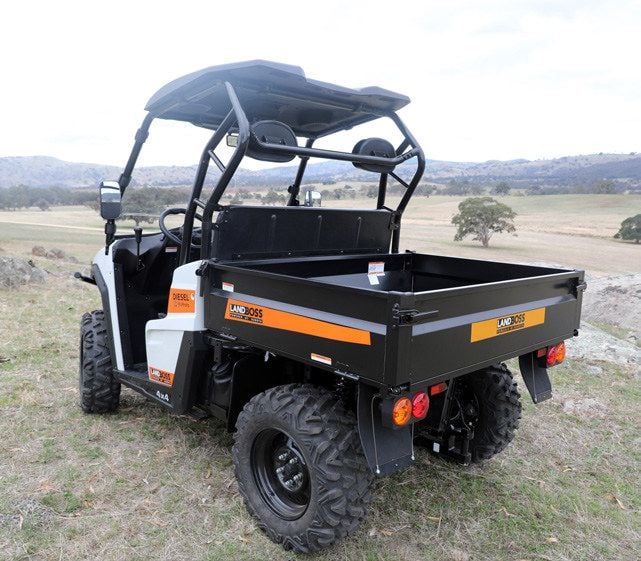

  • Steel tray with drop-down sides
  • More than one tonne total carrying capacity with 500kg cargo box, 800kg tow capacity and tow package included
  • 14 inch steel wheels with six ply tyres
  • ROPS certified roll frame
  • Heavy-duty 4500 lbs winch
  • Roof kit
  • Steel side-steps (not pictured)
  • Available in white only

Options/Accessories

  • Roof Kit
  • Split Windscreen
  • Full Hard Cabin Kit
  • Electric Tipper
  • Under Armour & CV guards
  • Front CV Guards
  • Rear CV Guards

Specifications

Engine Type: 24.8HP, In Line 3 Cylinder, Water Cooled Kubota Diesel
Engine Model: KUBOTA D1105-E3B
Top Speed: 60km/hr
Cooling: Liquid Cooled
Bore & Stroke: 78mm x 78.4mm
Compression Ratio: 24 : 1
Maximum Torque: 72NM @ 3000rpm
Starter System: Electric
Battery/AMP Hour: 12 Volt, 45Ah
Lubrication System: Forced Feed
Transmission: CVTech High / Low / Neutral / Reverse, 2WD / 4WD, Front & Rear Differential Lock
Clutch: Constant Variable Transmission (CVT)
Final Drive: Shaft Drive
Front Brakes: Hydraulic Disc
Rear Brakes: Hydraulic Disc
Parking Brake: Hand
Steering: Adjustable Tilt Steering Wheel & Electronic Power Steering (EPS)
Front Suspension: Dual A-Arm Coil Over Shock
Rear Suspension: Dual A-Arm Coil Over Shock (IRS)
Tyres: (front/rear) 26x9x14 / 26x11x14
Wheels Front: 14x9 / Rear 14x11
Wheels: Steel 5 Stud
Dimensions: (L/W/H) 3110mm / 1543mm / 1990mm
Wheel Base: 1,930mm
Distance between Wheels: 990mm
Ground Clearance: 240mm
Dry Weight: 842kg
Diesel Capacity: 35 Litres
Cargo Box Capacity: 500kg
Rear Tray: (L/W/H) 1020mm / 1470mm / 400mm
Towing Capacity: 800kg
