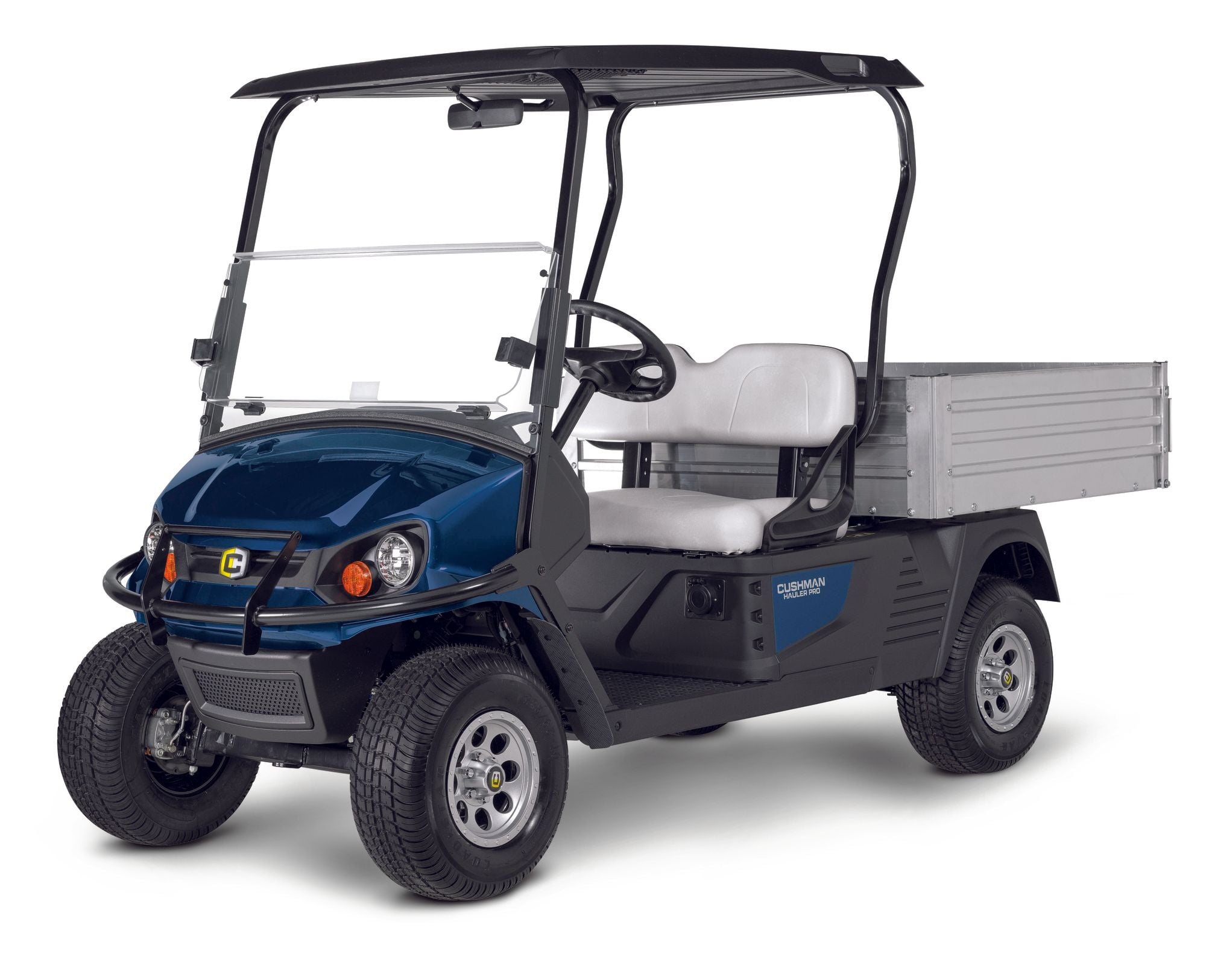

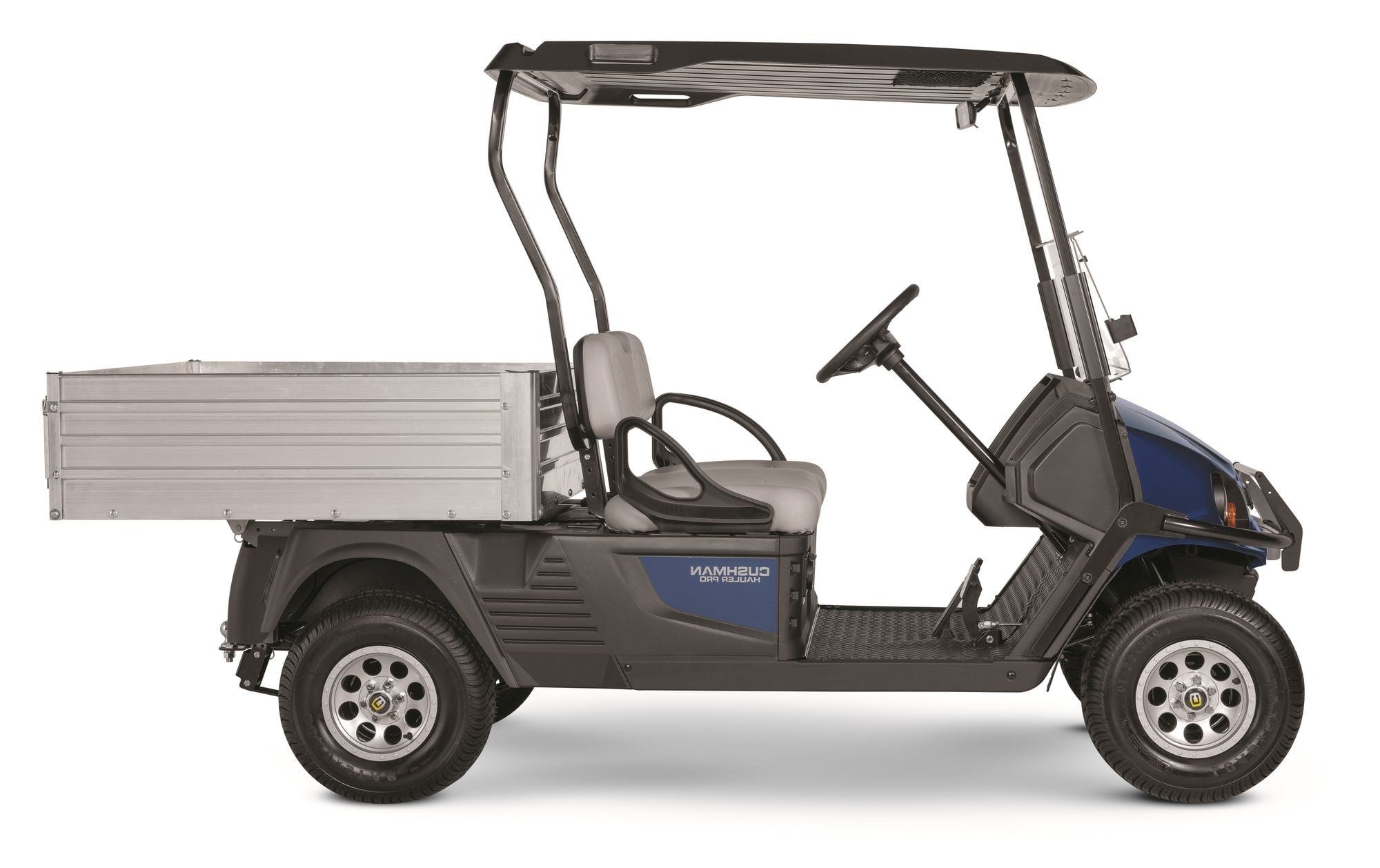

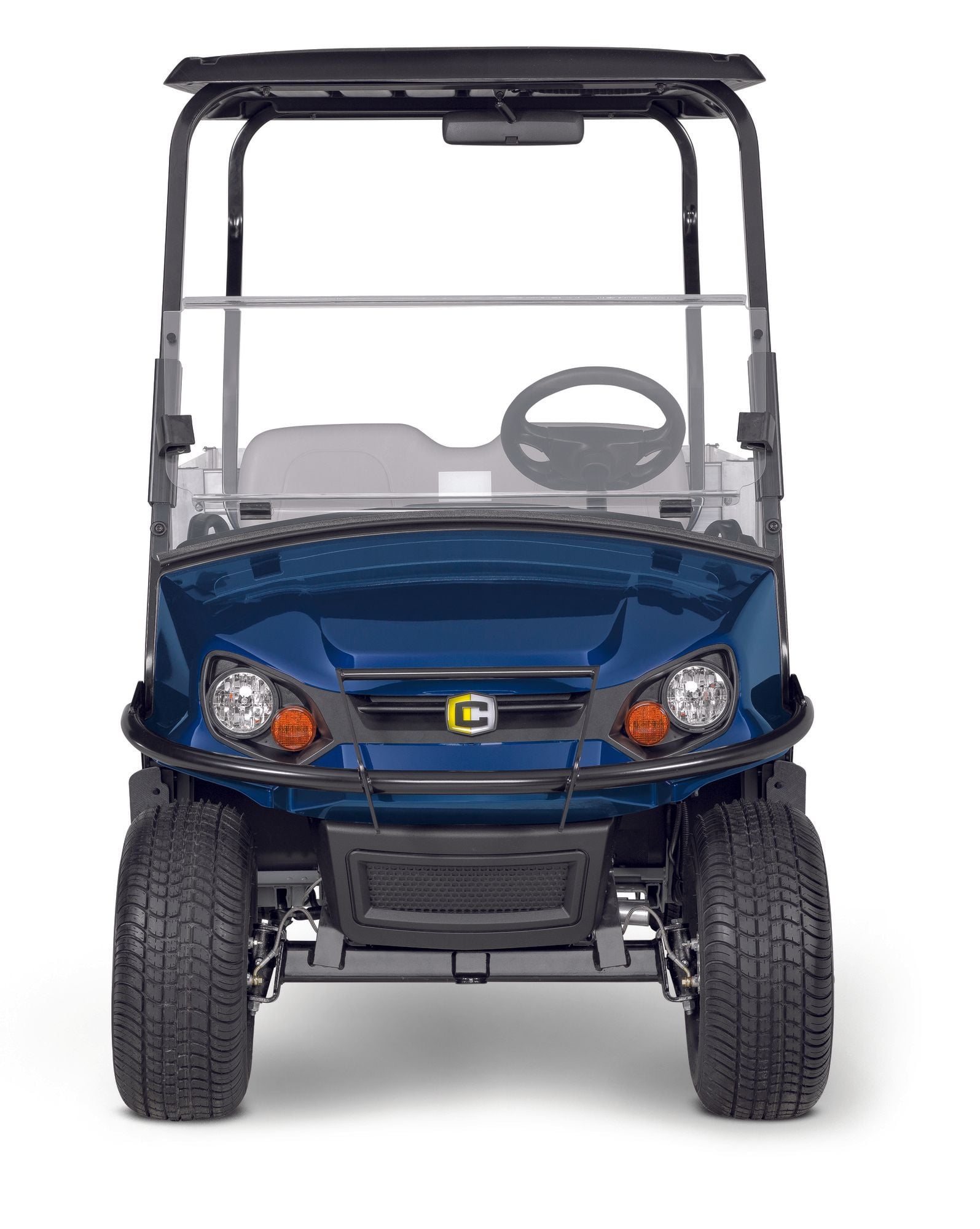

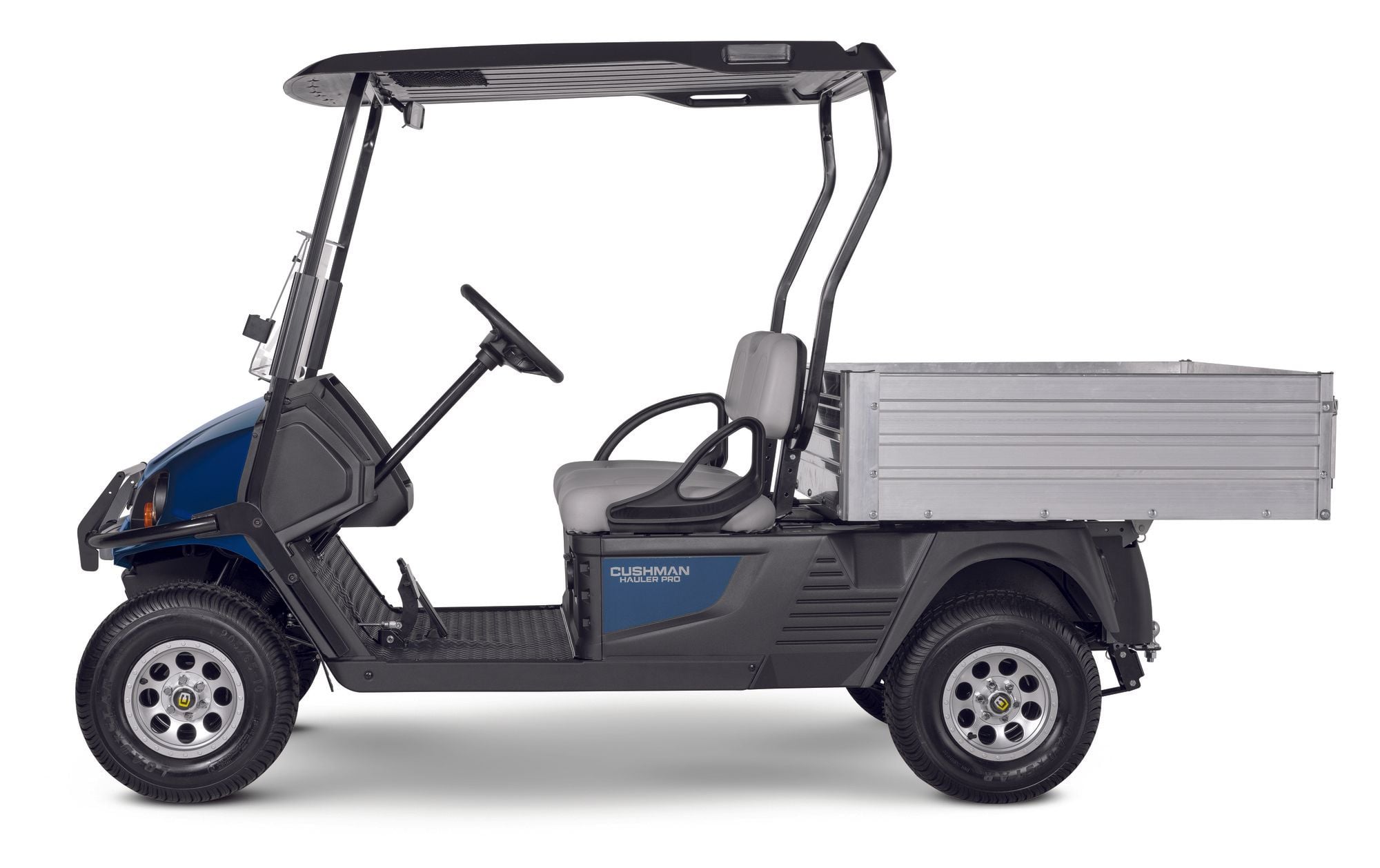

Hauler Pro - 72v AC Electric.

It's time to raise your expectations of electric-powered vehicles. With a 72V AC drivetrain that offers the hauling and hillclimbing power you need, the Hauler® PRO has the capacity to outperform its gas-powered competitors. Couple that with optional IntelliBrake technology, silent operation and zero-emissions, and the Hauler PRO quietly turns skeptics into believers.

Standard Features

  • 9 x 8V Trojan T875 Deep Cycle Lead Acid Batteries
  • 72V Delta Q 900 Watt On-board Charger
  • Black Top Assembly & Grey Seating
  • Headlights, Tail & Brake Lights
  • Turn Signals
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • State of Charge Meter
  • Hour Meter
  • DC Converter
  • Front Black Bumper/ Brush Guard
  • Unique Key Switch
  • Fender Flare
  • Rear Hitch Receiver
  • Limited Slip Differential with Diff Guard
  • 12-Volt Outlet
  • Split Windshield
  • Horn and Reverse Beeper
  • K 500 20x 8- 10 (6 Ply) Wheels
  • Comfort Grip Steering Wheel
  • AC Motor
  • Plastic Bed or Alluminium Tray with Manual Gas Assisted Lift
  • Choice of Colours

Options/Accessories

  • Bed Dividers
  • Long-Handled Tool Holder
  • Cargo Mesh Netting
  • Flexible Tool Clamps
  • L-Track Aluminum Bed System
  • Tie Down D-Loops
  • All Weather Enclosure
  • USB Outlet
  • Canopy Storage Net
  • ROPS-Certified Ball Cage
  • Rearview Mirror
  • ROPS-Certified Cab
  • Ladder/Hoop Rack
  • Electric Bed Lift Upgrade
  • Maintenance Free Gel Batteries
  • BFS Battery Filling System
  • Tow Hitch and 50 mm Tow Ball

Specifications

Dimensions

Overall Length: 292 cm
Overall Width: 125 cm
Overall Height (with canopy): 179 cm
Wheel Base: 193.04 cm
Front Wheel Track: 88.9 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 11.43 cm
Cargo Box Capacity: 12 Cu ft (0.34m³)



Power

Powersource: 72 Volts AC
Motor Type: AC Induction
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 72 Volt
Battery (qty/type): Nine, 8 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 900 Watt 72V DC
Speed Controller: 350 Amp
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Neutral-Reverse
Rear Axle Ratio: 17:1



Performance


Seating Capacity: 2 Person
Curb Weight: 669 Kg
Vehicle Load Capacity: 545 Kg
Bed Load Capacity: 363 Kg
Towing Capacity: 680 Kg
Outside Clearance Circle: 6.55 m
Speed (level ground):  8 - 30.5 kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 18 - 8.5 - 8 (6 Ply Rated)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Patriot Blue
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Forest Green, White
Available Seat Colours: Grey


Download Owners Manual
