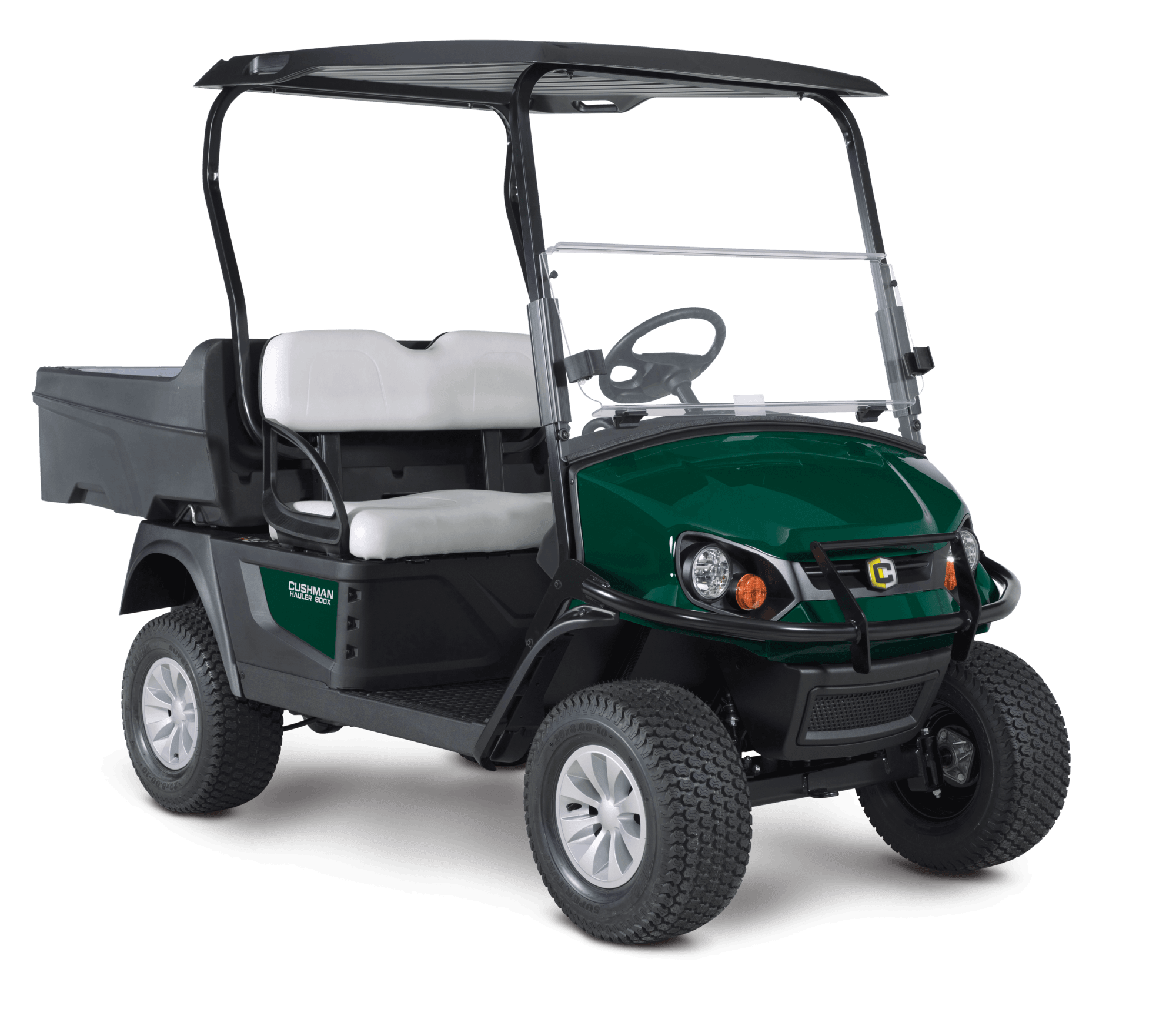

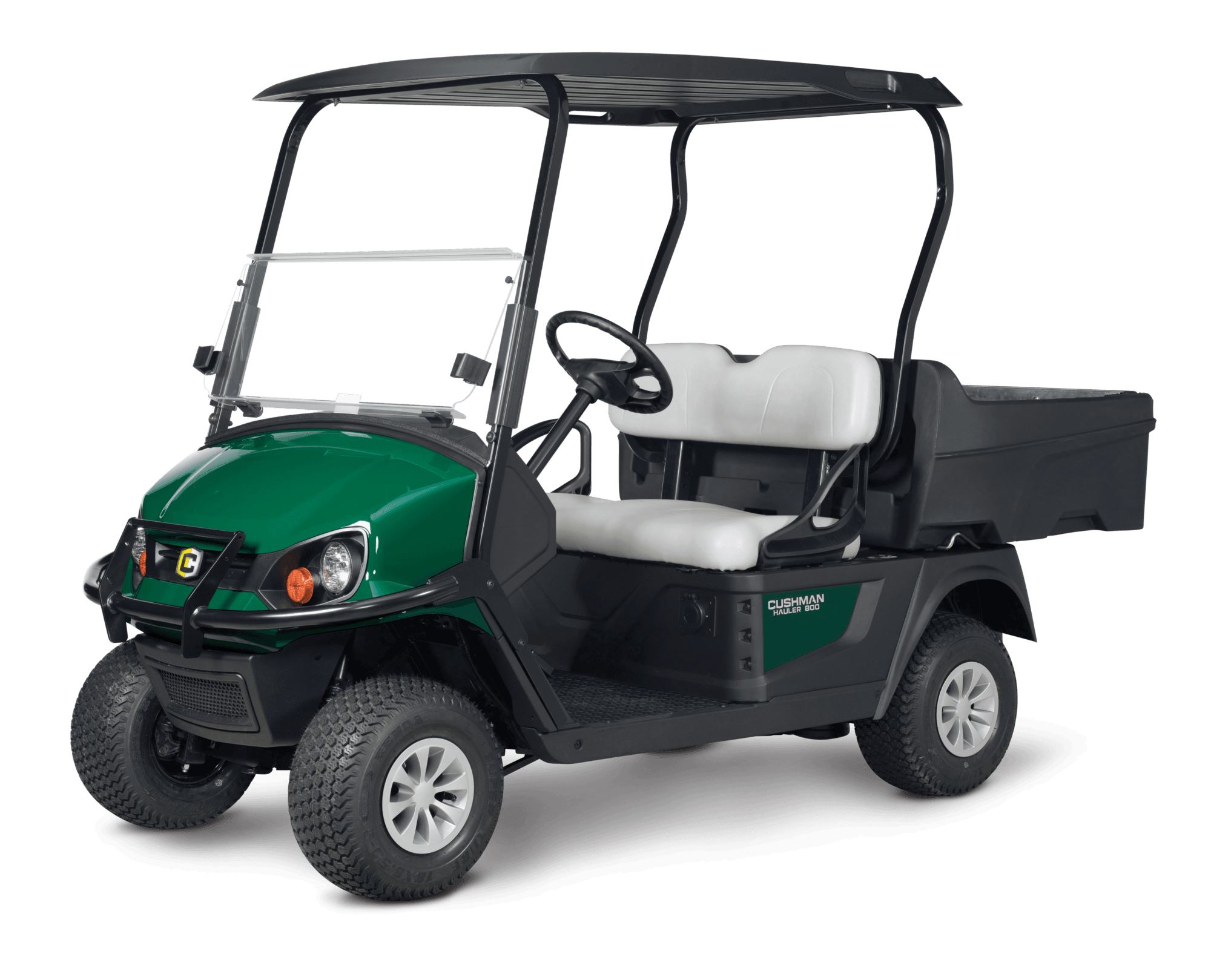

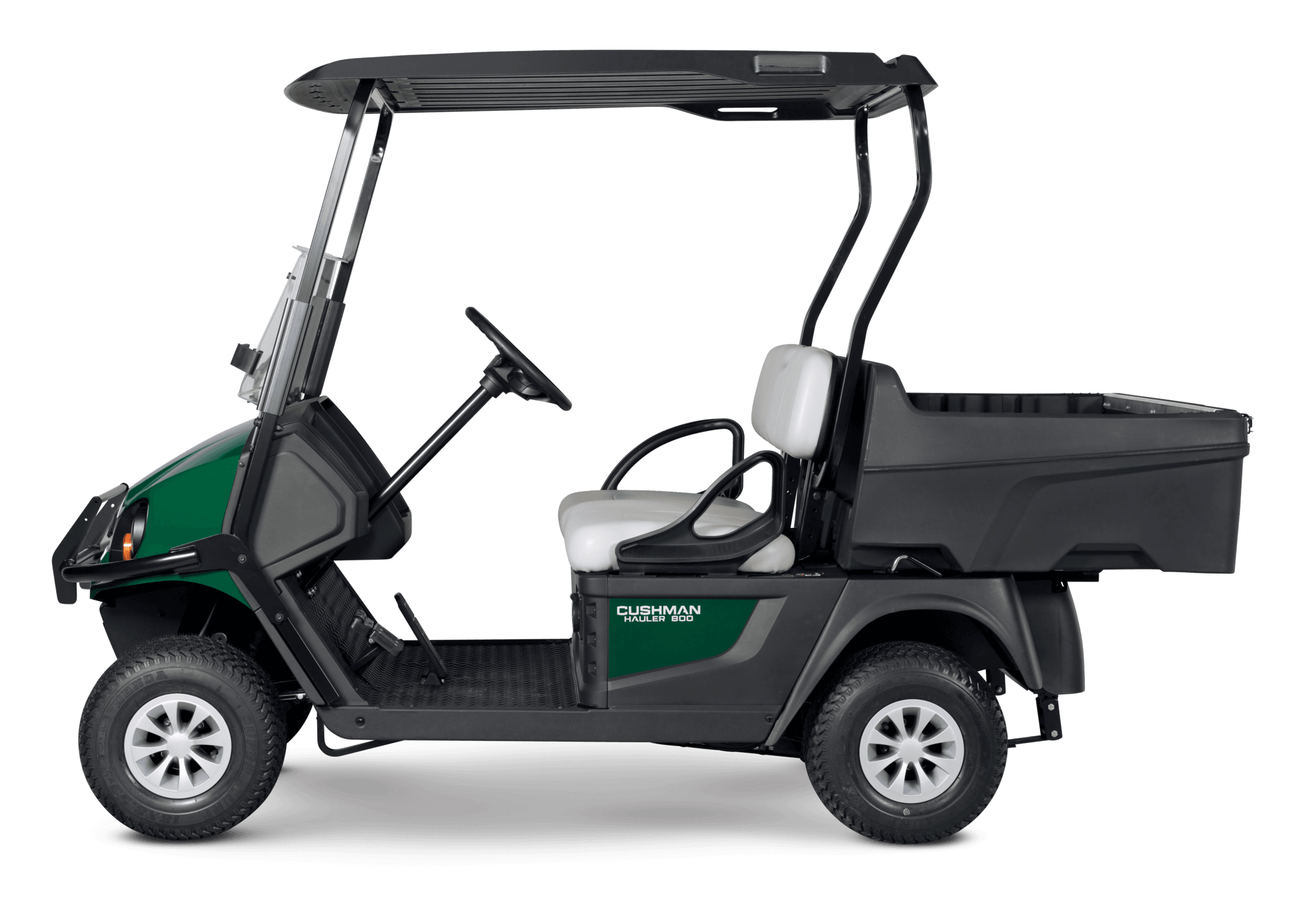

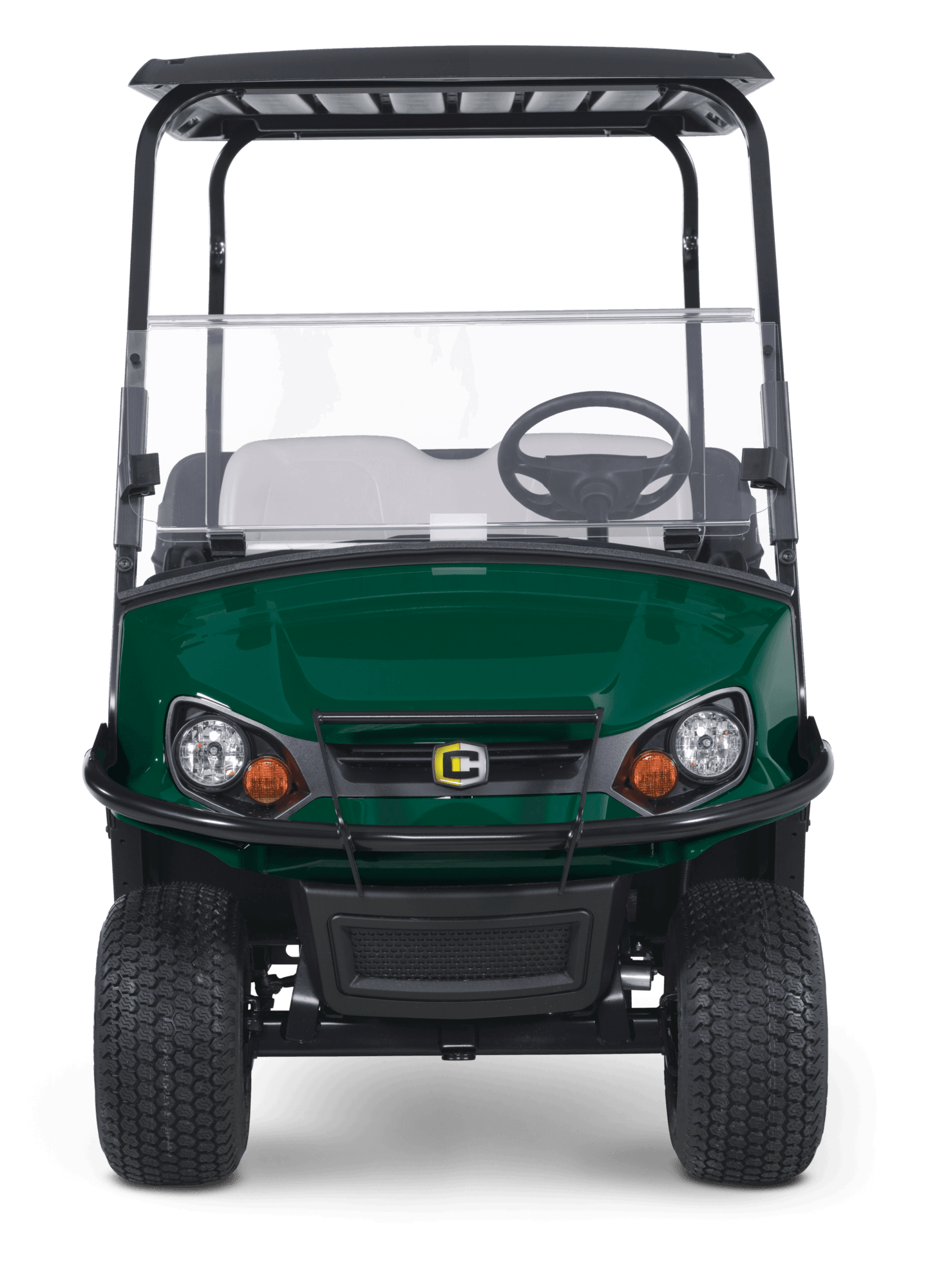

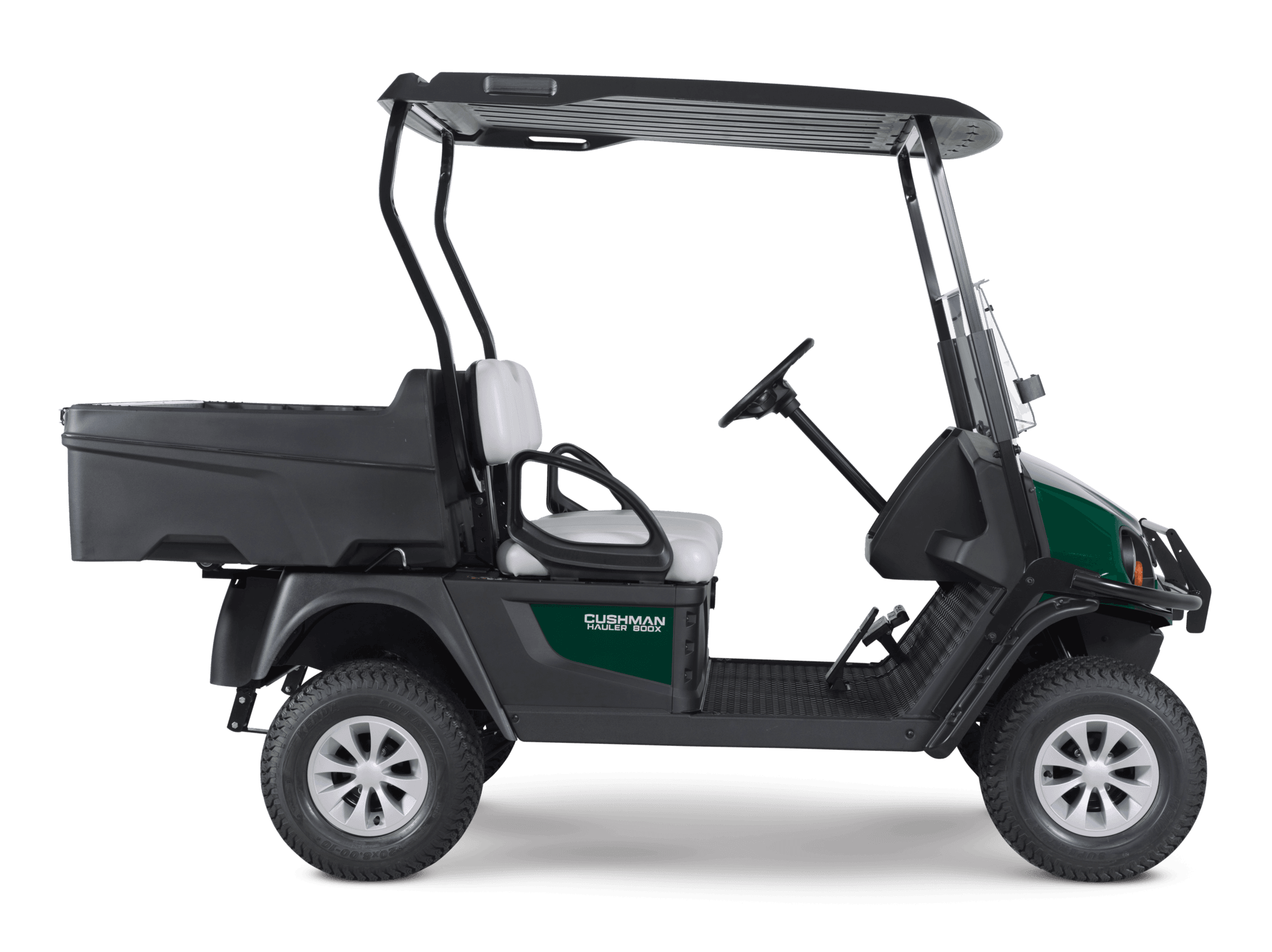

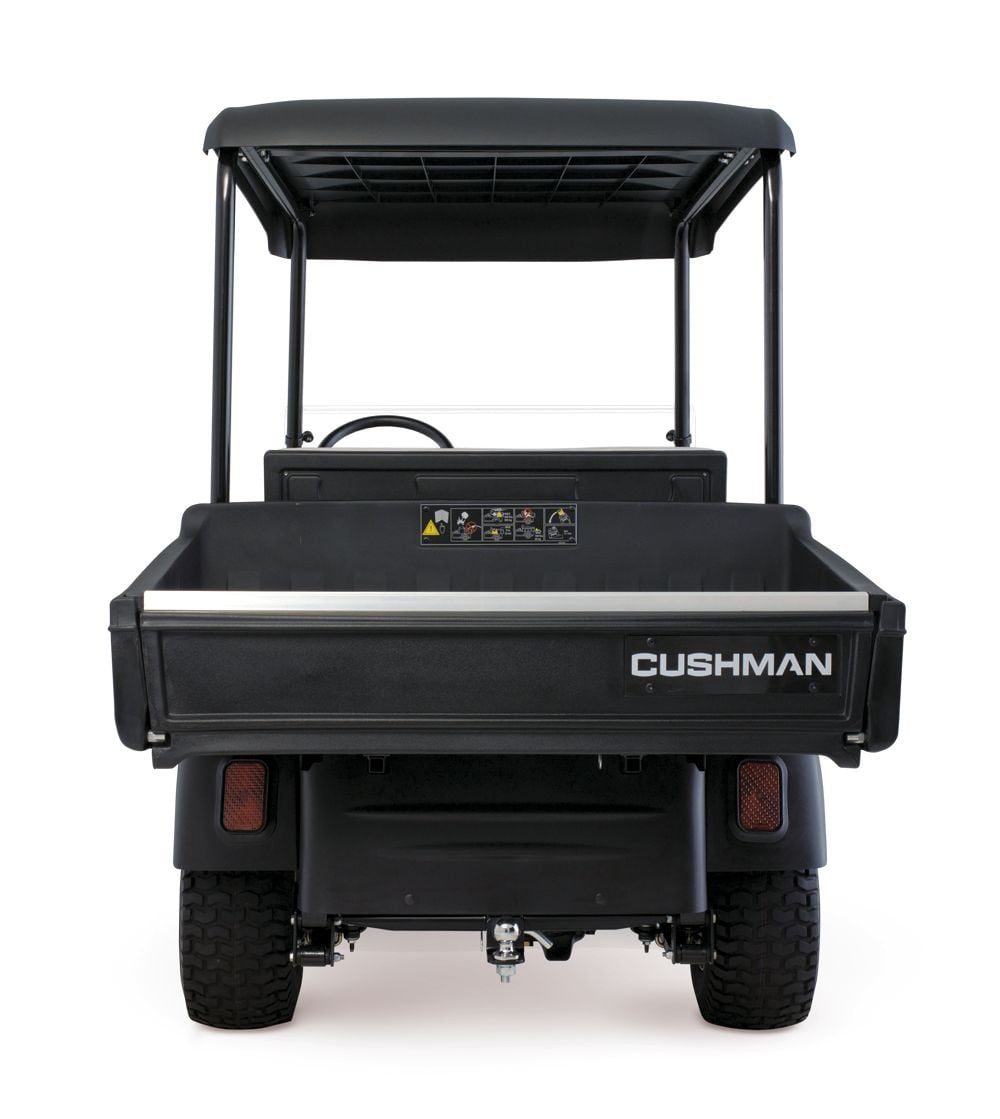

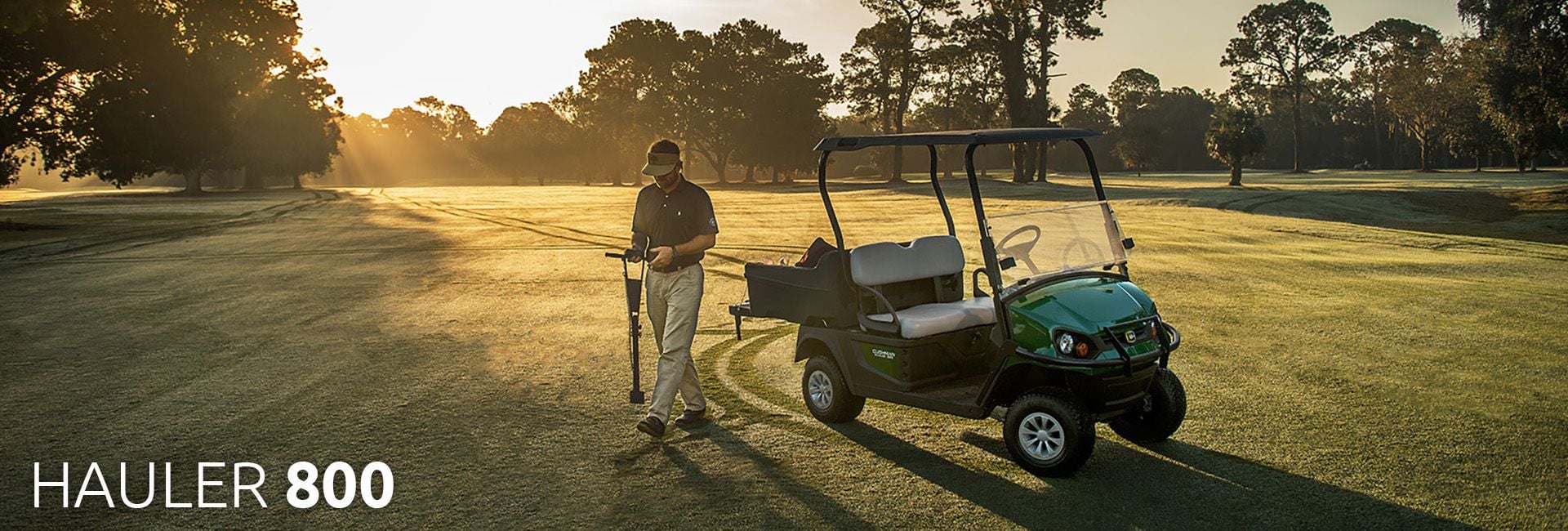

Hauler 800 - Petrol 13.5 hp

The most respected workers have a reputation for getting the job done day in and day out like the dependable Hauler® 800. Available with a gas or electric powertrain, it delivers the practical power you need to knock down your to-do list.

Standard Features

  • Kawasaki 13hp Single Cylinder Engine
  • Black Top Assembly & Grey Seating
  • Head Tail & Brake Lights
  • Turn Signals
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • Low Fuel/Oil Gauge
  • Hour Meter
  • Front Black Bumper/ Brush Guard
  • Unique Key Switch
  • Fender Flare
  • Rear Hitch Receiver
  • Limited Slip Differential with Diff Guard
  • 12-Volt Outlet
  • Split Windshield
  • Horn and Reverse Beeper
  • K 500 20x 8- 10 (6 Ply) Wheels
  • Comfort Grip Steering Wheel
  • Metallic Hubcaps ( Gold or Silver)
  • Plastic Bed with Manual Gas Assisted Lift
  • Choice of Colours

Options/Accessories

  • Improved Surface Tyres
  • LED Headlights with High/Low Beam
  • ROPS-Certified Cab
  • Bed Dividers
  • Long-Handled Tool Holder
  • Cargo Mesh Netting
  • All Weather Enclosure

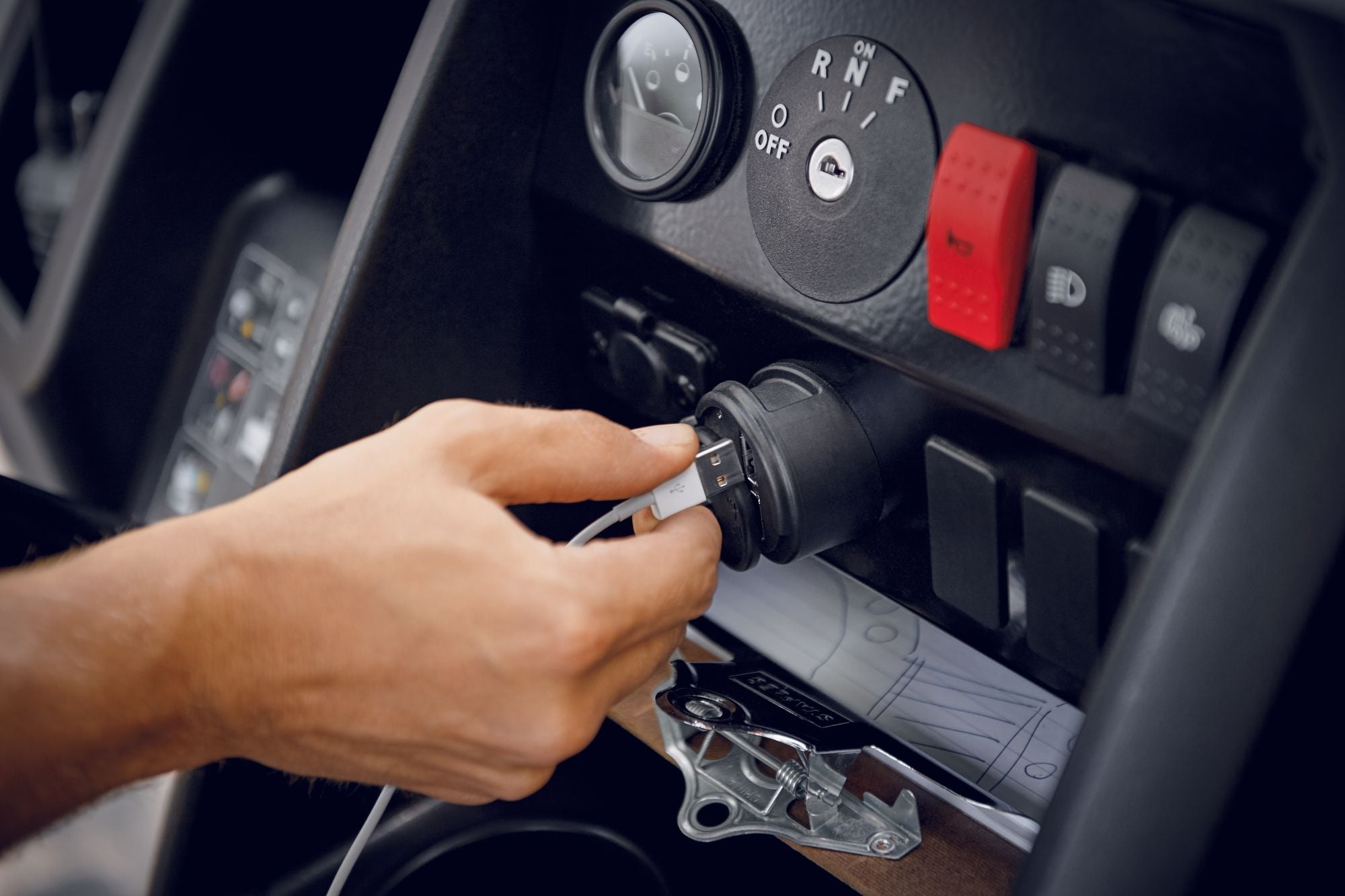

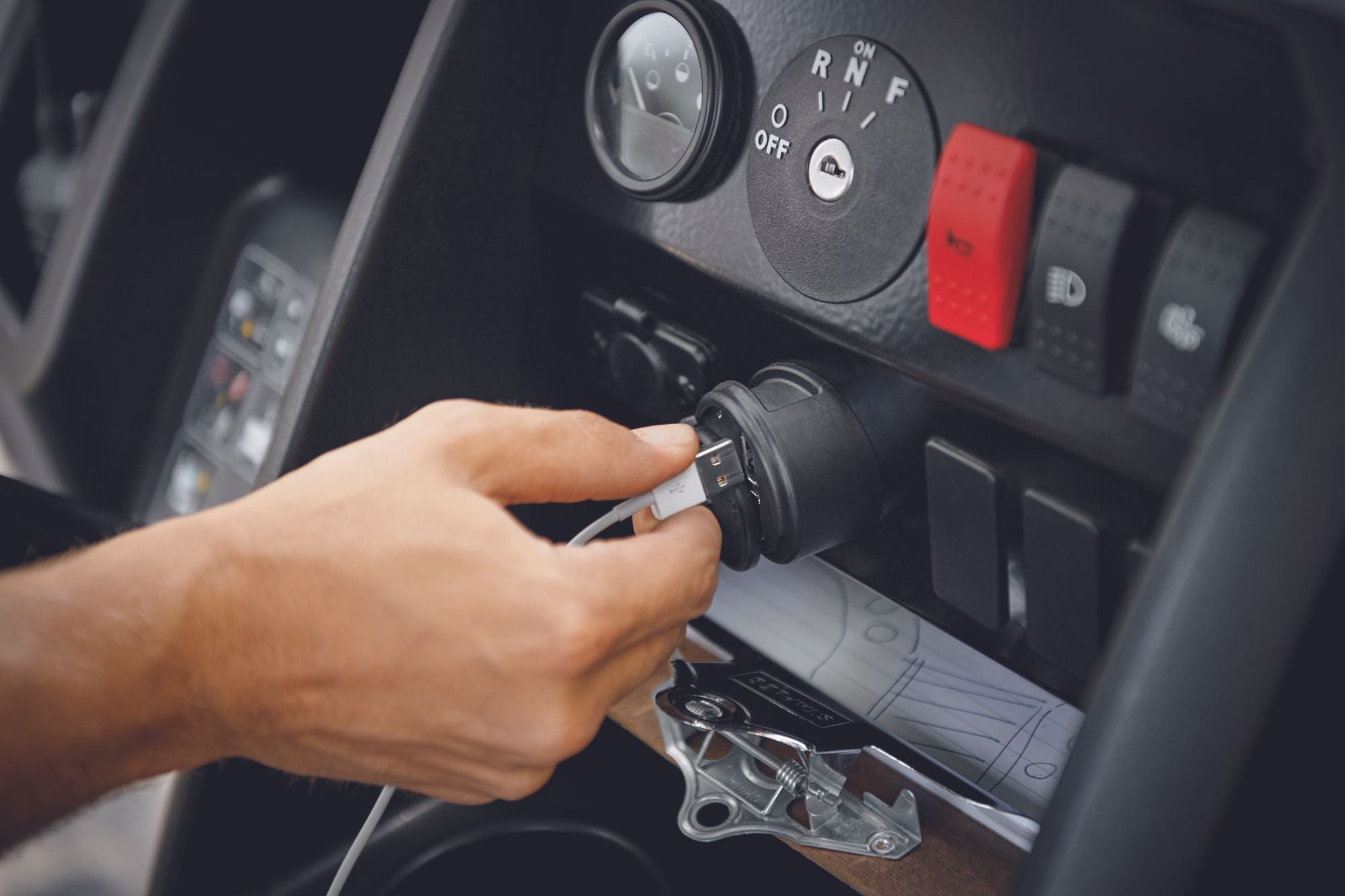

  • USB Outlet
  • Canopy Storage Net
  • Rearview Mirror
  • Electric Bed Lift Upgrade
  • Tow Hitch and 50 mm Tow Ball

Specifications

Dimensions

Overall Length: 280 cm
Overall Width: 125 cm
Overall Height (with canopy): 176 cm
Wheel Base: 166 cm
Front Wheel Track: 94 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Cargo Box Capacity: 8.4 Cu ft (0.24m³)
Cargo Box Material: Roto-Moulded Polyethylene
Cargo Deck Dimmensions: 113 cm x 72 cm x 30.5 cm


Power

Powertrain: 4 Cycle, 24.5 ci (401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1kW) Exceeeds SAEJ1940 Standard
Electric System: Starter/Generator. Solid State Reg
Battery (qty/type): One, 12v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 21.3 Litre
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.47:1 (Forward) 11.35:1 (Reverse)



Performance


Seating Capacity: 2 Person
Dry Weight (without battery): 345.2 Kg
Curb Weight: 358.8 Kg
Vehicle Load Capacity: 362.9 Kg
Bed Load Capacity: 181.4 Kg
Towing Capacity: 408.2 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground):  23.3 kph kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers

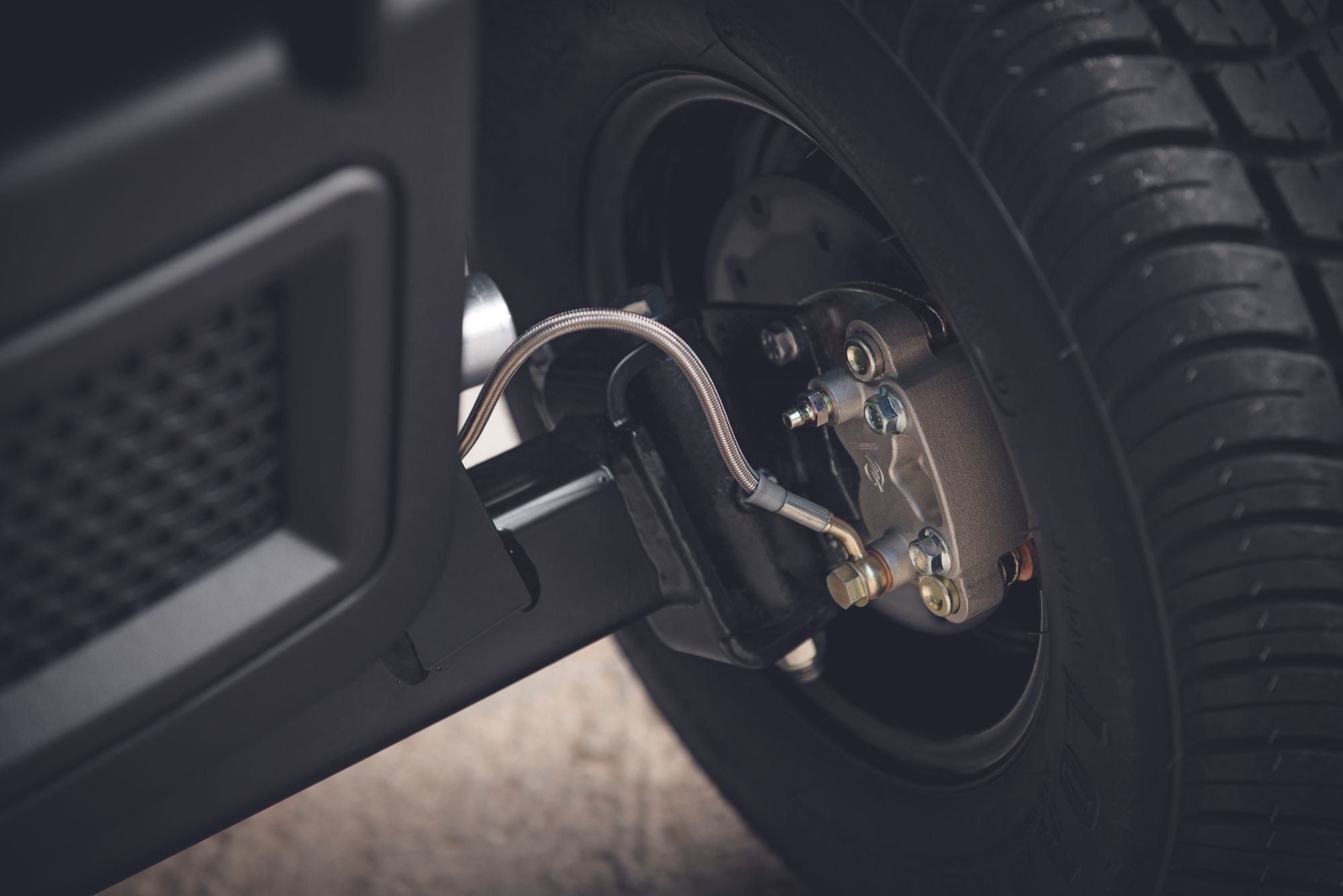

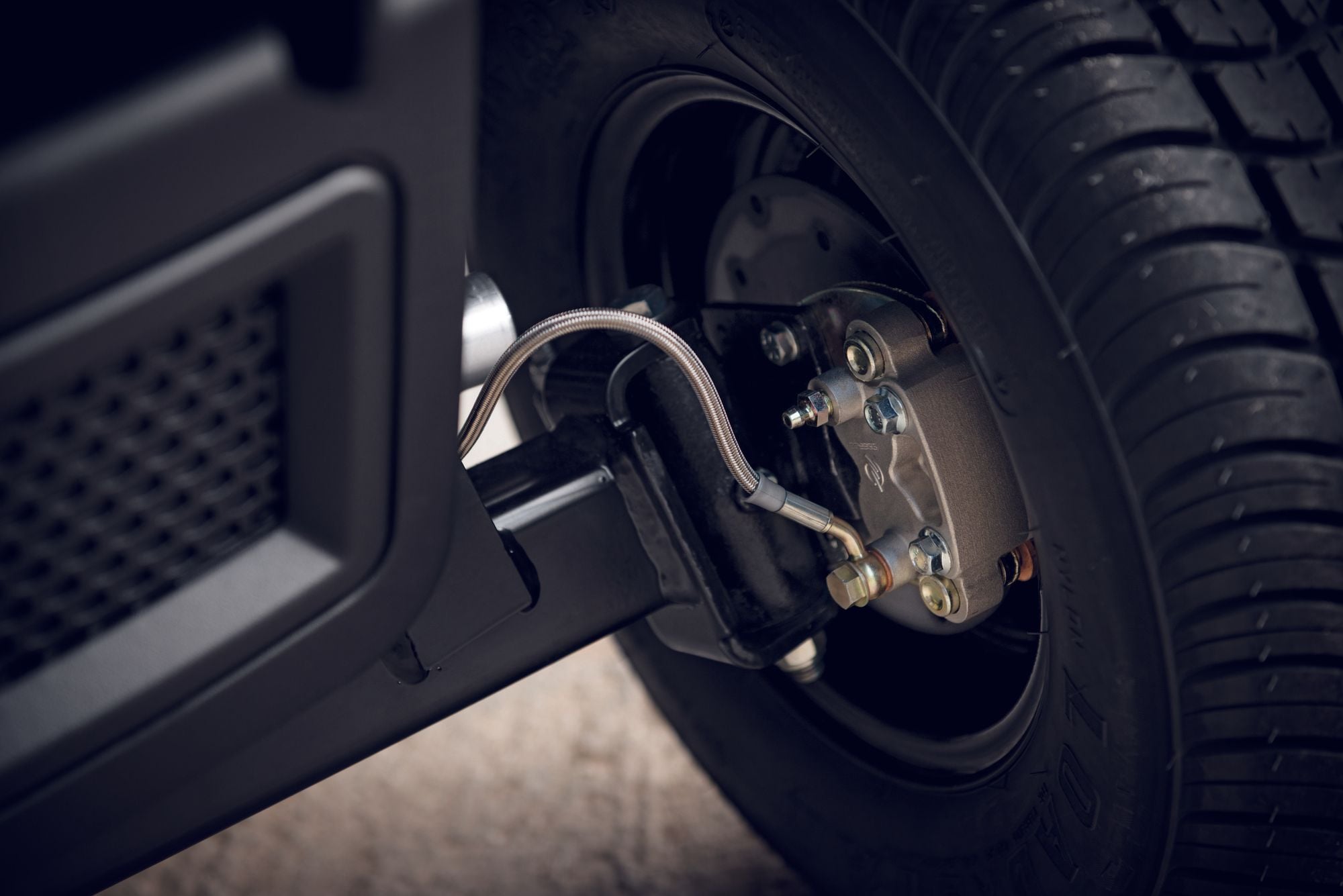

Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: K500 18 - 8.5 - 8 (6 Ply Rated)

Body & Chassis

Frame: Welded steel with E-Shield e-coat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Forest Green
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Patriot Blue, White
Available Seat Colours: Grey
