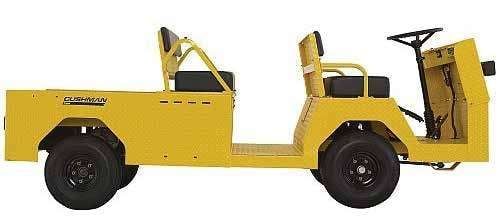

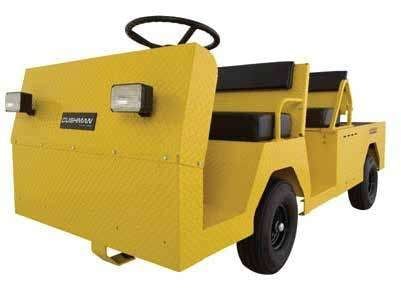

Titan XD - 48v AC Electric 4 Seater

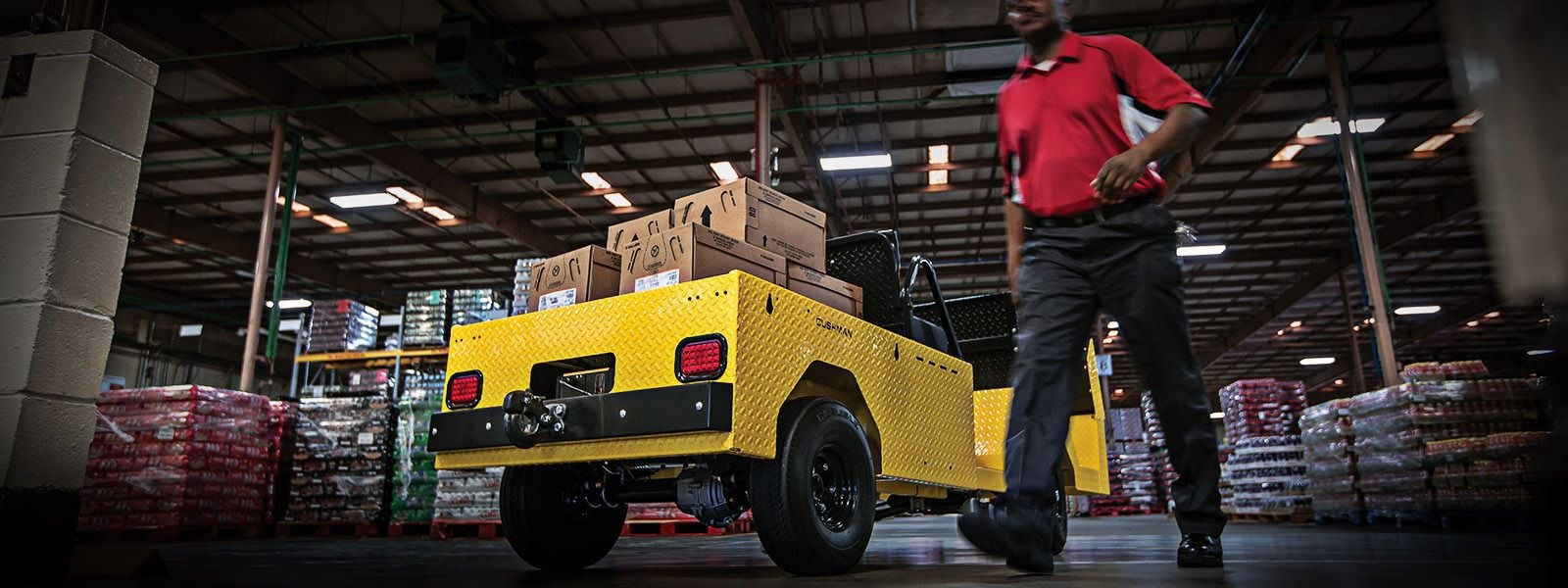

The Titan XD is a force to be reckoned with - featuring AC power and IntelliBrake technology, it has the stamina required to carry load after load. With impressive towing performance up to 8,000 -lbs and hauling strength up to 3,000 -lbs, it's easy to see how the Titan XD is blue-collar grit wrapped in diamond-plated steel.

Standard Features

  • 8 x 6V Trojan T105 Deep Cycle Batteries
  • 48V Delta Q DC On-Board Charger
  • AC Motor
  • 4 Passenger ( Fold Down Rear Seats) with
  • Heavy Duty Plywood Plastic Non Slip Laminate
  • 2 x Swing Out Battery Trays
  • Head, Tail and Brake Lights
  • Turn Signals,
  • Front & Rear Bumpers,
  • 4 Wheel Hydraulic Disc Brakes
  • Intelli Automatic Park Brake
  • Hour Meter,
  • Welded Steel with DuraShield coating Frame & Body
  • Body Finish painted Diamond pattern
  • DC Converter
  • Horn and Reverse Beeper
  • State of Charge Meter
  • Operator Presence Switch

Options/Accessories

  • Foam Filled Tyres
  • Pintle Hitch (requires rear bumper)
  • Clevis Hitch (requires rear bumper)
  • Type EE Certification
  • Maintenance Free Gel Batteries
  • Hand Park Brake
  • Rotating Amber Strobe
  • Box Sids and Tailgate - Steel or Alluminium
  • Long Top Assembly with Fold down windshield
  • Short Top Assmebly with Fold down windshield
  • DFK Hard Cab with Door, Windscreen and Wipers
  • Steel Cargo Deck
  • Tow Hitch and 50 mm Tow Ball
  • Custom Colour

Specifications

Dimensions

Overall Length: 290 cm
Overall Width: 113 cm
Overall Height : 119 cm
Height with Optional Cab: 183 cm
Wheel Base: 170 cm
Front Wheel Track: 96 cm
Rear Wheel Track: 96 cm
Ground Clearance (at differential): 12 cm
Cargo Box Capacity: 1180 Kg
Cargo Box Material: Weather Proof Deck Board


Power

Power Source: 48 Volts
Horsepower: 16.8 hp ( 12.5 kW) Peak
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48v On-board, Delta Q 120V AC, UL & CSA
Speed Controller: 450 Amp AC
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1


Performance

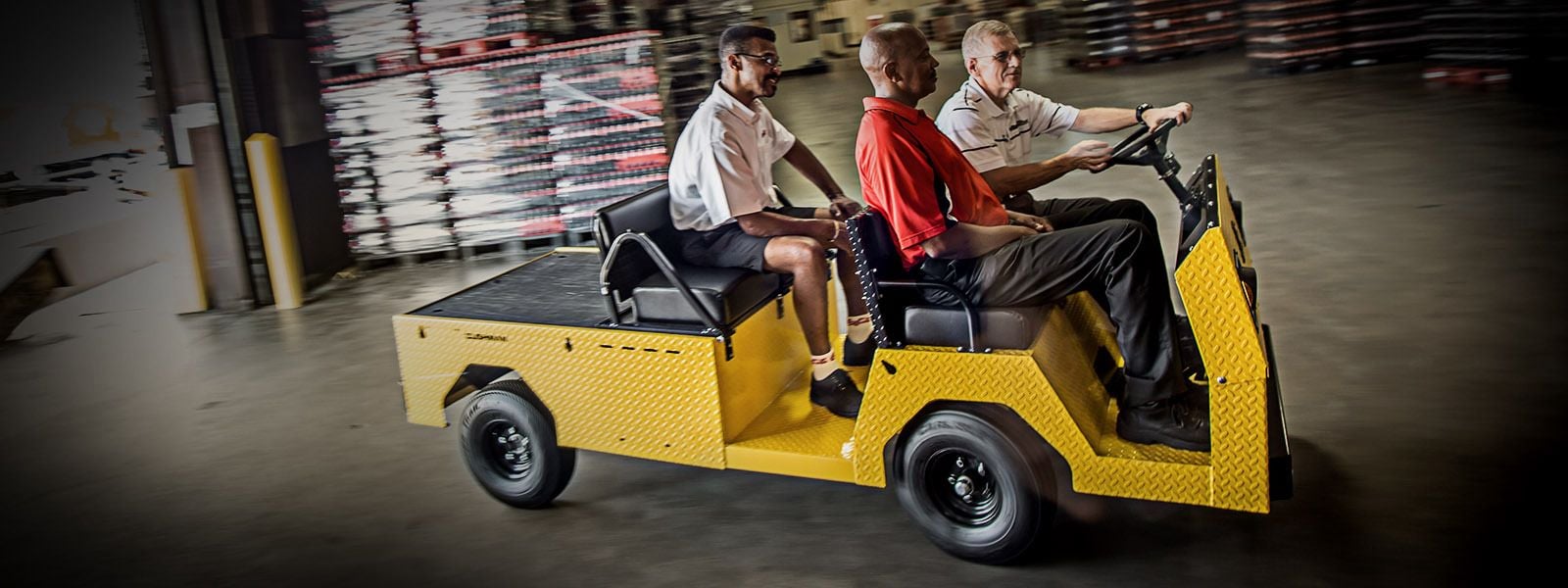

Seating Capacity: 4 Person
Dry Weight (without battery): 560 Kg
Curb Weight: 780 Kg
Vehicle Load Capacity: 1361 Kg
Bed Load Capacity: 1000 Kg
Towing Capacity: 3628 Kg
Outside Clearance Circle: 6.47 m
Speed (level ground):  21 kph ± 0.8 kph     Tow Mode: 8.1 kph ± 0.8 kph

Steering & Suspension

Steering: Rack and Pinion
Front Suspension: Independent, Transverse Leaf Spring Shocks
Rear Suspension:  Leaf Springs and Shock Absorbers
Service Brake: Front Hydraulic Disc, Rear Hydraulic Drum
Parking Brake: Intellibrake Automatic Parking Brake
Tyres: 5.7 x 8 (Load Range C)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Body & Finish: Diamond Plate Patterned, Poly Primer & Acrylic
Standard Colour: Safety Yellow
Optional Colour: Flame Red, Hunter Green, Arctic White
Available Seat Colours: Black
