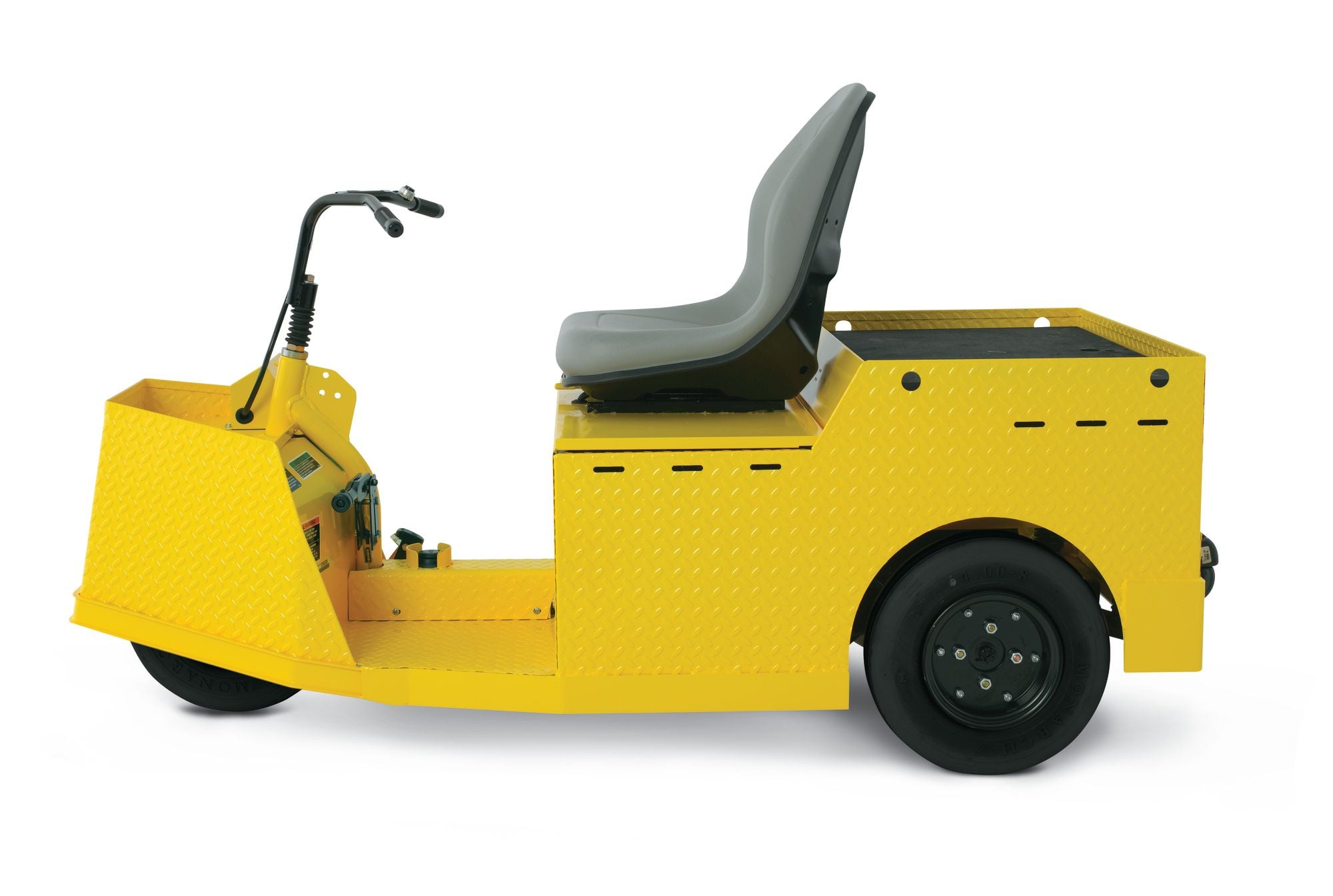

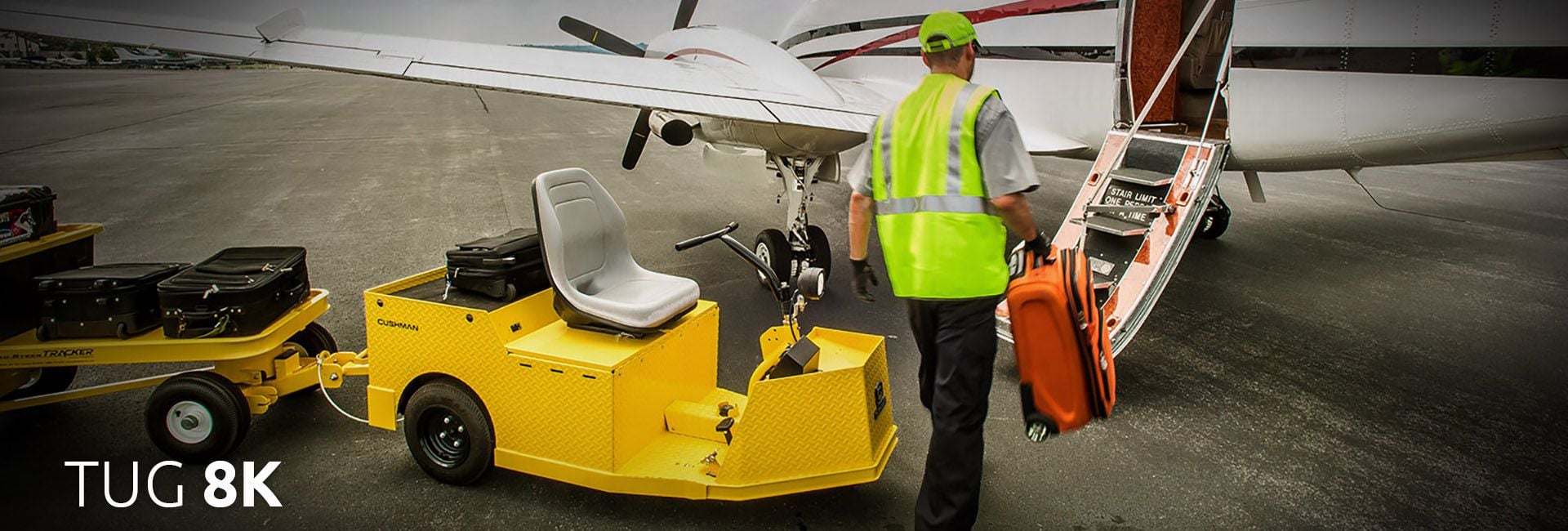

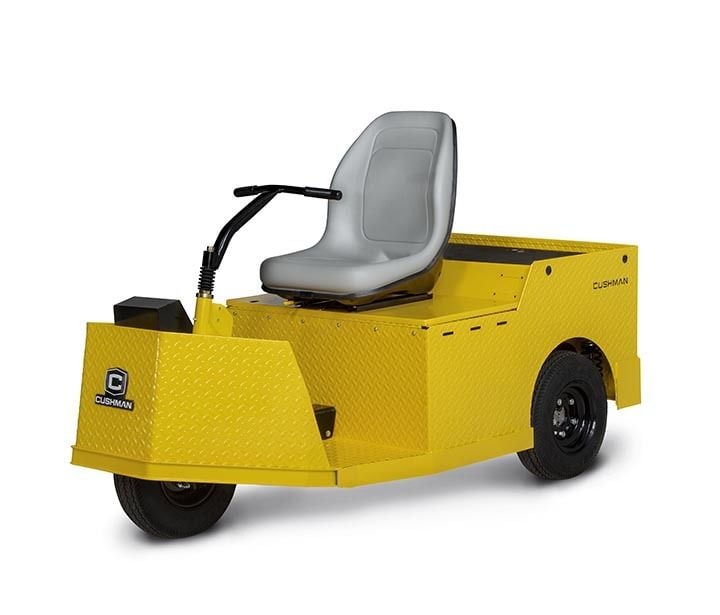

Tug- 48v AC Electric

Take your towing up a notch. Built for one specific job, the Tug tow tractor gives your facility the power to pull loads that were previously unmoveable. No matter the load, you can count on the Tug to pull its weight.

Standard Features

  • 6 x 8V Trojan T875 Deep Cycle Batteries
  • 48v Delta Q DC On-Board Charger
  • AC Motor
  • Single Seater
  • 2 Wheel Hydraulic Drum; Intellibrake Park Brake
  • Tiller Bar Steering
  • Brake Light
  • LED Headlight
  • Horn and Reverse Beeper
  • Integrated State of Charge Meter, Hour Meter, & Speedometer
  • Operator Presence Switch
  • Welded Steel with DuraShield coating Frame & Body
  • Body Finish painted Diamond pattern


  • EE Certification
  • Clevis or Pintle Hitch
  • Front Hydraulic Brake
  • Solid Non-marking Tires
  • Maintenance Free Gel Batteries
  • BFS Battery Filling System
  • Tow Hitch and 50 mm Tow Ball



Overall Length: 193 cm
Overall Width: 88 cm
Overall Height : 94 cm
Wheel Base: 133 cm
Front Wheel Track: N/A
Rear Wheel Track: 75 cm
Cargo Deck Capacity: 53.3 cm x 85.1 cm
Cargo Box Material: HIP Board


Power Source: 48 Volts DC
Motor: AC Induction
Horsepower: 6.7 hp ( 5 kW) Continuous
Electric System: 48 Volt
Battery (qty/type): Six, 8 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48 V DC On-Board, 1000 Watt
Speed Controller: 350 Amp AC Programmable. SRO Capable
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Key Switch
Rear Axle Ratio: 17.05:1


Seating Capacity: 1 Person
Dry Weight (without battery): 230 Kg
Curb Weight: 425 Kg
Vehicle Load Capacity: 295 Kg
Towing Capacity: 3629 Kg
Outside Clearance Circle: 2.8 m
Speed (level ground):  12.6 kph ± 0.8 kph

Steering & Suspension

Steering: Handlebar
Front Suspension: Torsion Block
Rear Suspension:  Coil Over Shock
Service Brake: 2 Wheel Hydraulic Drum
Parking Brake: Automatic Electronic Parking Brake
Tyres: USA Trail 4.8 x 8 ( load Range B)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Body & Finish: 4 Way Embossed Diamond Pattern
Standard Colour: Safety Yellow
Optional Colour: Flame Red, Hunter Green, Arctic White
Available Seat Colours: Grey
