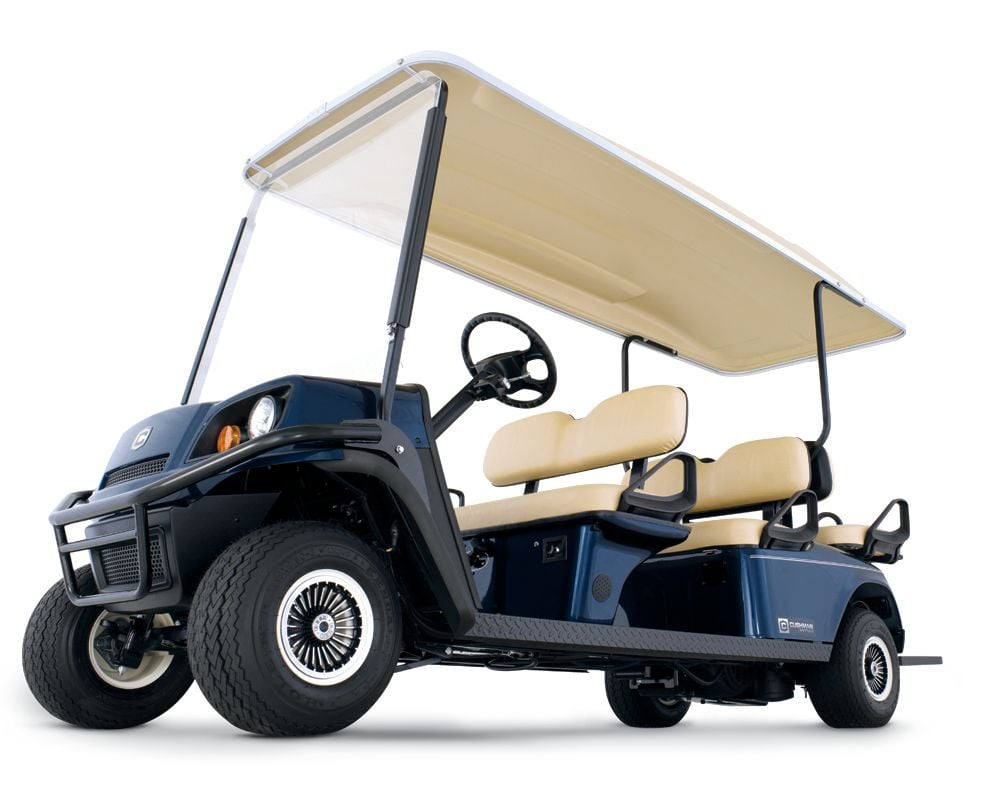

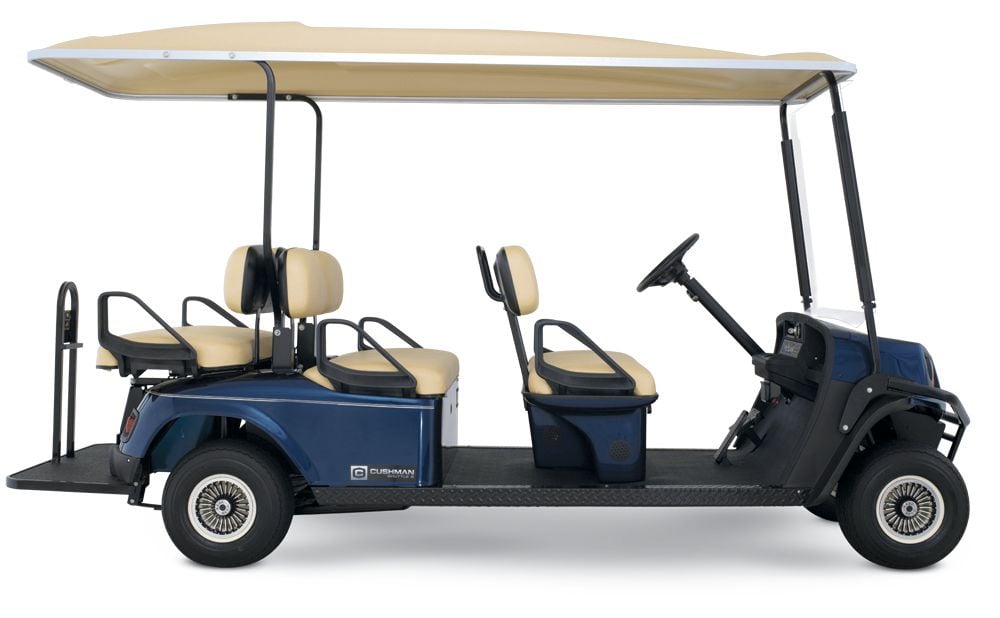

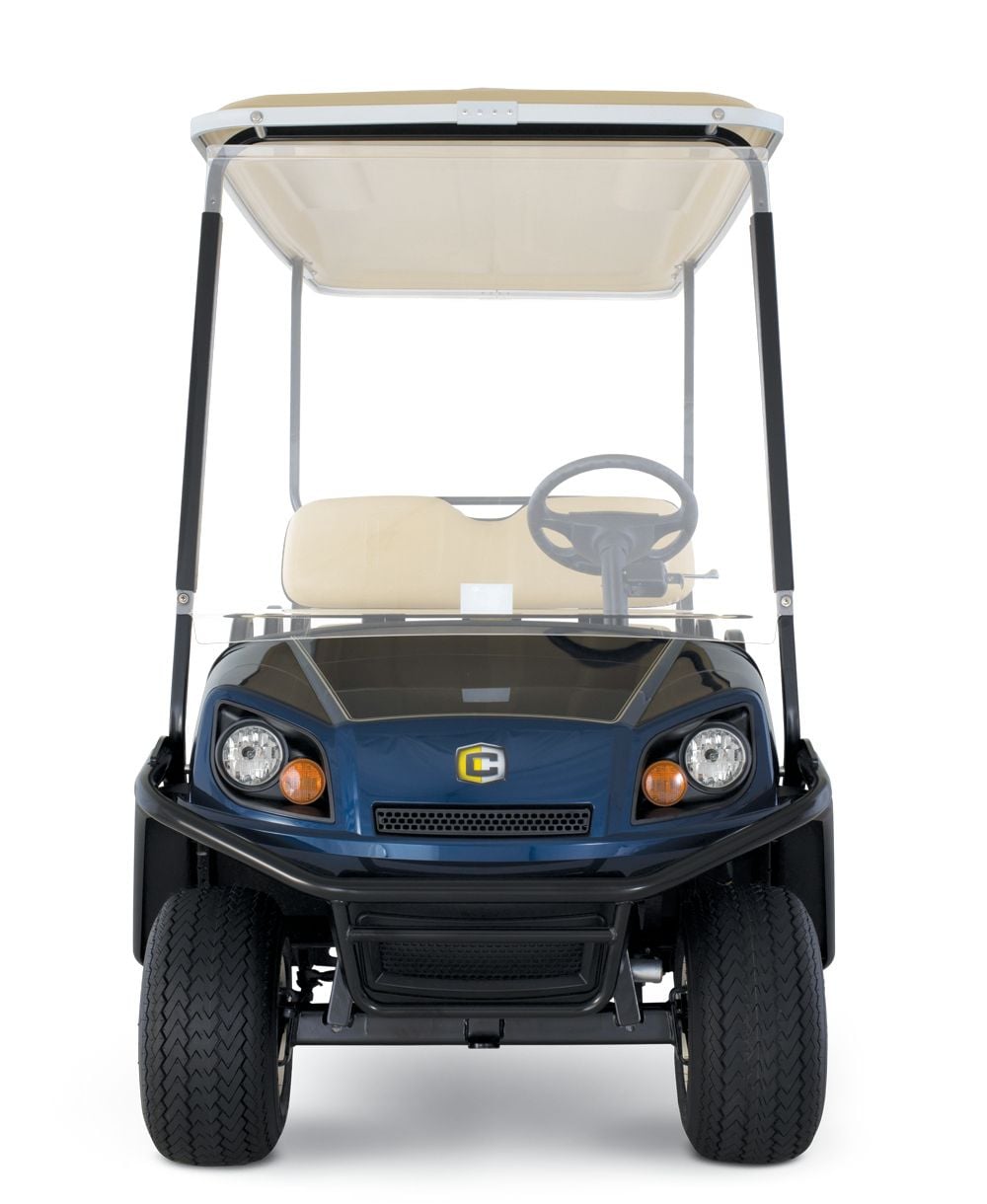

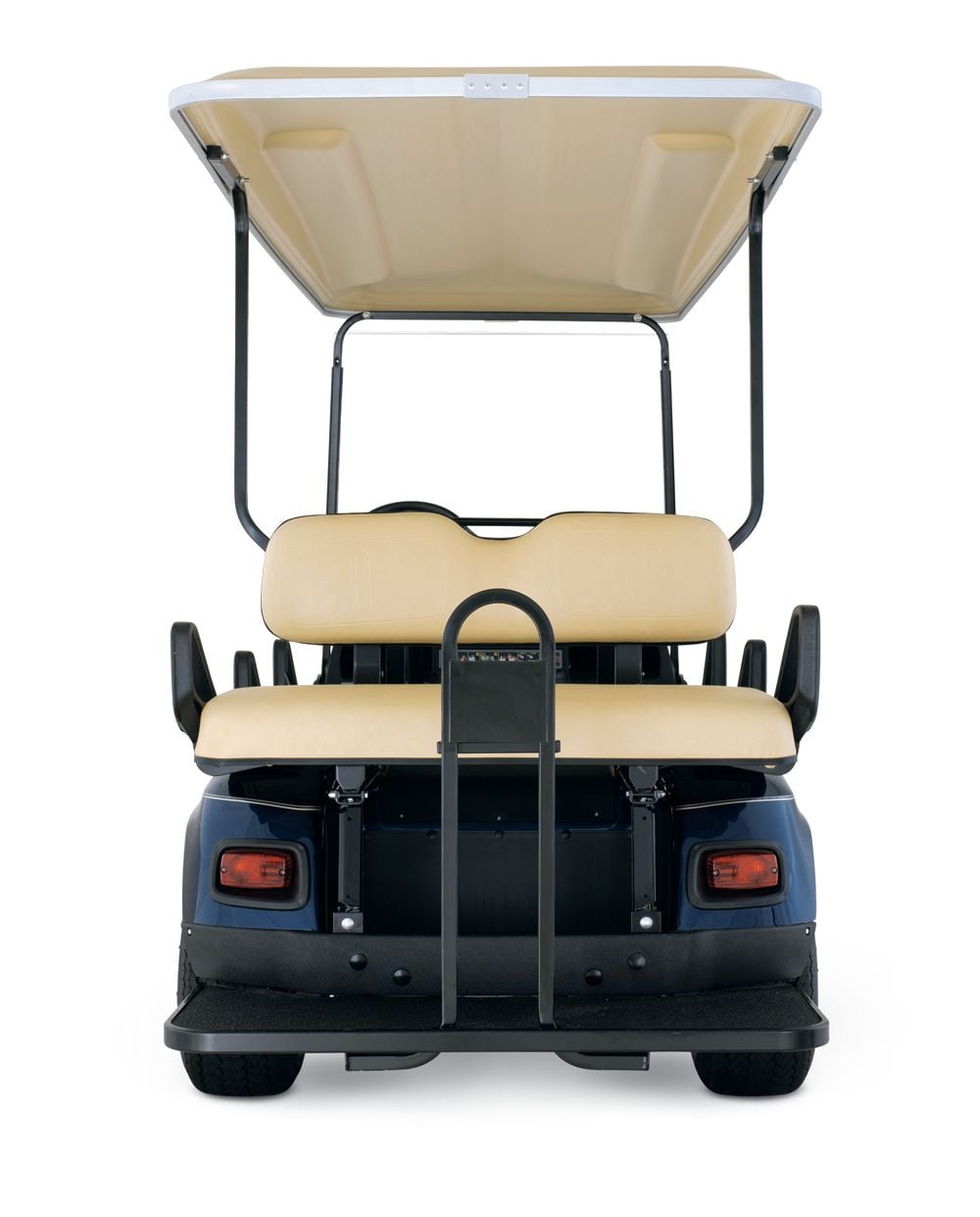

Shuttle 6 - 90 Amp ELiTE Lithium

Take your people-moving power to the next level with the six-passenger Shuttle 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.

Standard Features

  • 1 x Samsung Lithium Ion 90 amp Maintenance Free Battery Pack Including Battery Management System
  • Extended Top Assembly ( Black, Tan or Oyster)
  • Battery Charger
  • State of Charge Meter
  • Tail & Brake Lights,
  • Turn Signals
  • Hour Meter
  • DC Converter
  • Front Hydraulic Disc Brakes
  • Loadstar K399 Tyres 18x8.50 - 8 (Load Range C)
  • Limited Slip Differential
  • Unique Group Key Switch
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • Split Windshield
  • Rabbit/ Turtle Speed Switch
  • Round Convex Mirror
  • Front Bumper/Brush Guard
  • Dual USB Port
  • High Output LED Headlights
  • Horn and Reverse Beeper
  • Rear View Mirrors
  • Choice of Colour

Options/Accessories

  • Steel Rear Tray
  • Lockable Glove Box
  • All Weather Enclosures
  • Retractable Seatbelts
  • High Output LED Headlights
  • Rotating Strobe Light

Specifications

Dimensions

Overall Length: 345 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm
Front Wheel Track: 87 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm



Power

Powertrain: 56 Volts AC
Horsepower: 13.1 HP (9.8) kW Peak
Electric System: 56 Volt
Battery (qty/type): 3 Lithium Ion Packs (90 Amp)
Key or Pedal Start: Pedal Start
Battery Charger: 56VDC, 120/230 VAC, UL/CSA, CE
Speed Controller: 300 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1



Performance


Seating Capacity: 6 Person
Dry Weight (without battery): 437 Kg
Curb Weight: 483 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground):  24 kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 18 - 8.5 - 8 (4 Ply Rated)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded TPO
Standard Colour: Ivory
Optional Colour: Almond, Black, Electric Blue, Flame Red, Patriot Blue, White, Safety Yellow, Forest Green, Platinum, Metallic Charcoal, Sunburst Orange
Available Seat Colours: Tan, Oyster, Grey
