Hauler 1200X - 13.5 hp Petrol.

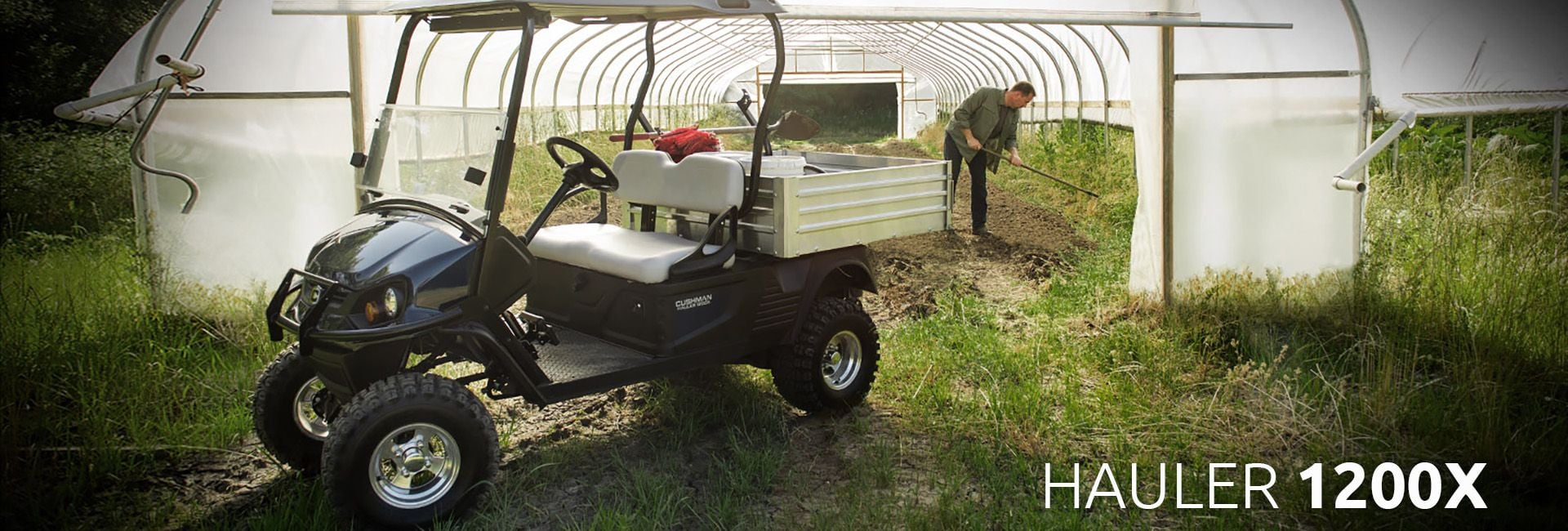

The Hauler® 1200X never backs down from a challenge. Armed with rugged tires, a lifted suspension and a dependable Kawasaki gas engine, it can take large loads of cargo wherever you need them.

Standard Features

  • Kawasaki 13hp Single Cylinder Engine
  • Black Top Assembly & Grey Seating
  • LED Headlights, Tail & Brake Lights
  • Turn Signals
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • Low Fuel/Oil Gauge
  • Hour Meter
  • Front Black Bumper/ Brush Guard
  • Unique Key Switch
  • Fender Flare
  • Rear Hitch Receiver
  • Limited Slip Differential with Diff Guard
  • 12-Volt Outlet
  • Split Windshield
  • Horn and Reverse Beeper
  • K 500 20x 8- 10 (6 Ply) Wheels
  • Comfort Grip Steering Wheel
  • Plastic Bed or Alluminium Tray with Manual Gas Assisted Lift
  • Raised Suspension
  • Choice of Colours

Options/Accessories

  • Bed Dividers
  • Long-Handled Tool Holder
  • Cargo Mesh Netting
  • Flexible Tool Clamps
  • L-Track Aluminum Bed System
  • Tie Down D-Loops
  • USB Outlet
  • Canopy Storage Net
  • ROPS-Certified Ball Cage
  • All Weather Enclosure
  • Rearview Mirror
  • ROPS-Certified Cab
  • Ladder/Hoop Rack
  • Electric Bed Lift Upgrade
  • Tow Hitch and 50 mm Tow Ball

Specifications

Dimensions

Overall Length: 302.3 cm
Overall Width: 125.5 cm
Overall Height (with canopy): 195.6 cm
Wheel Base: 196.9 cm
Front Wheel Track: 96.5 cm
Rear Wheel Track: 97.8 cm
Ground Clearance (at differential): 17.8 cm
Cargo Box Capacity: 12 Cu ft (0.34m³)


Power

Powertrain: 4-Cycle 24.5 ci(401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower:  13.5 (10.1 kW) Exceeds JAEJ1940 Standard
Electric System: Starter/Generator. Solid-State Regulator
Battery (qty/type): One, Maintenance Free 12 V
Key or Pedal Start: Pedal Start
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22.7 Litre
Drive Train: Continously Variable Transmission (CVT)
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.42:1 (Forward) 15.78:1 ( Reverse)


Performance


Seating Capacity: 2 Person
Curb Weight: 455 Kg
Vehicle Load Capacity: 408 Kg
Bed Load Capacity: 227 Kg
Towing Capacity: 544 Kg
Outside Clearance Circle: 7.2 m
Speed (level ground):  26.5 kph kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 20 x 8 - 10

Body & Chassis

Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Patriot Blue
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Forest Green, White
Available Seat Colours: Grey


Download Owners Manual
