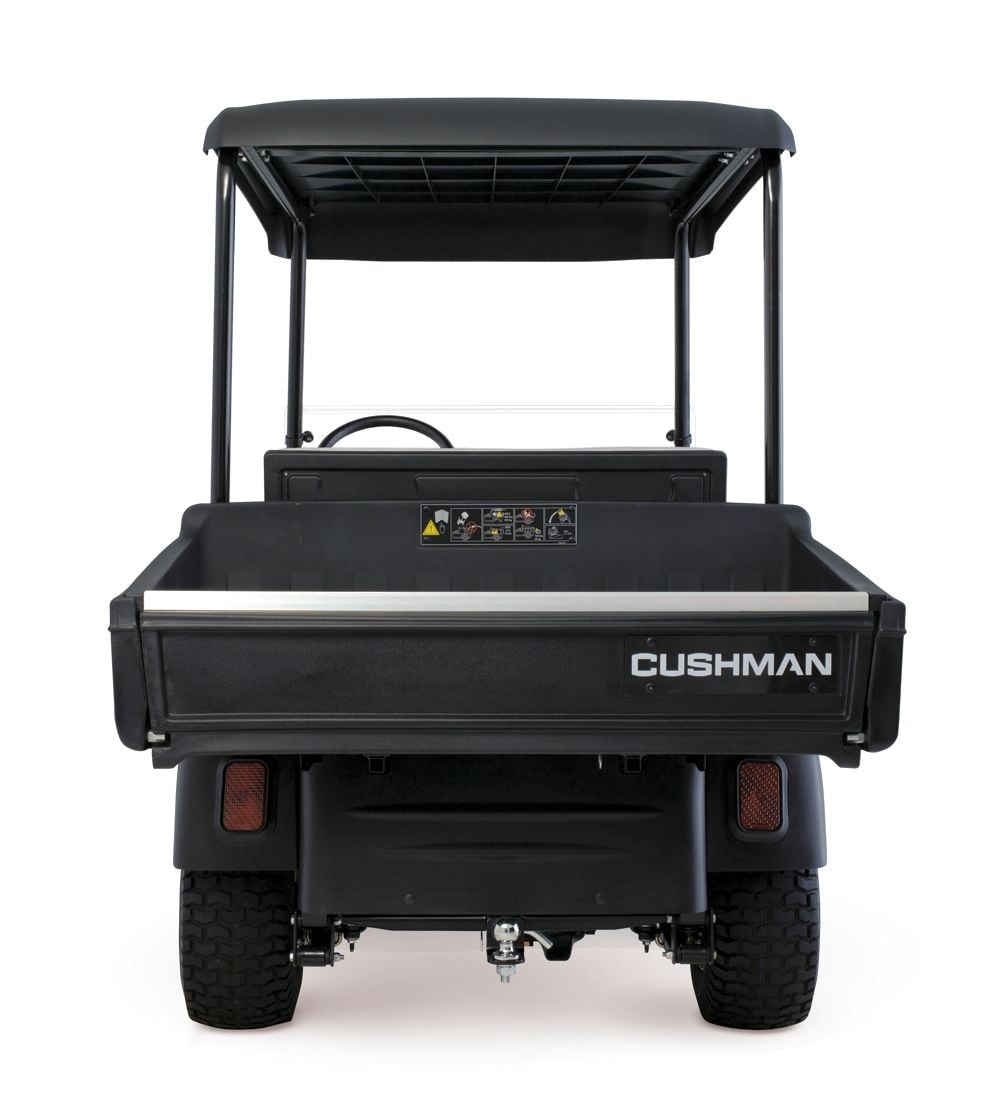

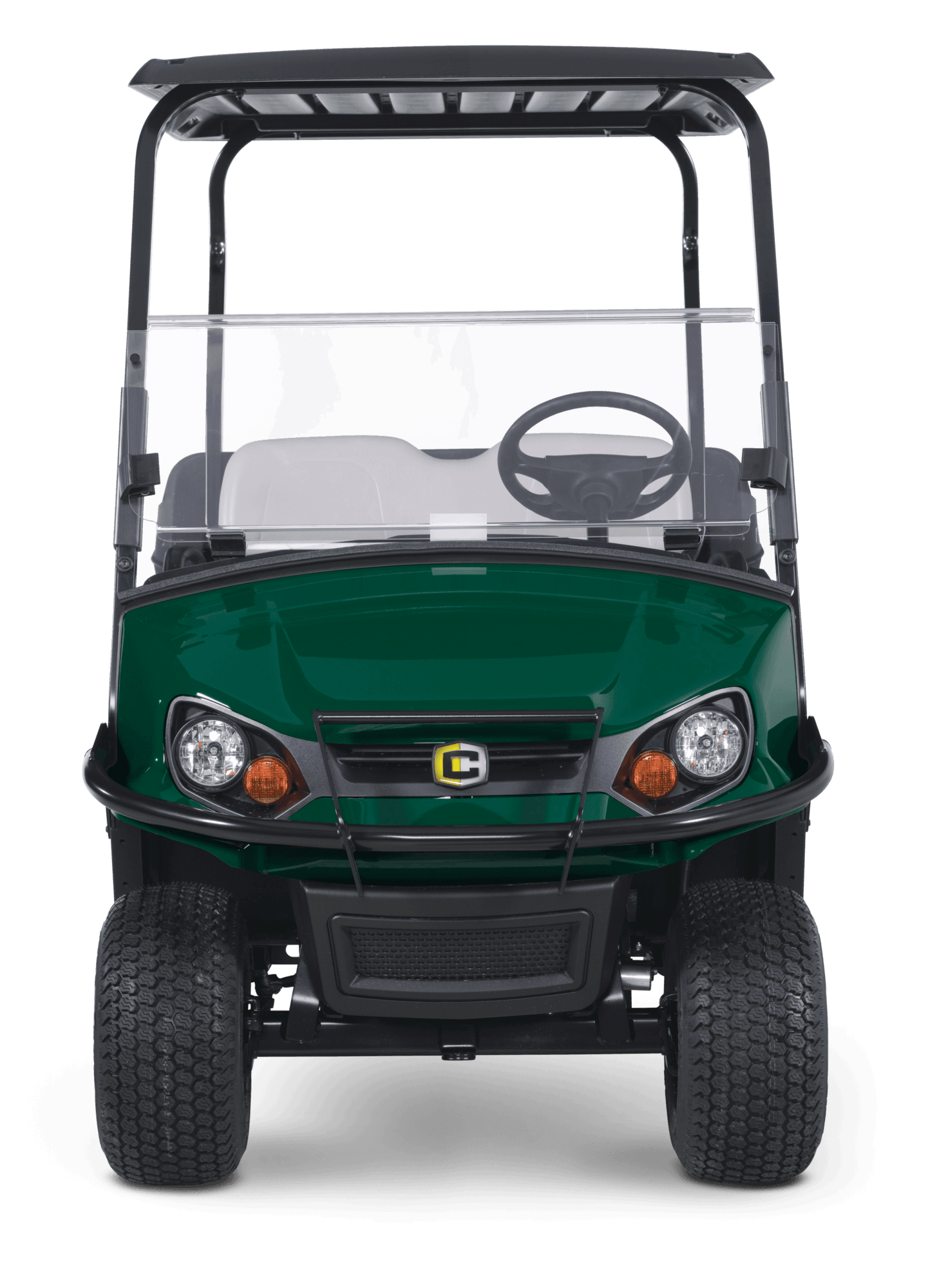

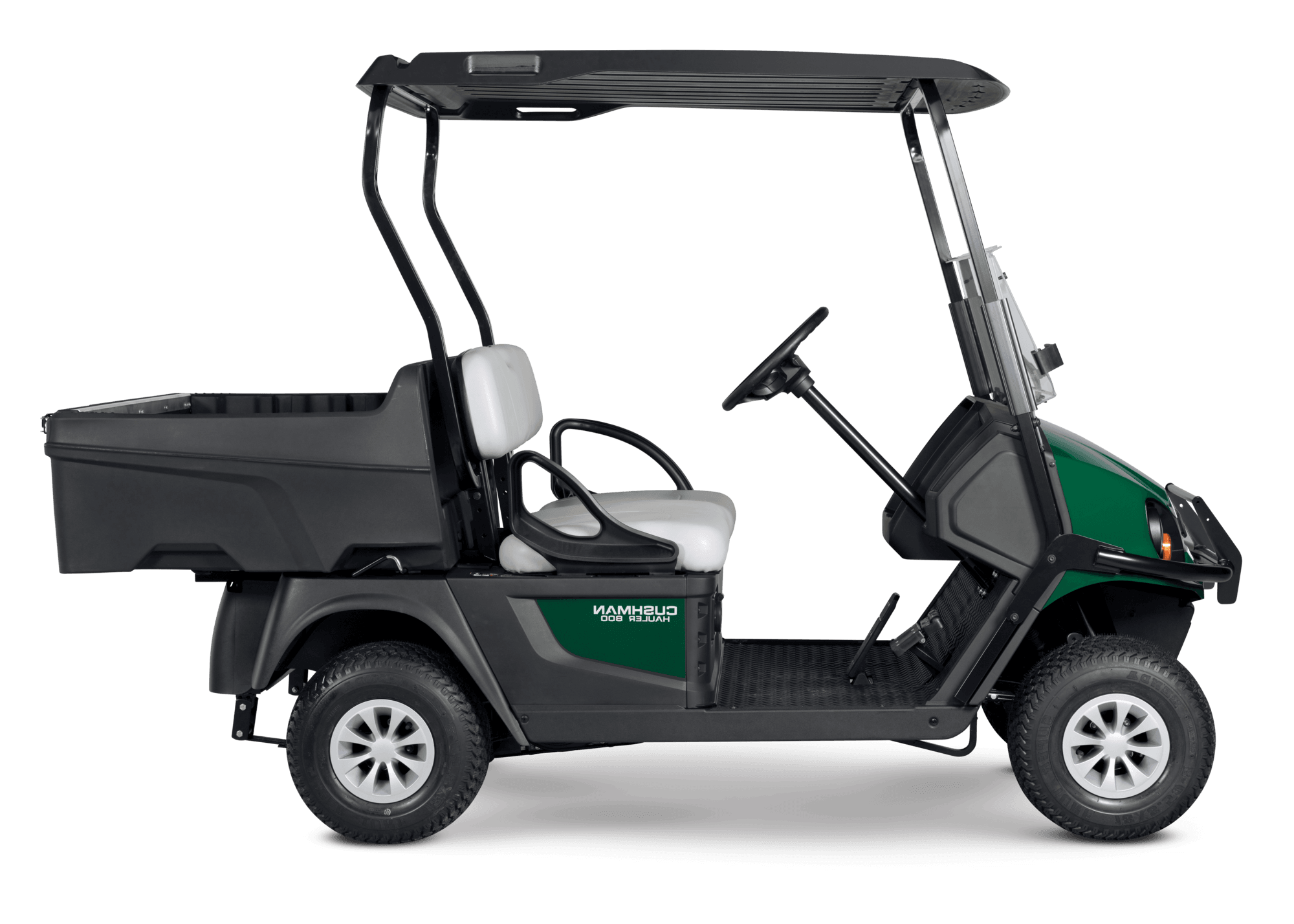

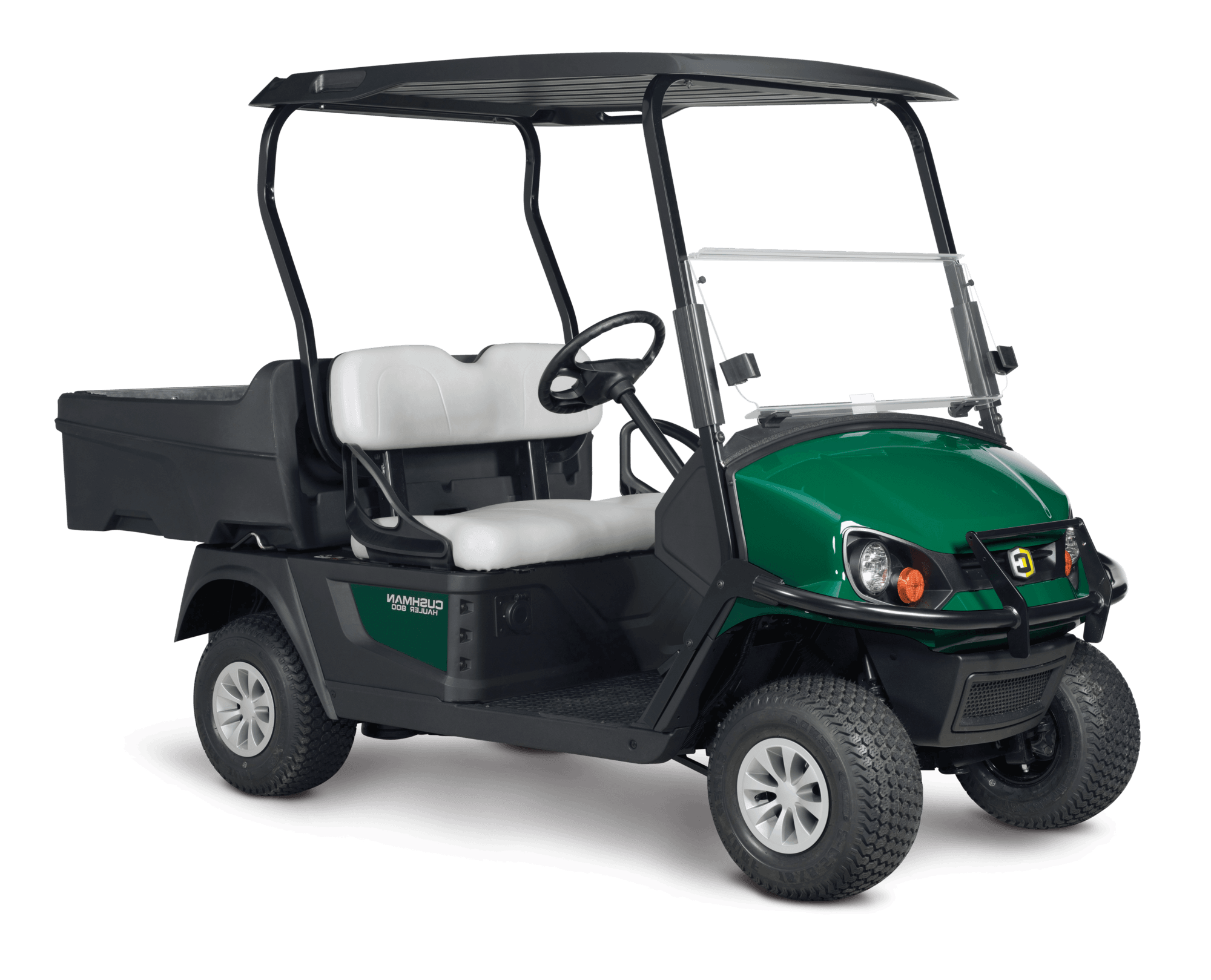

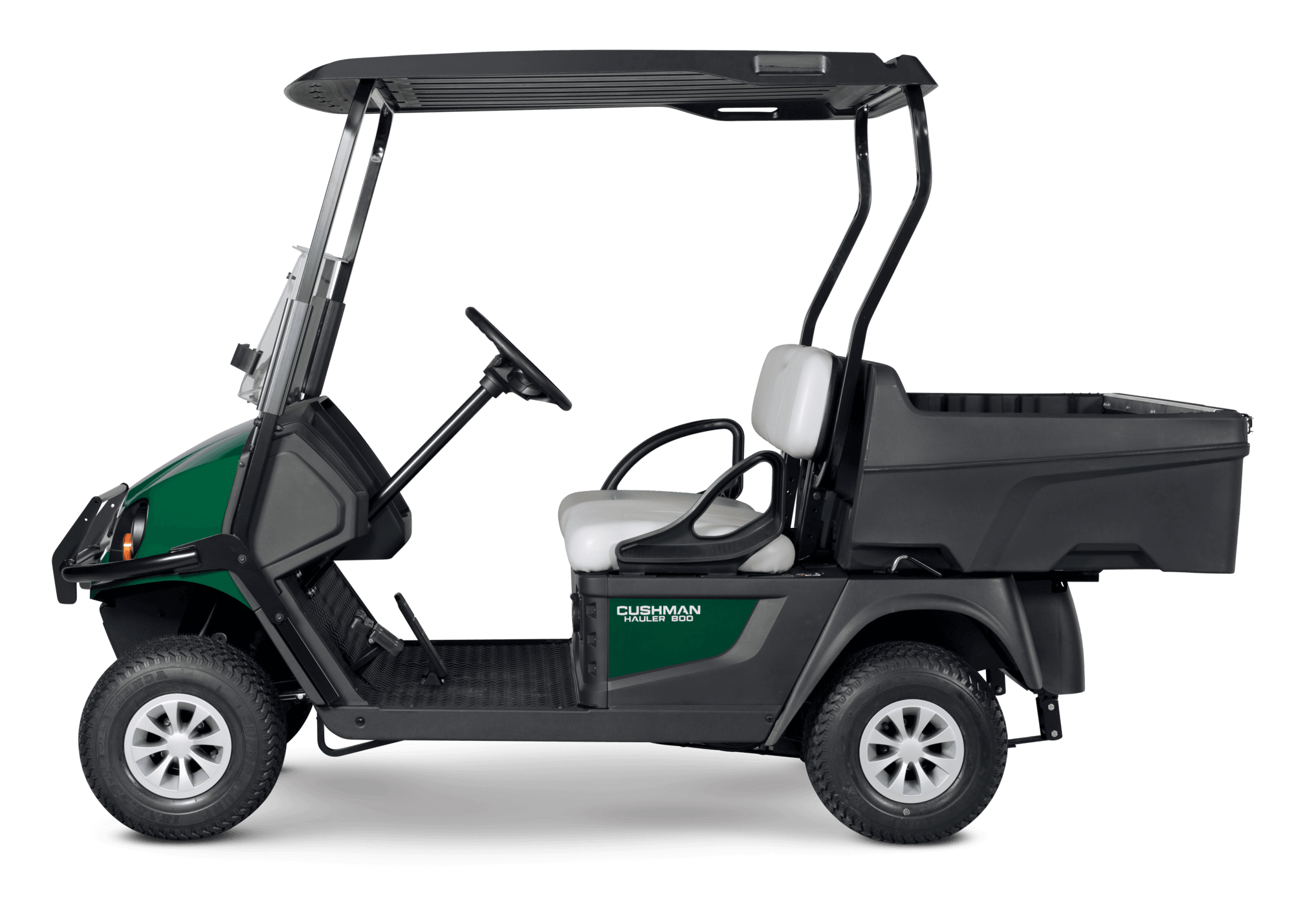

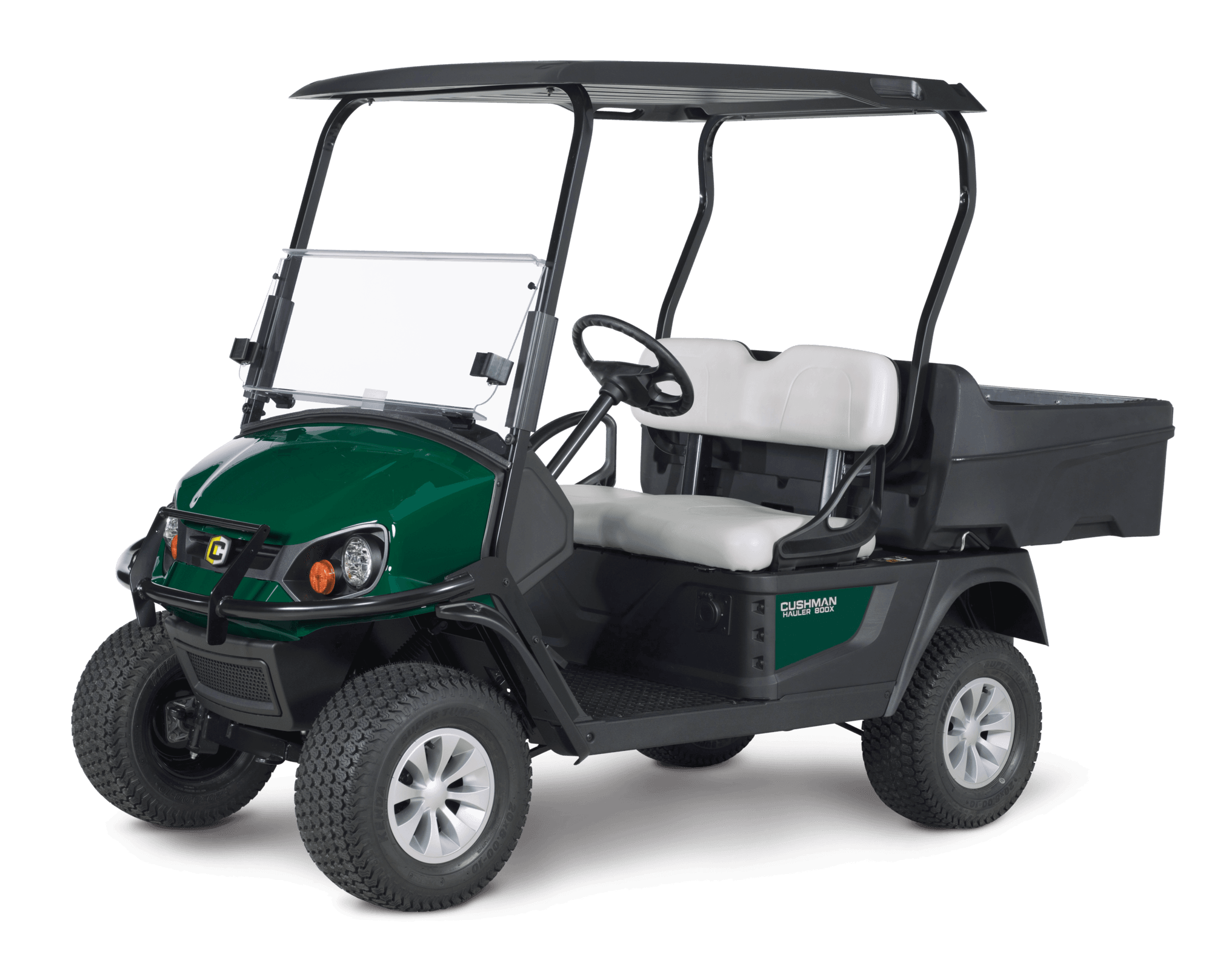

Hauler 800 X ELiTE - 56v AC Electric

With faster charge time, consistent performance, increased range and a lightweight footprint, Hauler 800 ELiTE vehicles are designed to maximize productivity and decrease energy costs. A highly customizable bed, functional dash and a range of options make Hauler 800 ELiTE vehicles a must have for your crew.

Standard Features

  • 1 x Samsung Lithium Ion 90amp Maintenance Free Battery Pack with Battery Management System
  • 48v Delta Q Lightweight DC Portable Charger
  • Intelli Brake System
  • Black Top Assembly & Grey Seating
  • Head Tail & Brake Lights
  • Turn Signals
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • State of Charge Meter
  • Hour Meter
  • DC Converter
  • Front Black Bumper/ Brush Guard
  • Unique Key Switch
  • Fender Flare
  • Rear Hitch Receiver
  • Limited Slip Differential with Di Guard
  • 12-Volt Outlet
  • Split Windshield
  • Horn and Reverse Beeper
  • K 500 20x 8- 10 (6 Ply) Wheels
  • Raised Suspension
  • Comfort Grip Steering Wheel
  • AC Motor
  • Plastic Bed with Manual Gas Assisted Lift
  • Metallic Hubcaps ( Gold or Silver)
  • Choice of Colours

Options/Accessories

  • Improved Surface Tyres
  • On-board Charger
  • LED Headlights with High/Low Beam
  • ROPS-Certified Cab
  • Bed Dividers
  • Long-Handled Tool Holder
  • Cargo Mesh Netting
  • All Weather Enclosure
  • USB Outlet
  • Canopy Storage Net
  • Rearview Mirror
  • Electric Bed Lift Upgrade
  • Tow Hitch and 50 mm Tow Ball

Specifications

Dimensions

Overall Length: 280 cm
Overall Width: 125 cm
Overall Height (No Canopy) 130 cm
Wheel Base: 166 cm
Front Wheel Track: 94 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 14 cm
Cargo Box Capacity: 8.4 Cu ft (0.24m³)
Cargo Box Material: Roto-Moulded Polyethylene
Cargo Deck Dimmensions: 113 cm x 72 cm x 30.5 cm


Power

Powertrain: 56 Volts AC
Horsepower: 11.7 HP ( 8.7 kW) Peak
Electric System: 48 Volt
Battery (qty/type): 1 x Samsung 90 AH Lithium Ion
Key or Pedal Start: Pedal Start
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 16.99:1



Performance


Seating Capacity: 2 Person
Curb Weight: 361 Kg
Vehicle Load Capacity: 328 Kg
Bed Load Capacity: 147Kg
Towing Capacity: 230 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground):  23.3 kph kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 20 - 8 - 10 (6 Ply Rated)

Body & Chassis

Frame: Welded steel with E-Shield e-coat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Forest Green
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Patriot Blue, White
Available Seat Colours: Grey
